SDO HMI 2014-09-07 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.97 | 38.06 | 10.17 | 35.20 | -20.53 | 79.74 | -51.36 | 119.98 | 0.8463 | 38.4 | -18.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

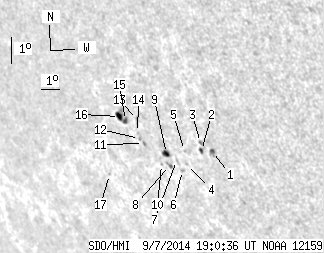

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 3.66 | 1.01 | 3.18 | -20.61 | 82.58 | -48.52 | 121.37 | 0.8234 | 684.8 | 518.2 | |
| 1.16 | 2.23 | 1.02 | 1.96 | -20.63 | 82.03 | -49.07 | 121.13 | 0.8281 | 288.5 | 267.3 | |
| 0.00 | 1.60 | 0.00 | 1.40 | -20.36 | 82.10 | -49.00 | 120.86 | 0.8264 | 609.0 | 509.3 | |
| 0.00 | 0.80 | 0.00 | 0.73 | -21.20 | 81.07 | -50.03 | 121.30 | 0.8383 | 456.0 | 442.3 | |
| 0.00 | 0.71 | 0.00 | 0.64 | -20.72 | 81.14 | -49.96 | 120.81 | 0.8358 | 419.0 | 383.0 | |
| 0.00 | 1.43 | 0.00 | 1.30 | -21.44 | 80.70 | -50.40 | 121.39 | 0.8422 | 463.0 | 363.4 | |
| 0.00 | 1.07 | 0.00 | 0.98 | -21.12 | 80.55 | -50.55 | 120.97 | 0.8422 | 537.0 | 431.4 | |
| 0.00 | 2.32 | 0.00 | 2.14 | -21.34 | 80.08 | -51.02 | 120.99 | 0.8467 | 596.0 | 529.0 | |
| 3.30 | 4.81 | 3.04 | 4.43 | -20.93 | 80.13 | -50.97 | 120.57 | 0.8448 | 462.8 | 229.3 | |
| 0.00 | 0.71 | 0.00 | 0.67 | -21.35 | 79.66 | -51.44 | 120.81 | 0.8501 | 326.0 | 272.5 | |
| 0.00 | 1.43 | 0.00 | 1.34 | -20.70 | 79.03 | -52.07 | 119.84 | 0.8527 | -693.0 | -614.2 | |
| 0.00 | 1.60 | 0.00 | 1.51 | -20.55 | 78.90 | -52.20 | 119.62 | 0.8532 | -635.0 | -602.8 | |
| 0.00 | 3.12 | 0.00 | 2.91 | -19.89 | 79.11 | -51.99 | 118.99 | 0.8492 | -596.0 | -514.1 | |
| 0.00 | 0.89 | 0.00 | 0.84 | -20.35 | 78.89 | -52.21 | 119.40 | 0.8525 | -576.0 | -494.1 | |
| 1.52 | 10.79 | 1.44 | 10.26 | -20.00 | 78.42 | -52.68 | 118.82 | 0.8550 | -640.2 | -431.4 | |
| 3.83 | -15.00 | 3.66 | -15.00 | -19.89 | 78.15 | -52.95 | 118.59 | 0.8567 | -481.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.91 | -22.02 | 76.47 | -54.63 | 120.19 | 0.8764 | 238.0 | 241.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
