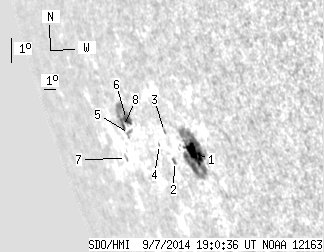

SDO HMI 2014-09-07 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.77 | 106.65 | 37.98 | 157.98 | -16.50 | 64.13 | -66.97 | 110.48 | 0.9424 | 185.0 | 15.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.10 | 72.58 | 24.52 | 98.67 | -16.58 | 66.08 | -65.02 | 111.04 | 0.9323 | 548.8 | 82.2 | |
| 0.00 | 2.23 | 0.00 | 3.30 | -17.07 | 64.18 | -66.92 | 111.05 | 0.9437 | 158.0 | 64.0 | |
| 0.00 | 1.43 | 0.00 | 2.10 | -16.11 | 64.05 | -67.05 | 110.03 | 0.9431 | 75.0 | 102.1 | |
| 0.00 | 0.62 | 0.00 | 0.96 | -16.63 | 63.26 | -67.84 | 110.37 | 0.9480 | 78.0 | -7.3 | |
| 0.00 | 3.66 | 0.00 | 6.45 | -16.59 | 60.59 | -70.51 | 109.71 | 0.9609 | -481.0 | -365.2 | |
| 6.33 | 23.99 | 11.05 | 42.42 | -16.13 | 60.70 | -70.40 | 109.26 | 0.9599 | -481.0 | -77.9 | |
| 0.00 | 2.14 | 0.00 | 4.08 | -17.55 | 59.42 | -71.67 | 110.42 | 0.9669 | -40.0 | -26.6 | |
| 1.34 | -6.00 | 2.41 | -6.00 | -16.42 | 60.16 | -70.94 | 109.44 | 0.9626 | 8.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
