SDO HMI 2014-09-07 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.35 | 1012.54 | 124.02 | 692.63 | 15.02 | 86.77 | -43.77 | 75.77 | 0.6917 | 226.9 | -69.6 | |
|
previous
or next observation for the same group /

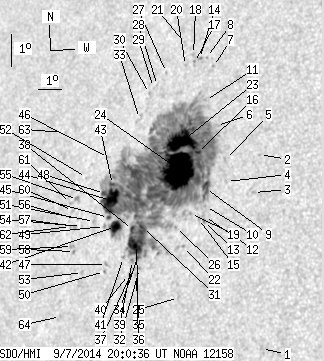

back to the solar disc SDO HMI 2014-09-07 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 1.07 | 10.42 | 91.96 | -38.59 | 82.36 | 0.6212 | -663.0 | -503.0 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 16.26 | 90.75 | -39.79 | 73.27 | 0.6438 | -661.0 | -536.5 | |
| 0.00 | 1.52 | 0.00 | 0.98 | 15.09 | 90.78 | -39.77 | 75.08 | 0.6414 | -945.0 | -724.4 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 15.34 | 89.61 | -40.93 | 74.91 | 0.6567 | 167.0 | 145.0 | |
| 0.00 | 1.96 | 0.00 | 1.29 | 16.00 | 89.41 | -41.14 | 73.94 | 0.6604 | 423.0 | 438.9 | |
| 0.00 | 2.14 | 0.00 | 1.42 | 17.00 | 88.77 | -41.78 | 72.58 | 0.6701 | 504.0 | 445.5 | |
| 0.00 | 1.16 | 0.00 | 0.78 | 18.78 | 88.12 | -42.42 | 70.11 | 0.6815 | -480.0 | -350.8 | |
| 0.00 | 0.71 | 0.00 | 0.48 | 19.03 | 87.74 | -42.81 | 69.84 | 0.6867 | 707.0 | 605.5 | |
| 7.13 | 943.02 | 4.73 | 644.62 | 15.06 | 88.80 | -41.75 | 75.46 | 0.6665 | 795.0 | -66.8 | |
| 0.00 | 1.07 | 0.00 | 0.71 | 14.51 | 88.93 | -41.62 | 76.26 | 0.6642 | 375.0 | 393.0 | |
| 0.00 | 0.98 | 0.00 | 0.66 | 17.72 | 88.09 | -42.45 | 71.66 | 0.6797 | 388.0 | 377.0 | |
| 0.00 | 1.43 | 0.00 | 0.94 | 14.21 | 88.95 | -41.59 | 76.71 | 0.6635 | 362.0 | 347.5 | |
| 0.00 | 1.16 | 0.00 | 0.77 | 14.06 | 88.95 | -41.60 | 76.94 | 0.6634 | 620.0 | 509.1 | |
| 0.00 | 2.05 | 0.00 | 1.40 | 18.97 | 87.45 | -43.10 | 69.99 | 0.6900 | 872.0 | 713.9 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 14.13 | 88.72 | -41.82 | 76.86 | 0.6664 | 313.0 | 157.4 | |
| 1.43 | -9.00 | 0.96 | -9.00 | 16.12 | 88.20 | -42.35 | 73.99 | 0.6756 | 1288.3 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.28 | 18.83 | 87.27 | -43.27 | 70.23 | 0.6917 | 651.0 | 651.0 | |
| 0.00 | 1.60 | 0.00 | 1.10 | 19.07 | 87.15 | -43.39 | 69.91 | 0.6937 | 629.0 | 556.9 | |
| 0.00 | 1.16 | 0.00 | 0.77 | 14.25 | 88.36 | -42.19 | 76.72 | 0.6711 | 427.0 | 342.4 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 18.71 | 86.92 | -43.63 | 70.48 | 0.6957 | 676.0 | 530.8 | |
| 0.00 | 1.25 | 0.00 | 0.86 | 19.41 | 86.64 | -43.90 | 69.56 | 0.7003 | 491.0 | 425.3 | |
| 0.00 | 1.16 | 0.00 | 0.77 | 13.24 | 88.29 | -42.26 | 78.25 | 0.6709 | 566.0 | 491.5 | |
| 37.18 | -9.00 | 25.23 | -9.00 | 16.39 | 87.43 | -43.11 | 73.71 | 0.6854 | 1029.7 | 999999 | |
| 69.55 | -9.00 | 47.01 | -9.00 | 15.51 | 87.58 | -42.96 | 74.98 | 0.6823 | 1231.4 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.13 | 11.69 | 88.39 | -42.16 | 80.56 | 0.6686 | -716.0 | -597.4 | |
| 0.00 | 1.16 | 0.00 | 0.78 | 13.78 | 87.83 | -42.72 | 77.49 | 0.6772 | 409.0 | 306.8 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 18.43 | 86.16 | -44.38 | 71.04 | 0.7040 | 509.0 | 445.9 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 18.00 | 85.90 | -44.65 | 71.69 | 0.7063 | 468.0 | 476.7 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 17.93 | 85.74 | -44.80 | 71.83 | 0.7080 | 386.0 | 433.5 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 17.73 | 85.63 | -44.92 | 72.12 | 0.7090 | 515.0 | 455.2 | |
| 2.41 | -9.00 | 1.65 | -9.00 | 13.66 | 86.44 | -44.11 | 77.80 | 0.6942 | -878.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.85 | 12.42 | 86.59 | -43.96 | 79.58 | 0.6916 | -663.0 | -583.4 | |
| 0.00 | 3.83 | 0.00 | 2.69 | 16.94 | 85.43 | -45.12 | 73.27 | 0.7101 | 610.0 | 382.5 | |
| 1.16 | -9.00 | 0.79 | -9.00 | 12.74 | 86.43 | -44.12 | 79.13 | 0.6937 | -888.7 | 999999 | |
| 18.99 | -9.00 | 13.06 | -9.00 | 13.13 | 86.30 | -44.24 | 78.58 | 0.6955 | -997.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.98 | 12.23 | 86.50 | -44.05 | 79.87 | 0.6926 | -726.0 | -617.4 | |
| 0.00 | 1.43 | 0.00 | 0.98 | 12.40 | 86.33 | -44.21 | 79.63 | 0.6947 | -703.0 | -611.0 | |
| 3.21 | -9.00 | 2.22 | -9.00 | 13.57 | 86.03 | -44.52 | 77.97 | 0.6992 | -961.9 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.23 | 12.63 | 86.24 | -44.31 | 79.30 | 0.6960 | -728.0 | -612.9 | |
| 0.00 | 1.60 | 0.00 | 1.10 | 12.20 | 86.16 | -44.39 | 79.93 | 0.6967 | -483.0 | -400.5 | |
| 0.00 | 1.52 | 0.00 | 1.05 | 12.69 | 85.83 | -44.71 | 79.24 | 0.7010 | -550.0 | -439.9 | |
| 9.36 | -9.00 | 6.55 | -9.00 | 13.59 | 85.27 | -45.27 | 78.00 | 0.7083 | -949.4 | 999999 | |
| 1.60 | -9.00 | 1.13 | -9.00 | 14.84 | 84.82 | -45.73 | 76.28 | 0.7148 | -693.7 | 999999 | |
| 25.32 | -9.00 | 17.85 | -9.00 | 14.35 | 84.86 | -45.69 | 76.96 | 0.7139 | -991.9 | 999999 | |
| 1.07 | -9.00 | 0.75 | -9.00 | 13.84 | 84.90 | -45.65 | 77.69 | 0.7130 | -861.3 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 15.64 | 84.41 | -46.14 | 75.22 | 0.7204 | -775.0 | -665.7 | |
| 0.00 | 1.78 | 0.00 | 1.25 | 12.42 | 85.15 | -45.40 | 79.67 | 0.7091 | -599.0 | -470.0 | |
| 2.94 | -9.00 | 2.09 | -9.00 | 14.54 | 84.54 | -46.01 | 76.73 | 0.7178 | -557.9 | 999999 | |
| 0.00 | 1.60 | 0.00 | 1.13 | 13.55 | 84.79 | -45.75 | 78.10 | 0.7140 | -486.0 | -418.4 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 12.20 | 85.11 | -45.44 | 79.98 | 0.7095 | -328.0 | -341.1 | |
| 0.00 | 1.69 | 0.00 | 1.21 | 13.66 | 84.32 | -46.23 | 77.98 | 0.7198 | -304.0 | -328.8 | |
| 0.00 | 1.07 | 0.00 | 0.77 | 14.95 | 83.60 | -46.94 | 76.26 | 0.7290 | -514.0 | -363.0 | |
| 0.00 | 1.69 | 0.00 | 1.21 | 12.09 | 84.15 | -46.40 | 80.18 | 0.7209 | -633.0 | -543.4 | |
| 0.00 | 0.45 | 0.00 | 0.32 | 13.46 | 83.78 | -46.77 | 78.29 | 0.7259 | -668.0 | -632.0 | |
| 0.00 | 3.30 | 0.00 | 2.39 | 14.26 | 83.38 | -47.16 | 77.23 | 0.7310 | -649.0 | -459.7 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 13.65 | 83.54 | -47.00 | 78.04 | 0.7288 | -472.0 | -393.1 | |
| 0.00 | 1.60 | 0.00 | 1.16 | 13.44 | 83.51 | -47.04 | 78.34 | 0.7291 | -560.0 | -481.5 | |
| 0.00 | 1.16 | 0.00 | 0.83 | 12.68 | 83.65 | -46.90 | 79.37 | 0.7270 | -556.0 | -555.5 | |
| 0.00 | 2.41 | 0.00 | 1.74 | 12.82 | 83.52 | -47.02 | 79.18 | 0.7286 | -560.0 | -468.8 | |
| 0.00 | 1.52 | 0.00 | 1.10 | 13.90 | 83.25 | -47.30 | 77.72 | 0.7324 | -459.0 | -351.1 | |
| 0.00 | 1.16 | 0.00 | 0.84 | 14.11 | 83.10 | -47.44 | 77.45 | 0.7342 | -317.0 | -250.8 | |
| 0.00 | 0.98 | 0.00 | 0.71 | 13.42 | 83.29 | -47.26 | 78.39 | 0.7317 | -360.0 | -345.2 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 16.22 | 82.24 | -48.31 | 74.68 | 0.7458 | -349.0 | -298.1 | |
| 0.00 | 1.34 | 0.00 | 0.96 | 10.68 | 83.46 | -47.09 | 82.14 | 0.7289 | -481.0 | -429.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
