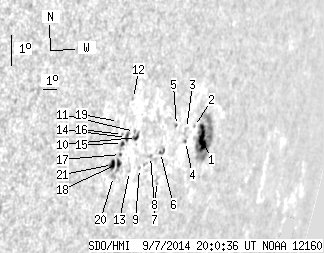

SDO HMI 2014-09-07 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.25 | 95.67 | 25.11 | 121.94 | -9.38 | 195.73 | 65.18 | 256.55 | 0.9216 | 83.3 | 30.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.70 | 54.21 | 14.63 | 74.55 | -9.45 | 197.52 | 66.97 | 256.88 | 0.9337 | 527.5 | 44.3 | |
| 0.00 | 0.98 | 0.00 | 1.29 | -8.95 | 196.70 | 66.16 | 257.23 | 0.9280 | 528.0 | 464.4 | |
| 0.00 | 1.87 | 0.00 | 2.40 | -8.94 | 196.10 | 65.55 | 257.11 | 0.9241 | 397.0 | 367.7 | |
| 0.00 | 1.43 | 0.00 | 1.84 | -9.35 | 196.17 | 65.62 | 256.69 | 0.9252 | 504.0 | 499.5 | |
| 0.00 | 1.34 | 0.00 | 1.66 | -8.75 | 195.30 | 64.75 | 257.14 | 0.9186 | 282.0 | 297.8 | |
| 0.36 | 3.39 | 0.43 | 4.11 | -9.49 | 194.40 | 63.86 | 256.14 | 0.9137 | 596.0 | 360.2 | |
| 0.00 | 2.59 | 0.00 | 3.15 | -10.40 | 194.45 | 63.90 | 255.18 | 0.9154 | 614.0 | 451.8 | |
| 0.00 | 1.69 | 0.00 | 1.99 | -9.53 | 193.72 | 63.18 | 255.94 | 0.9090 | 581.0 | 511.5 | |
| 0.00 | 0.98 | 0.00 | 1.13 | -9.83 | 193.08 | 62.53 | 255.46 | 0.9050 | -246.0 | -167.6 | |
| 1.43 | 3.66 | 1.60 | 4.10 | -8.81 | 192.56 | 62.01 | 256.44 | 0.8995 | -235.1 | -167.7 | |
| 0.00 | 1.43 | 0.00 | 1.59 | -8.60 | 192.37 | 61.82 | 256.62 | 0.8977 | -265.0 | -249.4 | |
| 0.00 | 0.80 | 0.00 | 0.88 | -7.53 | 192.02 | 61.47 | 257.71 | 0.8933 | -478.0 | -403.1 | |
| 0.00 | 0.62 | 0.00 | 0.70 | -9.85 | 192.42 | 61.87 | 255.27 | 0.9002 | -166.0 | -171.4 | |
| 1.52 | 3.30 | 1.67 | 3.63 | -8.73 | 191.88 | 61.34 | 256.36 | 0.8943 | -448.4 | -340.0 | |
| 0.89 | 2.05 | 0.97 | 2.24 | -8.89 | 191.67 | 61.13 | 256.13 | 0.8930 | -620.2 | -484.8 | |
| 0.00 | 0.71 | 0.00 | 0.77 | -8.60 | 191.59 | 61.05 | 256.43 | 0.8919 | -562.0 | -427.0 | |
| 0.00 | 1.07 | 0.00 | 1.17 | -9.23 | 191.64 | 61.10 | 255.76 | 0.8934 | -639.0 | -543.3 | |
| 2.14 | 5.08 | 2.34 | 5.57 | -9.51 | 191.60 | 61.05 | 255.44 | 0.8935 | -439.8 | -312.4 | |
| 0.00 | 0.98 | 0.00 | 1.05 | -8.16 | 191.22 | 60.67 | 256.83 | 0.8882 | -431.0 | -387.7 | |
| 0.00 | 2.85 | 0.00 | 3.11 | -9.89 | 191.40 | 60.85 | 254.97 | 0.8927 | -109.0 | -114.9 | |
| 3.21 | 4.64 | 3.47 | 5.01 | -9.50 | 191.22 | 60.67 | 255.36 | 0.8906 | -715.6 | -549.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
