SDO HMI 2014-09-07 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 274.56 | 1028.29 | 178.56 | 670.20 | -13.87 | 95.28 | -34.71 | 121.60 | 0.6497 | -130.6 | -195.0 | |
|
previous
or next observation for the same group /

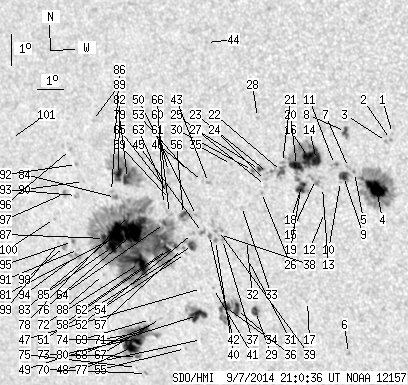

back to the solar disc SDO HMI 2014-09-07 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.47 | -10.18 | 103.36 | -26.64 | 122.99 | 0.5282 | 658.0 | 563.4 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -10.38 | 103.27 | -26.73 | 123.22 | 0.5308 | 809.0 | 639.3 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -10.45 | 103.12 | -26.87 | 123.19 | 0.5332 | 574.0 | 575.1 | |
| 25.23 | 107.36 | 14.96 | 63.64 | -11.97 | 102.62 | -27.37 | 125.05 | 0.5516 | 1289.7 | 416.4 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -11.51 | 101.90 | -28.09 | 123.65 | 0.5564 | 890.0 | 770.0 | |
| 0.00 | 1.69 | 0.00 | 1.06 | -17.44 | 100.84 | -29.15 | 130.90 | 0.6171 | -783.0 | -604.5 | |
| 0.00 | 2.41 | 0.00 | 1.43 | -11.36 | 101.71 | -28.28 | 123.24 | 0.5576 | 656.0 | 583.1 | |
| 2.59 | 5.53 | 1.53 | 3.27 | -10.22 | 101.72 | -28.27 | 121.48 | 0.5487 | -966.6 | -770.9 | |
| 5.44 | 9.54 | 3.25 | 5.70 | -11.66 | 101.50 | -28.49 | 123.50 | 0.5624 | 877.7 | 580.3 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -11.83 | 101.38 | -28.62 | 123.63 | 0.5652 | 208.0 | 269.3 | |
| 0.00 | 2.94 | 0.00 | 1.76 | -11.29 | 101.23 | -28.77 | 122.69 | 0.5629 | 829.0 | 728.8 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -12.86 | 100.68 | -29.31 | 124.51 | 0.5814 | 612.0 | 457.4 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -12.06 | 100.71 | -29.28 | 123.37 | 0.5749 | 475.0 | 415.4 | |
| 9.45 | 87.74 | 5.69 | 53.09 | -11.17 | 100.60 | -29.39 | 121.95 | 0.5695 | 1137.1 | 513.5 | |
| 0.00 | 6.51 | 0.00 | 3.94 | -11.82 | 100.49 | -29.50 | 122.81 | 0.5757 | 456.0 | 707.3 | |
| 14.71 | -14.00 | 8.87 | -14.00 | -11.13 | 100.33 | -29.67 | 121.63 | 0.5726 | 1080.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -15.81 | 99.63 | -30.36 | 127.64 | 0.6165 | -85.0 | -119.6 | |
| 2.32 | -14.00 | 1.41 | -14.00 | -12.01 | 100.01 | -29.99 | 122.66 | 0.5829 | 886.1 | 999999 | |
| 4.37 | -14.00 | 2.66 | -14.00 | -12.17 | 99.92 | -30.08 | 122.83 | 0.5852 | 737.8 | 999999 | |
| 9.36 | -14.00 | 5.68 | -14.00 | -11.41 | 99.87 | -30.13 | 121.66 | 0.5802 | 860.2 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.20 | -11.35 | 99.37 | -30.62 | 121.14 | 0.5857 | 577.0 | 458.6 | |
| 3.21 | 11.15 | 1.96 | 6.82 | -11.64 | 99.30 | -30.69 | 121.51 | 0.5886 | 683.6 | 364.4 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -11.71 | 98.79 | -31.20 | 121.18 | 0.5952 | 397.0 | 366.6 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -11.97 | 98.68 | -31.31 | 121.48 | 0.5983 | 353.0 | 236.8 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -12.13 | 98.66 | -31.33 | 121.69 | 0.5997 | 397.0 | 324.2 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -12.37 | 98.48 | -31.51 | 121.89 | 0.6035 | 462.0 | 377.0 | |
| 1.61 | 3.30 | 0.99 | 2.03 | -11.63 | 98.51 | -31.48 | 120.84 | 0.5980 | 728.4 | 536.4 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -9.97 | 98.63 | -31.36 | 118.48 | 0.5853 | 691.0 | 520.7 | |
| 4.19 | 6.42 | 2.70 | 4.14 | -16.28 | 97.63 | -32.36 | 126.51 | 0.6416 | 835.0 | 608.3 | |
| 0.36 | 1.34 | 0.22 | 0.83 | -11.68 | 98.25 | -31.74 | 120.71 | 0.6015 | 390.8 | 266.4 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -14.55 | 97.64 | -32.35 | 124.23 | 0.6288 | 573.0 | 503.6 | |
| 0.00 | 1.52 | 0.00 | 0.96 | -13.96 | 97.70 | -32.29 | 123.48 | 0.6239 | 336.0 | 284.8 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -12.87 | 97.68 | -32.31 | 121.95 | 0.6164 | 469.0 | 273.8 | |
| 5.26 | 28.53 | 3.42 | 18.61 | -16.26 | 96.92 | -33.07 | 125.91 | 0.6491 | 882.9 | 607.3 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -11.54 | 97.50 | -32.49 | 119.91 | 0.6095 | -701.0 | -490.8 | |
| 6.60 | -34.00 | 4.31 | -34.00 | -16.22 | 96.51 | -33.48 | 125.53 | 0.6532 | 780.2 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.97 | -13.99 | 96.80 | -33.19 | 122.81 | 0.6342 | 849.0 | 692.1 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -13.84 | 96.72 | -33.28 | 122.53 | 0.6341 | 392.0 | 566.2 | |
| 0.00 | 3.57 | 0.00 | 2.28 | -13.71 | 96.70 | -33.29 | 122.34 | 0.6334 | 616.0 | 586.2 | |
| 0.45 | 1.69 | 0.29 | 1.09 | -14.04 | 96.53 | -33.46 | 122.67 | 0.6376 | 676.6 | 552.7 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -15.63 | 96.18 | -33.82 | 124.49 | 0.6526 | 549.0 | 434.7 | |
| 0.89 | 2.14 | 0.57 | 1.37 | -13.90 | 96.33 | -33.66 | 122.31 | 0.6389 | 626.6 | 496.2 | |
| 0.00 | 2.14 | 0.00 | 1.35 | -12.18 | 96.56 | -33.43 | 120.11 | 0.6248 | -800.0 | -610.8 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -7.73 | 97.01 | -32.98 | 113.85 | 0.5920 | -674.0 | -578.3 | |
| 0.45 | 3.21 | 0.29 | 2.07 | -13.82 | 96.08 | -33.91 | 122.02 | 0.6412 | 608.6 | 411.1 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -12.16 | 96.34 | -33.65 | 119.93 | 0.6273 | -591.0 | -504.0 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -15.66 | 95.71 | -34.28 | 124.18 | 0.6578 | 505.0 | 417.6 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -17.36 | 95.36 | -34.63 | 126.08 | 0.6734 | 377.0 | 312.5 | |
| 11.32 | 24.34 | 7.51 | 16.16 | -16.57 | 95.38 | -34.62 | 125.09 | 0.6677 | 665.7 | -153.0 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -13.28 | 95.95 | -34.05 | 121.18 | 0.6392 | -841.0 | -712.1 | |
| 4.64 | 8.92 | 3.01 | 5.80 | -14.27 | 95.63 | -34.36 | 122.28 | 0.6493 | 753.5 | 466.9 | |
| 0.00 | 2.50 | 0.00 | 1.62 | -13.88 | 95.70 | -34.30 | 121.81 | 0.6459 | 346.0 | 219.5 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -11.88 | 95.86 | -34.13 | 119.17 | 0.6311 | 463.0 | 432.0 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -14.55 | 95.31 | -34.68 | 122.42 | 0.6547 | 372.0 | 323.9 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -17.71 | 94.66 | -35.33 | 125.98 | 0.6830 | -803.0 | -689.9 | |
| 2.76 | 9.27 | 1.79 | 6.00 | -13.28 | 95.46 | -34.54 | 120.82 | 0.6448 | -947.9 | -755.7 | |
| 0.00 | 1.52 | 0.00 | 0.99 | -14.40 | 95.23 | -34.77 | 122.15 | 0.6546 | 485.0 | 370.2 | |
| 1.34 | 475.89 | 0.88 | 318.77 | -14.32 | 94.98 | -35.02 | 121.86 | 0.6569 | 548.1 | -432.0 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -12.83 | 95.04 | -34.95 | 119.91 | 0.6467 | -767.0 | -579.3 | |
| 0.00 | 2.94 | 0.00 | 1.92 | -13.29 | 94.93 | -35.07 | 120.45 | 0.6509 | -698.0 | -670.6 | |
| 0.00 | 2.41 | 0.00 | 1.55 | -11.94 | 95.10 | -34.89 | 118.71 | 0.6403 | 650.0 | 457.0 | |
| 4.19 | -58.00 | 2.76 | -58.00 | -14.47 | 94.64 | -35.35 | 121.82 | 0.6617 | 559.5 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -12.65 | 94.92 | -35.08 | 119.57 | 0.6469 | -604.0 | -665.7 | |
| 2.05 | -58.00 | 1.34 | -58.00 | -13.63 | 94.68 | -35.32 | 120.73 | 0.6559 | -970.7 | 999999 | |
| 0.89 | 2.32 | 0.58 | 1.50 | -12.43 | 94.88 | -35.12 | 119.24 | 0.6460 | -871.9 | -701.2 | |
| 0.00 | 2.14 | 0.00 | 1.39 | -13.02 | 94.74 | -35.25 | 119.95 | 0.6512 | -423.0 | -399.1 | |
| 0.00 | 1.34 | 0.00 | 0.91 | -16.78 | 93.90 | -36.09 | 124.25 | 0.6847 | -256.0 | -216.7 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -16.97 | 93.58 | -36.41 | 124.26 | 0.6893 | -817.0 | -558.1 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -16.85 | 93.49 | -36.50 | 124.04 | 0.6894 | -397.0 | -472.6 | |
| 0.00 | 1.34 | 0.00 | 0.93 | -18.68 | 92.89 | -37.11 | 125.86 | 0.7075 | -791.0 | -653.1 | |
| 9.45 | 74.01 | 6.51 | 51.33 | -17.31 | 93.03 | -36.97 | 124.29 | 0.6972 | -1043.5 | -447.7 | |
| 15.87 | -58.00 | 10.67 | -58.00 | -15.02 | 93.45 | -36.54 | 121.69 | 0.6782 | 315.6 | 999999 | |
| 1.52 | -71.00 | 1.06 | -71.00 | -18.13 | 92.67 | -37.33 | 125.05 | 0.7062 | -654.6 | 999999 | |
| 6.78 | -71.00 | 4.70 | -71.00 | -17.60 | 92.76 | -37.23 | 124.46 | 0.7018 | -1019.3 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -18.51 | 92.53 | -37.46 | 125.41 | 0.7100 | -480.0 | -467.0 | |
| 32.46 | -58.00 | 21.62 | -58.00 | -13.98 | 93.50 | -36.49 | 120.37 | 0.6712 | -1266.0 | 999999 | |
| 11.77 | -71.00 | 8.21 | -71.00 | -17.85 | 92.50 | -37.50 | 124.58 | 0.7061 | -823.5 | 999999 | |
| 1.25 | -58.00 | 0.83 | -58.00 | -13.48 | 93.32 | -36.67 | 119.58 | 0.6702 | -923.7 | 999999 | |
| 7.04 | 66.70 | 4.64 | 43.92 | -12.28 | 93.49 | -36.51 | 118.09 | 0.6612 | -1106.5 | -504.6 | |
| 2.68 | -71.00 | 1.87 | -71.00 | -17.63 | 92.35 | -37.64 | 124.21 | 0.7061 | -782.0 | 999999 | |
| 12.57 | -58.00 | 8.42 | -58.00 | -14.01 | 93.10 | -36.89 | 120.14 | 0.6758 | -1130.0 | 999999 | |
| 7.85 | -79.00 | 5.19 | -79.00 | -12.18 | 93.16 | -36.84 | 117.73 | 0.6644 | -889.4 | 999999 | |
| 23.54 | -58.00 | 15.87 | -58.00 | -14.10 | 92.73 | -37.26 | 120.02 | 0.6804 | -1065.4 | 999999 | |
| 0.71 | 3.12 | 0.48 | 2.08 | -12.93 | 92.91 | -37.08 | 118.59 | 0.6716 | -857.8 | -688.6 | |
| 11.86 | -58.00 | 8.05 | -58.00 | -14.54 | 92.49 | -37.50 | 120.43 | 0.6857 | -1039.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -12.75 | 92.79 | -37.21 | 118.26 | 0.6719 | -623.0 | -579.2 | |
| 4.99 | -58.00 | 3.40 | -58.00 | -14.31 | 92.22 | -37.77 | 119.94 | 0.6873 | -656.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -15.50 | 91.93 | -38.06 | 121.28 | 0.6974 | 490.0 | 332.2 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -10.52 | 92.41 | -37.59 | 115.00 | 0.6640 | -646.0 | -581.2 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -12.52 | 91.73 | -38.26 | 117.28 | 0.6825 | -692.0 | -541.2 | |
| 0.00 | 1.61 | 0.00 | 1.11 | -14.75 | 91.09 | -38.90 | 119.79 | 0.7021 | -813.0 | -590.1 | |
| 0.00 | 1.52 | 0.00 | 1.02 | -11.99 | 91.55 | -38.45 | 116.47 | 0.6818 | -703.0 | -599.6 | |
| 0.00 | 3.03 | 0.00 | 2.07 | -12.99 | 91.37 | -38.63 | 117.69 | 0.6892 | -565.0 | -525.5 | |
| 0.00 | 5.62 | 0.00 | 3.91 | -15.00 | 90.92 | -39.08 | 119.99 | 0.7053 | -409.0 | -392.8 | |
| 0.54 | 1.78 | 0.37 | 1.24 | -14.51 | 90.90 | -39.09 | 119.36 | 0.7028 | -745.8 | -603.9 | |
| 0.00 | 1.69 | 0.00 | 1.14 | -11.52 | 91.39 | -38.61 | 115.75 | 0.6811 | -800.0 | -639.3 | |
| 0.00 | 2.94 | 0.00 | 2.02 | -12.97 | 90.89 | -39.10 | 117.37 | 0.6944 | -535.0 | -453.7 | |
| 0.00 | 3.30 | 0.00 | 2.31 | -14.70 | 90.54 | -39.46 | 119.38 | 0.7077 | -658.0 | -444.1 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -14.63 | 90.31 | -39.68 | 119.14 | 0.7097 | -382.0 | -346.6 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -13.82 | 90.32 | -39.67 | 118.12 | 0.7052 | -442.0 | -377.5 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -11.37 | 89.04 | -40.95 | 114.22 | 0.7069 | -138.0 | -147.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
