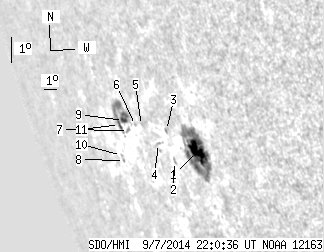

SDO HMI 2014-09-07 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.30 | 120.84 | 29.58 | 164.84 | -16.48 | 64.34 | -65.10 | 110.94 | 0.9319 | 276.3 | -2.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.37 | 84.72 | 23.22 | 107.54 | -16.53 | 66.20 | -63.24 | 111.48 | 0.9215 | 589.0 | 109.5 | |
| 0.00 | 1.69 | 0.00 | 2.33 | -17.10 | 64.15 | -65.29 | 111.50 | 0.9348 | 141.0 | 97.4 | |
| 0.00 | 1.34 | 0.00 | 1.82 | -16.09 | 64.20 | -65.24 | 110.47 | 0.9329 | 162.0 | 147.5 | |
| 0.00 | 1.61 | 0.00 | 2.29 | -16.62 | 63.23 | -66.21 | 110.77 | 0.9393 | -24.0 | -55.7 | |
| 0.00 | 0.89 | 0.00 | 1.32 | -16.17 | 62.18 | -67.27 | 110.04 | 0.9444 | -253.0 | -198.1 | |
| 0.00 | 0.80 | 0.00 | 1.23 | -16.23 | 61.63 | -67.81 | 109.97 | 0.9473 | -481.0 | -470.1 | |
| 0.00 | 1.96 | 0.00 | 3.13 | -16.49 | 60.84 | -68.61 | 110.05 | 0.9517 | -561.0 | -519.0 | |
| 0.00 | 1.16 | 0.00 | 2.01 | -17.62 | 59.54 | -69.90 | 110.89 | 0.9593 | -143.0 | -76.1 | |
| 2.32 | 26.40 | 3.71 | 42.71 | -16.19 | 60.62 | -68.82 | 109.69 | 0.9524 | -609.2 | -200.2 | |
| 0.00 | 0.27 | 0.00 | 0.46 | -17.48 | 59.39 | -70.05 | 110.71 | 0.9598 | 67.0 | -48.3 | |
| 1.61 | -9.00 | 2.65 | -9.00 | -16.38 | 60.12 | -69.32 | 109.77 | 0.9551 | 22.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
