SDO HMI 2014-09-07 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.62 | 20.17 | 0.37 | 12.40 | -16.85 | 156.42 | 27.53 | 228.21 | 0.5950 | -40.6 | 52.7 | |
|
previous
or next observation for the same group /

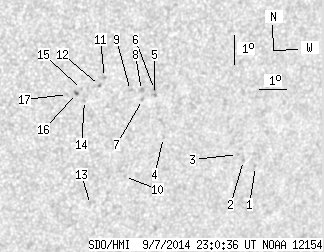

back to the solar disc SDO HMI 2014-09-07 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.29 | -19.04 | 161.34 | 32.45 | 230.08 | 0.6636 | 523.0 | 452.0 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -18.80 | 160.84 | 31.95 | 229.94 | 0.6567 | 616.0 | 529.4 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -18.58 | 160.56 | 31.67 | 229.97 | 0.6523 | 699.0 | 590.2 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -17.82 | 157.69 | 28.80 | 228.28 | 0.6167 | -421.0 | -362.9 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -16.36 | 157.12 | 28.23 | 229.60 | 0.5982 | 736.0 | 650.7 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -16.19 | 157.10 | 28.21 | 229.80 | 0.5965 | 664.0 | 570.3 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -16.50 | 156.71 | 27.82 | 229.01 | 0.5951 | 772.0 | 616.5 | |
| 0.00 | 2.68 | 0.00 | 1.64 | -16.20 | 156.63 | 27.74 | 229.33 | 0.5916 | 701.0 | 597.1 | |
| 0.00 | 1.52 | 0.00 | 0.93 | -16.17 | 156.24 | 27.35 | 228.96 | 0.5872 | 814.0 | 616.2 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -19.04 | 156.50 | 27.61 | 225.56 | 0.6157 | -615.0 | -523.4 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -15.69 | 155.25 | 26.36 | 228.57 | 0.5723 | -702.0 | -595.8 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -15.94 | 155.11 | 26.22 | 228.08 | 0.5731 | -664.0 | -557.1 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -19.92 | 155.43 | 26.54 | 223.40 | 0.6137 | -638.0 | -574.0 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -16.40 | 154.65 | 25.76 | 226.96 | 0.5726 | -636.0 | -538.5 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -16.03 | 154.49 | 25.60 | 227.28 | 0.5675 | -801.0 | -593.1 | |
| 0.62 | 1.61 | 0.37 | 0.96 | -16.16 | 154.34 | 25.45 | 226.94 | 0.5670 | -802.9 | -724.1 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -16.17 | 154.03 | 25.14 | 226.57 | 0.5639 | -653.0 | -383.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
