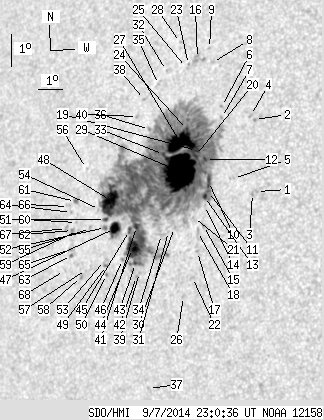

SDO HMI 2014-09-07 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 202.36 | 1066.76 | 134.85 | 710.79 | 15.16 | 86.85 | -42.04 | 75.34 | 0.6704 | 258.4 | -56.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.79 | 15.16 | 90.80 | -38.09 | 74.65 | 0.6197 | -920.0 | -766.6 | |
| 0.00 | 1.07 | 0.00 | 0.68 | 17.34 | 90.22 | -38.67 | 71.34 | 0.6319 | -662.0 | -660.8 | |
| 0.00 | 1.43 | 0.00 | 0.90 | 15.09 | 90.65 | -38.24 | 74.79 | 0.6215 | -689.0 | -622.1 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 17.45 | 90.02 | -38.86 | 71.22 | 0.6346 | -520.0 | -457.3 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 15.49 | 89.80 | -39.09 | 74.34 | 0.6333 | 314.0 | 202.7 | |
| 0.00 | 1.16 | 0.00 | 0.75 | 17.63 | 88.78 | -40.11 | 71.25 | 0.6506 | 763.0 | 634.6 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 17.30 | 88.87 | -40.02 | 71.74 | 0.6488 | 681.0 | 541.1 | |
| 0.00 | 1.69 | 0.00 | 1.12 | 18.94 | 88.04 | -40.85 | 69.48 | 0.6629 | 707.0 | 553.9 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 19.36 | 87.78 | -41.10 | 68.93 | 0.6670 | 495.0 | 465.0 | |
| 4.73 | 977.09 | 3.06 | 650.40 | 15.32 | 88.82 | -40.07 | 74.79 | 0.6457 | 1021.2 | -48.6 | |
| 2.14 | -10.00 | 1.38 | -10.00 | 15.02 | 88.89 | -40.00 | 75.24 | 0.6443 | 961.8 | 999999 | |
| 1.43 | -10.00 | 0.93 | -10.00 | 15.98 | 88.54 | -40.35 | 73.83 | 0.6503 | 1200.9 | 999999 | |
| 1.87 | -10.00 | 1.21 | -10.00 | 14.85 | 88.76 | -40.13 | 75.52 | 0.6457 | 820.6 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 14.58 | 88.82 | -40.07 | 75.93 | 0.6445 | 412.0 | 299.9 | |
| 0.00 | 1.43 | 0.00 | 0.92 | 13.98 | 88.91 | -39.98 | 76.85 | 0.6425 | 417.0 | 403.5 | |
| 0.00 | 7.58 | 0.00 | 5.05 | 19.01 | 87.38 | -41.51 | 69.54 | 0.6711 | 743.0 | 676.4 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 13.17 | 88.83 | -40.06 | 78.11 | 0.6427 | -585.0 | -529.3 | |
| 0.00 | 2.94 | 0.00 | 1.90 | 13.78 | 88.71 | -40.18 | 77.19 | 0.6449 | 95.0 | 125.7 | |
| 1.34 | -10.00 | 0.88 | -10.00 | 16.22 | 88.11 | -40.78 | 73.55 | 0.6562 | 1275.6 | 999999 | |
| 1.87 | -10.00 | 1.23 | -10.00 | 16.06 | 88.11 | -40.78 | 73.78 | 0.6560 | 902.0 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 14.19 | 88.46 | -40.43 | 76.60 | 0.6487 | 580.0 | 545.0 | |
| 0.00 | 1.69 | 0.00 | 1.09 | 12.38 | 88.78 | -40.11 | 79.36 | 0.6426 | -744.0 | -661.3 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 18.80 | 87.06 | -41.83 | 69.94 | 0.6745 | 602.0 | 510.6 | |
| 0.27 | -10.00 | 0.18 | -10.00 | 16.83 | 87.58 | -41.31 | 72.75 | 0.6640 | 809.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 18.70 | 87.00 | -41.89 | 70.10 | 0.6749 | 551.0 | 596.7 | |
| 0.00 | 1.69 | 0.00 | 1.10 | 11.78 | 88.52 | -40.37 | 80.32 | 0.6455 | -501.0 | -537.9 | |
| 34.78 | -10.00 | 23.02 | -10.00 | 16.41 | 87.39 | -41.50 | 73.41 | 0.6655 | 1032.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.78 | 19.44 | 86.51 | -42.38 | 69.14 | 0.6825 | 454.0 | 426.0 | |
| 83.65 | -10.00 | 55.14 | -10.00 | 15.53 | 87.57 | -41.32 | 74.69 | 0.6619 | 1226.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 13.82 | 87.75 | -41.14 | 77.25 | 0.6573 | -416.0 | -297.4 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 13.68 | 87.53 | -41.36 | 77.49 | 0.6599 | 190.0 | 137.1 | |
| 0.00 | 0.62 | 0.00 | 0.42 | 18.54 | 86.18 | -42.71 | 70.52 | 0.6844 | 575.0 | 461.3 | |
| 0.27 | -10.00 | 0.18 | -10.00 | 15.99 | 86.78 | -42.11 | 74.14 | 0.6724 | 526.3 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.77 | 13.57 | 87.27 | -41.62 | 77.69 | 0.6632 | -160.0 | -169.2 | |
| 0.00 | 1.16 | 0.00 | 0.79 | 18.09 | 85.98 | -42.91 | 71.22 | 0.6859 | 608.0 | 475.2 | |
| 0.00 | 1.69 | 0.00 | 1.15 | 16.70 | 85.99 | -42.90 | 73.24 | 0.6832 | 505.0 | 380.6 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 8.90 | 87.54 | -41.34 | 84.78 | 0.6577 | -583.0 | -547.0 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 17.59 | 85.52 | -43.37 | 72.04 | 0.6905 | 500.0 | 409.5 | |
| 0.00 | 1.07 | 0.00 | 0.71 | 12.35 | 86.60 | -42.29 | 79.58 | 0.6707 | -708.0 | -524.0 | |
| 0.00 | 1.69 | 0.00 | 1.16 | 17.05 | 85.37 | -43.52 | 72.85 | 0.6913 | 577.0 | 445.2 | |
| 2.59 | -10.00 | 1.74 | -10.00 | 13.72 | 86.18 | -42.71 | 77.58 | 0.6770 | -1164.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 12.22 | 86.50 | -42.39 | 79.78 | 0.6719 | -713.0 | -587.7 | |
| 1.34 | -10.00 | 0.89 | -10.00 | 12.61 | 86.38 | -42.51 | 79.21 | 0.6736 | -833.8 | 999999 | |
| 16.32 | -10.00 | 10.95 | -10.00 | 13.05 | 86.16 | -42.73 | 78.58 | 0.6767 | -1018.8 | 999999 | |
| 1.87 | -10.00 | 1.26 | -10.00 | 13.58 | 85.91 | -42.98 | 77.82 | 0.6802 | -951.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.90 | 12.68 | 85.81 | -43.08 | 79.15 | 0.6808 | -564.0 | -440.3 | |
| 9.19 | 16.05 | 6.25 | 10.92 | 13.59 | 85.27 | -43.62 | 77.87 | 0.6882 | -939.7 | -625.0 | |
| 35.49 | -10.00 | 24.33 | -10.00 | 14.42 | 84.90 | -43.99 | 76.71 | 0.6935 | -983.3 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.28 | 12.45 | 85.18 | -43.71 | 79.54 | 0.6885 | -658.0 | -503.3 | |
| 0.00 | 0.98 | 0.00 | 0.67 | 12.18 | 85.23 | -43.66 | 79.93 | 0.6877 | -543.0 | -445.7 | |
| 1.25 | -10.00 | 0.86 | -10.00 | 13.83 | 84.83 | -44.06 | 77.57 | 0.6938 | -711.6 | 999999 | |
| 0.80 | 2.76 | 0.55 | 1.89 | 13.59 | 84.88 | -44.01 | 77.91 | 0.6929 | -576.7 | -466.3 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 12.59 | 85.06 | -43.83 | 79.34 | 0.6900 | -464.0 | -419.8 | |
| 0.00 | 1.61 | 0.00 | 1.11 | 14.10 | 84.50 | -44.39 | 77.20 | 0.6981 | -188.0 | -265.5 | |
| 0.00 | 1.69 | 0.00 | 1.17 | 13.50 | 84.25 | -44.64 | 78.09 | 0.7006 | -511.0 | -409.5 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 15.29 | 83.61 | -45.28 | 75.61 | 0.7099 | -390.0 | -313.6 | |
| 0.00 | 1.16 | 0.00 | 0.80 | 12.25 | 84.35 | -44.54 | 79.87 | 0.6986 | -400.0 | -493.5 | |
| 0.00 | 1.78 | 0.00 | 1.23 | 12.03 | 84.18 | -44.71 | 80.20 | 0.7005 | -660.0 | -609.9 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 13.40 | 83.74 | -45.14 | 78.28 | 0.7066 | -742.0 | -670.8 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 13.63 | 83.60 | -45.29 | 77.96 | 0.7085 | -527.0 | -455.1 | |
| 0.62 | 2.41 | 0.44 | 1.69 | 14.26 | 83.40 | -45.49 | 77.09 | 0.7114 | -583.4 | -446.1 | |
| 0.00 | 2.23 | 0.00 | 1.56 | 13.37 | 83.48 | -45.41 | 78.33 | 0.7097 | -699.0 | -589.6 | |
| 0.54 | 1.34 | 0.37 | 0.93 | 12.62 | 83.62 | -45.27 | 79.39 | 0.7077 | -671.0 | -579.1 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 13.91 | 83.31 | -45.58 | 77.59 | 0.7122 | -418.0 | -330.8 | |
| 0.00 | 1.87 | 0.00 | 1.31 | 12.79 | 83.53 | -45.36 | 79.14 | 0.7088 | -655.0 | -566.0 | |
| 0.00 | 0.80 | 0.00 | 0.57 | 14.08 | 83.13 | -45.76 | 77.37 | 0.7145 | -274.0 | -188.2 | |
| 0.00 | 2.23 | 0.00 | 1.57 | 13.41 | 83.21 | -45.68 | 78.30 | 0.7130 | -334.0 | -292.8 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 12.14 | 83.41 | -45.48 | 80.07 | 0.7099 | -402.0 | -339.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
