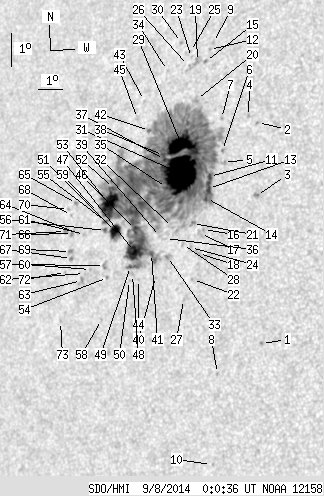

SDO HMI 2014-09-08 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 205.86 | 1084.59 | 135.99 | 716.63 | 15.08 | 86.90 | -41.44 | 75.36 | 0.6628 | 228.5 | -53.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.82 | 10.66 | 91.73 | -36.61 | 81.86 | 0.5942 | -685.0 | -555.5 | |
| 0.00 | 1.25 | 0.00 | 0.79 | 17.33 | 90.31 | -38.03 | 71.18 | 0.6235 | -725.0 | -613.0 | |
| 0.00 | 2.59 | 0.00 | 1.62 | 15.11 | 90.77 | -37.57 | 74.62 | 0.6127 | -884.0 | -748.4 | |
| 0.00 | 1.25 | 0.00 | 0.79 | 17.48 | 89.91 | -38.43 | 71.05 | 0.6291 | -469.0 | -371.6 | |
| 0.00 | 2.41 | 0.00 | 1.54 | 16.01 | 89.25 | -39.09 | 73.52 | 0.6343 | 568.0 | 462.8 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 16.37 | 89.13 | -39.21 | 72.98 | 0.6366 | 848.0 | 764.8 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 17.34 | 88.84 | -39.49 | 71.55 | 0.6423 | 767.0 | 570.6 | |
| 0.00 | 1.34 | 0.00 | 0.84 | 9.63 | 90.17 | -38.17 | 83.63 | 0.6153 | -599.0 | -531.7 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 19.63 | 87.87 | -40.47 | 68.35 | 0.6600 | 497.0 | 430.5 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 6.88 | 90.24 | -38.09 | 88.13 | 0.6151 | -423.0 | -470.8 | |
| 2.68 | 979.44 | 1.72 | 646.70 | 15.55 | 88.79 | -39.55 | 74.34 | 0.6394 | 1099.0 | -40.1 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 19.40 | 87.77 | -40.57 | 68.72 | 0.6606 | 654.0 | 543.2 | |
| 6.60 | -11.00 | 4.24 | -11.00 | 15.18 | 88.83 | -39.51 | 74.90 | 0.6382 | 1013.1 | 999999 | |
| 2.05 | -11.00 | 1.32 | -11.00 | 14.87 | 88.82 | -39.52 | 75.39 | 0.6379 | 909.6 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.06 | 19.02 | 87.71 | -40.62 | 69.30 | 0.6603 | 716.0 | 610.4 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 13.93 | 88.90 | -39.44 | 76.86 | 0.6355 | 529.0 | 504.6 | |
| 0.00 | 3.92 | 0.00 | 2.52 | 13.80 | 88.80 | -39.54 | 77.07 | 0.6366 | 289.0 | 276.6 | |
| 0.00 | 3.66 | 0.00 | 2.34 | 13.19 | 88.84 | -39.50 | 78.03 | 0.6353 | -759.0 | -396.8 | |
| 0.00 | 5.53 | 0.00 | 3.66 | 19.00 | 87.38 | -40.95 | 69.43 | 0.6643 | 904.0 | 686.9 | |
| 0.00 | 2.50 | 0.00 | 1.64 | 17.84 | 87.67 | -40.66 | 71.08 | 0.6580 | 504.0 | 390.9 | |
| 0.00 | 2.59 | 0.00 | 1.67 | 14.07 | 88.42 | -39.92 | 76.70 | 0.6419 | 599.0 | 463.6 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 12.39 | 88.75 | -39.59 | 79.30 | 0.6358 | -737.0 | -665.2 | |
| 0.00 | 1.07 | 0.00 | 0.71 | 19.10 | 87.10 | -41.24 | 69.35 | 0.6680 | 409.0 | 351.4 | |
| 0.00 | 1.69 | 0.00 | 1.09 | 13.34 | 88.49 | -39.85 | 77.83 | 0.6401 | -287.0 | -227.1 | |
| 0.00 | 0.62 | 0.00 | 0.42 | 19.28 | 87.00 | -41.34 | 69.11 | 0.6696 | 419.0 | 376.9 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 18.85 | 87.05 | -41.29 | 69.74 | 0.6680 | 619.0 | 629.1 | |
| 0.00 | 0.80 | 0.00 | 0.52 | 11.76 | 88.50 | -39.84 | 80.31 | 0.6386 | -727.0 | -615.0 | |
| 0.00 | 1.16 | 0.00 | 0.75 | 13.41 | 88.15 | -40.19 | 77.77 | 0.6446 | -125.0 | -162.8 | |
| 32.29 | -11.00 | 21.20 | -11.00 | 16.42 | 87.42 | -40.92 | 73.27 | 0.6583 | 1055.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.84 | 19.52 | 86.54 | -41.80 | 68.88 | 0.6758 | 531.0 | 406.4 | |
| 82.95 | -11.00 | 54.22 | -11.00 | 15.54 | 87.60 | -40.74 | 74.57 | 0.6546 | 1239.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 13.89 | 87.64 | -40.70 | 77.09 | 0.6517 | -263.0 | -229.0 | |
| 0.00 | 3.12 | 0.00 | 2.03 | 13.00 | 87.62 | -40.72 | 78.46 | 0.6511 | -962.0 | -696.7 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 18.62 | 86.21 | -42.12 | 70.27 | 0.6776 | 561.0 | 425.9 | |
| 2.23 | -11.00 | 1.47 | -11.00 | 15.08 | 87.13 | -41.21 | 75.36 | 0.6598 | 462.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 13.53 | 87.42 | -40.91 | 77.66 | 0.6541 | -143.0 | -121.5 | |
| 2.05 | -11.00 | 1.35 | -11.00 | 15.91 | 86.84 | -41.50 | 74.15 | 0.6647 | 542.6 | 999999 | |
| 3.48 | -11.00 | 2.30 | -11.00 | 16.03 | 86.77 | -41.57 | 73.98 | 0.6658 | 464.2 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.34 | 13.58 | 87.21 | -41.13 | 77.62 | 0.6569 | -250.0 | -162.1 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 12.36 | 87.25 | -41.09 | 79.48 | 0.6553 | -632.0 | -640.0 | |
| 1.87 | -11.00 | 1.23 | -11.00 | 13.04 | 86.95 | -41.39 | 78.47 | 0.6597 | -772.8 | 999999 | |
| 0.71 | -11.00 | 0.48 | -11.00 | 16.74 | 85.98 | -42.35 | 73.08 | 0.6767 | 425.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.48 | 17.63 | 85.52 | -42.82 | 71.87 | 0.6840 | 537.0 | 435.6 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 12.21 | 86.57 | -41.77 | 79.75 | 0.6639 | -683.0 | -577.8 | |
| 0.00 | 1.52 | 0.00 | 1.03 | 17.06 | 85.38 | -42.96 | 72.72 | 0.6846 | 544.0 | 310.5 | |
| 4.46 | -11.00 | 2.97 | -11.00 | 13.71 | 86.14 | -42.20 | 77.55 | 0.6706 | -1083.1 | 999999 | |
| 18.37 | -11.00 | 12.21 | -11.00 | 13.04 | 86.24 | -42.10 | 78.54 | 0.6687 | -1042.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.89 | 12.34 | 86.30 | -42.04 | 79.58 | 0.6675 | -755.0 | -645.5 | |
| 0.89 | -11.00 | 0.59 | -11.00 | 12.58 | 86.17 | -42.17 | 79.24 | 0.6693 | -711.7 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 12.15 | 86.21 | -42.13 | 79.87 | 0.6685 | -489.0 | -401.4 | |
| 11.60 | 16.05 | 7.82 | 10.82 | 13.58 | 85.32 | -43.02 | 77.83 | 0.6807 | -924.8 | -560.0 | |
| 1.16 | -11.00 | 0.79 | -11.00 | 14.86 | 84.93 | -43.41 | 75.99 | 0.6869 | -819.1 | 999999 | |
| 29.88 | -11.00 | 20.31 | -11.00 | 14.37 | 84.88 | -43.46 | 76.72 | 0.6870 | -998.8 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.90 | 12.17 | 85.28 | -43.06 | 79.91 | 0.6802 | -495.0 | -408.3 | |
| 1.16 | -11.00 | 0.79 | -11.00 | 13.84 | 84.83 | -43.51 | 77.49 | 0.6870 | -739.0 | 999999 | |
| 0.98 | 2.50 | 0.67 | 1.70 | 13.57 | 84.89 | -43.45 | 77.88 | 0.6860 | -549.5 | -440.4 | |
| 0.00 | 3.30 | 0.00 | 2.23 | 12.52 | 85.08 | -43.26 | 79.41 | 0.6829 | -493.0 | -481.0 | |
| 0.00 | 0.98 | 0.00 | 0.66 | 10.88 | 85.27 | -43.07 | 81.80 | 0.6798 | -619.0 | -507.0 | |
| 0.00 | 1.61 | 0.00 | 1.10 | 14.09 | 84.47 | -43.87 | 77.17 | 0.6917 | -291.0 | -269.6 | |
| 0.00 | 0.71 | 0.00 | 0.49 | 12.35 | 84.52 | -43.82 | 79.69 | 0.6898 | -430.0 | -408.8 | |
| 0.00 | 1.69 | 0.00 | 1.17 | 13.38 | 84.03 | -44.31 | 78.24 | 0.6965 | -277.0 | -291.0 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 12.20 | 84.29 | -44.05 | 79.91 | 0.6926 | -579.0 | -572.2 | |
| 0.00 | 2.94 | 0.00 | 2.02 | 11.98 | 84.20 | -44.14 | 80.24 | 0.6935 | -673.0 | -572.3 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 13.38 | 83.72 | -44.62 | 78.26 | 0.7002 | -714.0 | -626.6 | |
| 0.00 | 1.96 | 0.00 | 1.36 | 14.28 | 83.46 | -44.88 | 77.00 | 0.7041 | -663.0 | -488.2 | |
| 0.00 | 2.77 | 0.00 | 1.92 | 13.36 | 83.51 | -44.83 | 78.30 | 0.7028 | -690.0 | -565.6 | |
| 0.45 | 1.96 | 0.31 | 1.36 | 12.61 | 83.64 | -44.70 | 79.37 | 0.7008 | -750.8 | -621.5 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 13.90 | 83.33 | -45.00 | 77.55 | 0.7053 | -363.0 | -328.1 | |
| 0.00 | 2.77 | 0.00 | 1.92 | 12.81 | 83.55 | -44.79 | 79.08 | 0.7020 | -623.0 | -526.8 | |
| 0.00 | 1.07 | 0.00 | 0.75 | 14.07 | 83.16 | -45.18 | 77.33 | 0.7075 | -380.0 | -298.2 | |
| 0.00 | 2.50 | 0.00 | 1.74 | 13.39 | 83.19 | -45.15 | 78.28 | 0.7066 | -406.0 | -345.8 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 12.16 | 83.47 | -44.87 | 80.01 | 0.7026 | -386.0 | -376.7 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 10.67 | 83.55 | -44.79 | 82.14 | 0.7012 | -578.0 | -476.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
