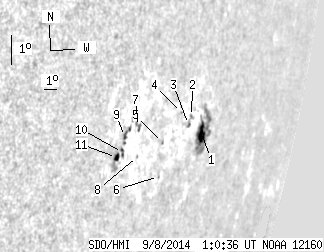

SDO HMI 2014-09-08 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.11 | 73.59 | 19.28 | 107.05 | -9.47 | 196.00 | 68.22 | 257.10 | 0.9401 | 148.3 | -17.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.37 | 42.91 | 14.82 | 68.32 | -9.60 | 197.81 | 70.03 | 257.35 | 0.9511 | 404.5 | 35.7 | |
| 0.00 | 1.96 | 0.00 | 2.91 | -8.93 | 196.64 | 68.85 | 257.81 | 0.9440 | 324.0 | 328.6 | |
| 0.00 | 2.59 | 0.00 | 3.82 | -9.16 | 196.47 | 68.69 | 257.54 | 0.9434 | 336.0 | 391.5 | |
| 0.00 | 0.71 | 0.00 | 1.01 | -8.69 | 195.70 | 67.91 | 257.87 | 0.9384 | 283.0 | 328.9 | |
| 0.00 | 1.34 | 0.00 | 1.81 | -9.48 | 194.48 | 66.69 | 256.79 | 0.9320 | 276.0 | 325.1 | |
| 0.00 | 1.07 | 0.00 | 1.47 | -10.56 | 194.61 | 66.82 | 255.68 | 0.9342 | 320.0 | 318.0 | |
| 0.00 | 4.28 | 0.00 | 5.29 | -8.73 | 192.41 | 64.62 | 257.12 | 0.9178 | -292.0 | -161.7 | |
| 0.00 | 0.98 | 0.00 | 1.23 | -9.70 | 192.67 | 64.89 | 256.15 | 0.9209 | -131.0 | -90.2 | |
| 0.89 | 6.33 | 1.07 | 7.60 | -8.94 | 191.48 | 63.70 | 256.70 | 0.9117 | -568.4 | -488.7 | |
| 0.00 | 3.12 | 0.00 | 3.75 | -9.44 | 191.51 | 63.72 | 256.16 | 0.9127 | -481.0 | -298.3 | |
| 2.85 | 8.30 | 3.39 | 9.84 | -9.55 | 191.13 | 63.34 | 255.95 | 0.9102 | -582.9 | -306.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
