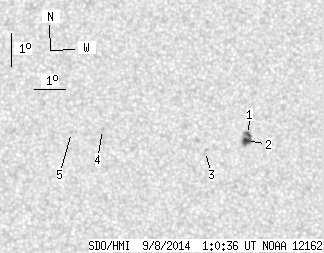

SDO HMI 2014-09-08 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.88 | 15.26 | 3.12 | 8.04 | 9.06 | 147.77 | 19.98 | 276.65 | 0.3411 | -642.6 | -570.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.78 | 10.53 | 0.95 | 5.58 | 9.17 | 148.77 | 20.98 | 276.71 | 0.3575 | -898.3 | -835.4 | |
| 4.10 | -1.00 | 2.17 | -1.00 | 8.99 | 148.69 | 20.90 | 276.22 | 0.3560 | -1058.5 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.31 | 8.72 | 147.34 | 19.55 | 275.64 | 0.3339 | -636.0 | -428.3 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 9.51 | 144.07 | 16.28 | 279.10 | 0.2813 | -948.0 | -723.3 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 9.46 | 143.08 | 15.29 | 279.33 | 0.2648 | 802.0 | 668.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
