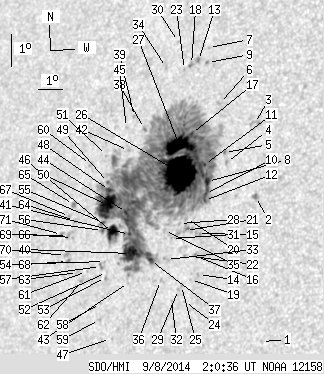

SDO HMI 2014-09-08 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 188.34 | 1104.58 | 122.55 | 718.47 | 15.05 | 86.78 | -40.46 | 75.25 | 0.6503 | 199.2 | -37.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.65 | 10.75 | 91.72 | -35.52 | 81.64 | 0.5791 | -738.0 | -619.1 | |
| 0.00 | 3.30 | 0.00 | 2.04 | 15.10 | 90.76 | -36.47 | 74.39 | 0.5981 | -915.0 | -713.4 | |
| 0.00 | 4.55 | 0.00 | 2.84 | 17.32 | 90.25 | -36.99 | 70.90 | 0.6101 | -412.0 | -552.8 | |
| 0.00 | 1.43 | 0.00 | 0.90 | 16.05 | 89.42 | -37.82 | 73.16 | 0.6179 | 672.0 | 549.4 | |
| 0.00 | 1.34 | 0.00 | 0.84 | 16.35 | 89.27 | -37.96 | 72.72 | 0.6204 | 678.0 | 620.8 | |
| 0.00 | 2.05 | 0.00 | 1.31 | 17.82 | 88.72 | -38.52 | 70.54 | 0.6311 | 890.0 | 649.2 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 19.50 | 87.81 | -39.43 | 68.24 | 0.6470 | 606.0 | 493.8 | |
| 3.48 | 1017.15 | 2.20 | 661.51 | 15.42 | 88.80 | -38.44 | 74.31 | 0.6247 | 1083.3 | -25.5 | |
| 0.00 | 1.43 | 0.00 | 0.92 | 19.03 | 87.90 | -39.34 | 68.91 | 0.6446 | 644.0 | 550.1 | |
| 0.27 | -8.00 | 0.17 | -8.00 | 15.05 | 88.80 | -38.44 | 74.90 | 0.6241 | 864.0 | 999999 | |
| 0.98 | -8.00 | 0.62 | -8.00 | 15.93 | 88.57 | -38.67 | 73.56 | 0.6287 | 1157.2 | 999999 | |
| 1.16 | -8.00 | 0.73 | -8.00 | 14.84 | 88.80 | -38.43 | 75.24 | 0.6236 | 878.1 | 999999 | |
| 0.00 | 2.77 | 0.00 | 1.80 | 19.07 | 87.51 | -39.72 | 68.97 | 0.6494 | 818.0 | 701.1 | |
| 0.00 | 1.34 | 0.00 | 0.84 | 12.59 | 89.00 | -38.24 | 78.83 | 0.6180 | -685.0 | -636.8 | |
| 0.00 | 2.94 | 0.00 | 1.86 | 13.82 | 88.73 | -38.51 | 76.88 | 0.6230 | 276.0 | 403.2 | |
| 0.00 | 1.25 | 0.00 | 0.79 | 13.15 | 88.74 | -38.50 | 77.96 | 0.6221 | -700.0 | -620.9 | |
| 1.43 | -8.00 | 0.92 | -8.00 | 16.83 | 87.82 | -39.41 | 72.33 | 0.6401 | 992.1 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.45 | 18.92 | 87.26 | -39.97 | 69.26 | 0.6521 | 829.0 | 716.8 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 12.41 | 88.71 | -38.53 | 79.15 | 0.6216 | -601.0 | -659.3 | |
| 0.00 | 1.78 | 0.00 | 1.14 | 14.24 | 88.21 | -39.03 | 76.30 | 0.6305 | -61.0 | -60.2 | |
| 0.00 | 8.74 | 0.00 | 5.56 | 13.87 | 88.24 | -39.00 | 76.87 | 0.6296 | 225.0 | 159.7 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 13.12 | 88.35 | -38.89 | 78.06 | 0.6273 | -751.0 | -616.5 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 18.75 | 87.02 | -40.22 | 69.60 | 0.6546 | 599.0 | 551.4 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 11.73 | 88.59 | -38.65 | 80.25 | 0.6227 | -589.0 | -591.7 | |
| 0.00 | 1.07 | 0.00 | 0.68 | 12.20 | 88.39 | -38.85 | 79.51 | 0.6257 | -702.0 | -522.7 | |
| 77.35 | -8.00 | 49.74 | -8.00 | 15.58 | 87.67 | -39.57 | 74.29 | 0.6396 | 1301.1 | 999999 | |
| 33.19 | -8.00 | 21.45 | -8.00 | 16.42 | 87.43 | -39.81 | 73.03 | 0.6443 | 1083.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 14.07 | 87.96 | -39.28 | 76.61 | 0.6335 | 315.0 | 186.4 | |
| 0.00 | 1.07 | 0.00 | 0.68 | 12.07 | 88.29 | -38.94 | 79.73 | 0.6269 | -645.0 | -595.2 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 19.58 | 86.52 | -40.72 | 68.49 | 0.6629 | 539.0 | 387.4 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 13.59 | 87.73 | -39.51 | 77.39 | 0.6359 | 408.0 | 356.0 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 11.72 | 88.07 | -39.16 | 80.31 | 0.6296 | -539.0 | -414.5 | |
| 0.00 | 1.43 | 0.00 | 0.91 | 12.94 | 87.66 | -39.58 | 78.42 | 0.6362 | -747.0 | -692.5 | |
| 0.00 | 1.78 | 0.00 | 1.18 | 18.75 | 86.26 | -40.98 | 69.80 | 0.6639 | 287.0 | 216.8 | |
| 0.00 | 1.61 | 0.00 | 1.03 | 13.81 | 87.40 | -39.83 | 77.10 | 0.6404 | -601.0 | -373.7 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 12.29 | 87.53 | -39.70 | 79.46 | 0.6372 | -736.0 | -566.1 | |
| 2.23 | -8.00 | 1.44 | -8.00 | 12.86 | 87.02 | -40.21 | 78.62 | 0.6444 | -957.1 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.06 | 16.83 | 85.87 | -41.37 | 72.76 | 0.6647 | 497.0 | 410.9 | |
| 0.00 | 1.52 | 0.00 | 1.01 | 17.16 | 85.36 | -41.88 | 72.37 | 0.6716 | 600.0 | 459.0 | |
| 16.59 | -8.00 | 10.86 | -8.00 | 13.01 | 86.18 | -41.06 | 78.48 | 0.6555 | -1026.3 | 999999 | |
| 0.98 | -8.00 | 0.64 | -8.00 | 13.58 | 86.02 | -41.22 | 77.63 | 0.6581 | -1121.5 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.83 | 16.11 | 85.38 | -41.86 | 73.92 | 0.6694 | 249.0 | 129.9 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 12.13 | 86.26 | -40.98 | 79.82 | 0.6536 | -428.0 | -429.6 | |
| 1.52 | -8.00 | 1.00 | -8.00 | 14.23 | 85.75 | -41.49 | 76.68 | 0.6622 | -906.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.66 | 16.80 | 85.12 | -42.12 | 72.95 | 0.6739 | 407.0 | 265.6 | |
| 11.60 | -8.00 | 7.69 | -8.00 | 13.58 | 85.31 | -41.93 | 77.71 | 0.6671 | -883.1 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 10.39 | 85.83 | -41.41 | 82.51 | 0.6585 | -489.0 | -501.5 | |
| 3.66 | -8.00 | 2.45 | -8.00 | 14.83 | 84.90 | -42.34 | 75.89 | 0.6737 | -780.3 | 999999 | |
| 0.62 | -8.00 | 0.42 | -8.00 | 15.07 | 84.79 | -42.44 | 75.55 | 0.6752 | -680.6 | 999999 | |
| 31.05 | -8.00 | 20.74 | -8.00 | 14.38 | 84.92 | -42.32 | 76.57 | 0.6728 | -1011.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.78 | 15.88 | 84.50 | -42.73 | 74.41 | 0.6799 | -750.0 | -652.9 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 12.36 | 85.31 | -41.93 | 79.55 | 0.6660 | -518.0 | -396.9 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 12.20 | 85.30 | -41.94 | 79.78 | 0.6661 | -577.0 | -439.1 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 12.68 | 85.16 | -42.08 | 79.07 | 0.6682 | -561.0 | -480.0 | |
| 1.25 | -8.00 | 0.83 | -8.00 | 13.85 | 84.83 | -42.41 | 77.37 | 0.6734 | -795.3 | 999999 | |
| 0.98 | -8.00 | 0.65 | -8.00 | 13.61 | 84.88 | -42.36 | 77.72 | 0.6725 | -595.4 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.72 | 12.52 | 85.03 | -42.21 | 79.33 | 0.6697 | -516.0 | -435.6 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 11.40 | 85.24 | -42.00 | 80.99 | 0.6664 | -512.0 | -443.9 | |
| 0.00 | 1.34 | 0.00 | 0.89 | 10.92 | 85.28 | -41.96 | 81.71 | 0.6657 | -638.0 | -484.1 | |
| 0.00 | 2.14 | 0.00 | 1.45 | 15.55 | 83.90 | -43.34 | 74.98 | 0.6869 | -619.0 | -518.5 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 12.32 | 84.48 | -42.76 | 79.67 | 0.6766 | -618.0 | -460.2 | |
| 0.00 | 1.43 | 0.00 | 0.96 | 12.00 | 84.33 | -42.91 | 80.15 | 0.6782 | -805.0 | -693.6 | |
| 0.00 | 2.50 | 0.00 | 1.69 | 12.26 | 84.11 | -43.13 | 79.78 | 0.6811 | -595.0 | -487.4 | |
| 0.00 | 1.70 | 0.00 | 1.15 | 13.81 | 83.64 | -43.60 | 77.55 | 0.6881 | -616.0 | -514.9 | |
| 0.00 | 3.12 | 0.00 | 2.13 | 14.29 | 83.48 | -43.75 | 76.87 | 0.6905 | -611.0 | -438.6 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 13.29 | 83.67 | -43.56 | 78.30 | 0.6872 | -713.0 | -592.0 | |
| 0.00 | 0.98 | 0.00 | 0.67 | 13.91 | 83.40 | -43.84 | 77.42 | 0.6911 | -425.0 | -350.4 | |
| 0.00 | 1.61 | 0.00 | 1.09 | 12.55 | 83.62 | -43.62 | 79.38 | 0.6874 | -654.0 | -574.9 | |
| 0.00 | 2.23 | 0.00 | 1.52 | 13.33 | 83.45 | -43.79 | 78.26 | 0.6901 | -691.0 | -590.0 | |
| 0.00 | 2.50 | 0.00 | 1.70 | 12.72 | 83.50 | -43.74 | 79.14 | 0.6890 | -530.0 | -471.2 | |
| 0.00 | 1.87 | 0.00 | 1.28 | 13.34 | 83.19 | -44.05 | 78.27 | 0.6933 | -466.0 | -331.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
