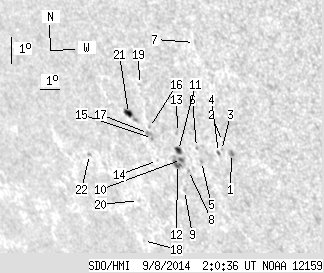

SDO HMI 2014-09-08 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.88 | 46.39 | 9.29 | 39.51 | -20.71 | 79.71 | -47.53 | 121.98 | 0.8153 | 188.0 | 76.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.77 | 0.00 | 2.22 | -20.70 | 82.72 | -44.52 | 123.54 | 0.7892 | 804.0 | 660.6 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -20.32 | 82.45 | -44.79 | 122.97 | 0.7897 | 588.0 | 524.2 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -20.64 | 82.28 | -44.95 | 123.24 | 0.7928 | 644.0 | 583.6 | |
| 0.54 | 1.43 | 0.43 | 1.16 | -20.72 | 82.11 | -45.12 | 123.24 | 0.7947 | 490.7 | 373.6 | |
| 0.00 | 0.89 | 0.00 | 0.74 | -21.11 | 81.17 | -46.07 | 123.17 | 0.8048 | 684.0 | 574.9 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -20.64 | 81.12 | -46.11 | 122.62 | 0.8030 | 472.0 | 391.4 | |
| 0.00 | 0.89 | 0.00 | 0.70 | -17.04 | 82.30 | -44.94 | 119.12 | 0.7753 | 613.0 | 541.9 | |
| 0.00 | 0.98 | 0.00 | 0.83 | -21.49 | 80.40 | -46.84 | 123.18 | 0.8132 | 493.0 | 404.3 | |
| 0.00 | 1.34 | 0.00 | 1.15 | -22.22 | 79.89 | -47.35 | 123.72 | 0.8208 | -533.0 | -403.7 | |
| 1.16 | 11.87 | 0.98 | 10.09 | -21.14 | 80.21 | -47.02 | 122.70 | 0.8131 | 705.5 | 391.0 | |
| 2.94 | 4.91 | 2.49 | 4.14 | -20.83 | 80.20 | -47.04 | 122.36 | 0.8119 | 615.7 | 367.6 | |
| 2.85 | -10.00 | 2.44 | -10.00 | -21.33 | 79.94 | -47.30 | 122.77 | 0.8163 | 381.2 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.42 | -20.21 | 80.40 | -46.84 | 121.76 | 0.8073 | 127.0 | 151.7 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -21.29 | 78.99 | -48.25 | 122.25 | 0.8241 | 327.0 | 277.3 | |
| 0.00 | 0.98 | 0.00 | 0.85 | -20.54 | 79.07 | -48.17 | 121.46 | 0.8202 | -798.0 | -761.0 | |
| 0.00 | 0.98 | 0.00 | 0.84 | -20.17 | 79.08 | -48.16 | 121.06 | 0.8185 | -663.0 | -598.4 | |
| 0.00 | 3.21 | 0.00 | 2.77 | -20.38 | 78.94 | -48.30 | 121.23 | 0.8206 | -730.0 | -624.2 | |
| 0.00 | 0.62 | 0.00 | 0.59 | -24.26 | 76.81 | -50.43 | 124.39 | 0.8536 | 517.0 | 426.6 | |
| 0.00 | 0.80 | 0.00 | 0.68 | -18.73 | 79.17 | -48.07 | 119.49 | 0.8116 | -415.0 | -389.9 | |
| 0.00 | 0.71 | 0.00 | 0.66 | -22.82 | 77.31 | -49.93 | 123.10 | 0.8440 | 409.0 | 371.9 | |
| 3.39 | 8.65 | 2.95 | 7.52 | -19.79 | 78.21 | -49.03 | 120.22 | 0.8243 | -589.4 | -501.8 | |
| 0.00 | 1.16 | 0.00 | 1.09 | -21.45 | 75.46 | -51.78 | 120.78 | 0.8531 | 474.0 | 431.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
