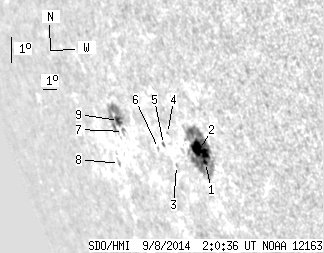

SDO HMI 2014-09-08 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.05 | 117.59 | 26.80 | 146.58 | -16.41 | 64.43 | -62.81 | 111.50 | 0.9178 | 305.0 | 50.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.52 | 82.35 | 1.76 | 95.95 | -16.83 | 66.44 | -60.80 | 112.51 | 0.9062 | 479.1 | 186.8 | |
| 16.15 | -1.00 | 18.79 | -1.00 | -16.43 | 66.27 | -60.97 | 112.03 | 0.9065 | 668.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.35 | -17.18 | 64.28 | -62.96 | 112.24 | 0.9210 | 167.0 | 117.4 | |
| 0.00 | 0.89 | 0.00 | 1.11 | -16.14 | 64.26 | -62.98 | 111.15 | 0.9191 | 234.0 | 263.9 | |
| 0.45 | 1.34 | 0.57 | 1.71 | -16.56 | 63.73 | -63.50 | 111.44 | 0.9232 | 269.0 | 143.8 | |
| 0.00 | 1.07 | 0.00 | 1.40 | -16.75 | 63.26 | -63.98 | 111.50 | 0.9265 | 56.0 | -5.8 | |
| 0.00 | 2.23 | 0.00 | 3.21 | -16.49 | 60.76 | -66.47 | 110.57 | 0.9405 | -536.0 | -507.0 | |
| 0.00 | 1.52 | 0.00 | 2.34 | -17.67 | 59.56 | -67.68 | 111.49 | 0.9486 | -270.0 | -195.6 | |
| 3.93 | 27.12 | 5.68 | 39.51 | -16.16 | 60.59 | -66.64 | 110.18 | 0.9410 | -618.6 | -194.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
