SDO HMI 2014-09-08 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.16 | 0.00 | 3.12 | 16.95 | 132.77 | 6.08 | 328.48 | 0.1973 | -459.0 | -396.4 | |
|
previous
or next observation for the same group /

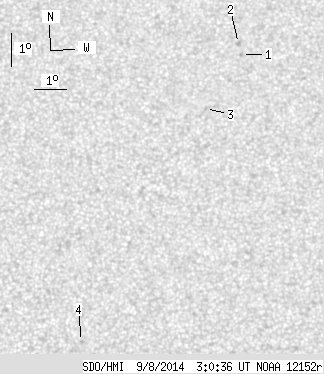

back to the solar disc SDO HMI 2014-09-08 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.59 | 19.11 | 134.22 | 7.53 | 329.02 | 0.2417 | -866.0 | -671.9 | |
| 0.00 | 2.41 | 0.00 | 1.23 | 19.45 | 134.14 | 7.45 | 330.04 | 0.2459 | -868.0 | -741.1 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 17.46 | 133.00 | 6.31 | 329.48 | 0.2074 | -852.0 | -665.3 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 10.42 | 128.98 | 2.29 | 324.50 | 0.0680 | 750.0 | 655.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
