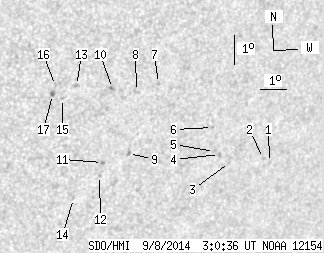

SDO HMI 2014-09-08 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 26.13 | 0.33 | 16.74 | -17.57 | 157.57 | 30.88 | 230.45 | 0.6356 | -19.7 | 18.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.74 | -19.16 | 162.90 | 36.21 | 232.91 | 0.7019 | 252.0 | 319.8 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -19.01 | 162.63 | 35.94 | 232.89 | 0.6981 | 571.0 | 464.4 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -19.04 | 161.30 | 34.61 | 231.84 | 0.6851 | 317.0 | 314.0 | |
| 0.00 | 1.78 | 0.00 | 1.20 | -18.73 | 160.84 | 34.15 | 231.85 | 0.6784 | 645.0 | 563.8 | |
| 0.00 | 1.87 | 0.00 | 1.25 | -18.62 | 160.62 | 33.93 | 231.81 | 0.6753 | 662.0 | 589.4 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -17.80 | 160.36 | 33.67 | 232.62 | 0.6667 | 701.0 | 551.6 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -16.18 | 158.02 | 31.33 | 232.73 | 0.6298 | 492.0 | 406.8 | |
| 0.00 | 2.23 | 0.00 | 1.41 | -16.39 | 157.25 | 30.56 | 231.77 | 0.6232 | 548.0 | 590.0 | |
| 0.00 | 1.87 | 0.00 | 1.21 | -18.44 | 157.33 | 30.64 | 229.23 | 0.6408 | -518.0 | -492.9 | |
| 0.00 | 1.96 | 0.00 | 1.23 | -16.23 | 156.35 | 29.66 | 231.15 | 0.6123 | 832.0 | 629.8 | |
| 0.00 | 1.52 | 0.00 | 0.97 | -18.68 | 156.42 | 29.73 | 228.09 | 0.6336 | -661.0 | -560.3 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -19.12 | 156.39 | 29.71 | 227.53 | 0.6370 | -601.0 | -530.2 | |
| 0.00 | 2.41 | 0.00 | 1.48 | -16.04 | 155.02 | 28.33 | 230.12 | 0.5965 | -643.0 | -488.6 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -19.83 | 155.58 | 28.89 | 225.88 | 0.6353 | -733.0 | -553.2 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -16.44 | 154.58 | 27.89 | 229.16 | 0.5953 | -629.0 | -495.2 | |
| 0.00 | 1.43 | 0.00 | 0.87 | -15.99 | 154.26 | 27.57 | 229.43 | 0.5880 | -575.0 | -477.8 | |
| 0.54 | 2.41 | 0.33 | 1.47 | -16.28 | 154.20 | 27.51 | 228.98 | 0.5899 | -753.3 | -632.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
