SDO HMI 2014-09-08 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.87 | 131.71 | 31.38 | 161.29 | -16.43 | 64.33 | -62.36 | 111.66 | 0.9149 | 224.7 | 57.6 | |
|
previous
or next observation for the same group /

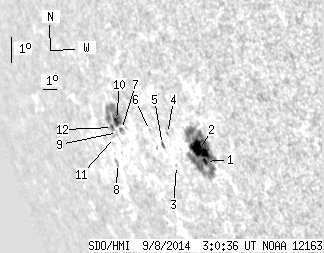

back to the solar disc SDO HMI 2014-09-08 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 90.92 | 2.44 | 103.81 | -16.80 | 66.48 | -60.20 | 112.66 | 0.9021 | 478.4 | 193.5 | |
| 16.60 | -1.00 | 18.95 | -1.00 | -16.43 | 66.30 | -60.39 | 112.21 | 0.9026 | 679.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -17.17 | 64.35 | -62.34 | 112.41 | 0.9170 | 47.0 | 110.0 | |
| 0.00 | 1.16 | 0.00 | 1.41 | -16.14 | 64.33 | -62.36 | 111.31 | 0.9151 | 199.0 | 250.1 | |
| 0.62 | 2.14 | 0.78 | 2.67 | -16.56 | 63.74 | -62.95 | 111.59 | 0.9197 | 221.1 | 69.0 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -16.19 | 63.04 | -63.65 | 111.01 | 0.9234 | -456.0 | -415.0 | |
| 0.71 | 32.12 | 1.00 | 45.62 | -16.42 | 60.81 | -65.88 | 110.65 | 0.9371 | -573.5 | -203.1 | |
| 0.00 | 2.68 | 0.00 | 4.03 | -17.67 | 59.59 | -67.10 | 111.63 | 0.9456 | -366.0 | -176.0 | |
| 0.00 | 1.70 | 0.00 | 2.43 | -16.57 | 60.39 | -66.30 | 110.70 | 0.9397 | -396.0 | -337.7 | |
| 5.00 | -7.00 | 7.05 | -7.00 | -16.16 | 60.59 | -66.10 | 110.32 | 0.9379 | -627.3 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.65 | -16.78 | 60.01 | -66.68 | 110.81 | 0.9421 | 137.0 | 121.8 | |
| 0.80 | -7.00 | 1.16 | -7.00 | -16.44 | 60.08 | -66.61 | 110.49 | 0.9412 | 15.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
