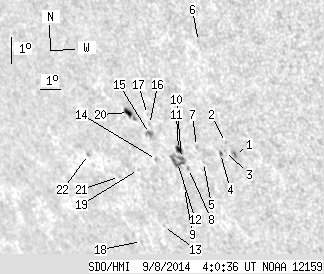

SDO HMI 2014-09-08 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.92 | 48.37 | 11.60 | 40.45 | -20.88 | 79.62 | -46.52 | 122.69 | 0.8074 | 245.1 | 159.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.62 | 3.03 | 0.49 | 2.39 | -20.73 | 82.82 | -43.32 | 124.26 | 0.7786 | 697.3 | 598.2 | |
| 0.00 | 0.89 | 0.00 | 0.70 | -20.35 | 82.51 | -43.63 | 123.65 | 0.7795 | 657.0 | 570.9 | |
| 0.00 | 1.34 | 0.00 | 1.06 | -20.67 | 82.35 | -43.79 | 123.92 | 0.7826 | 640.0 | 348.5 | |
| 0.54 | 1.52 | 0.43 | 1.21 | -20.75 | 82.14 | -44.00 | 123.90 | 0.7849 | 413.8 | 353.3 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -21.15 | 81.21 | -44.93 | 123.82 | 0.7950 | 673.0 | 668.8 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -17.00 | 82.41 | -43.73 | 119.72 | 0.7635 | 507.0 | 504.0 | |
| 0.00 | 1.16 | 0.00 | 0.94 | -20.62 | 81.10 | -45.04 | 123.16 | 0.7935 | 440.0 | 361.8 | |
| 0.00 | 1.25 | 0.00 | 1.03 | -21.43 | 80.41 | -45.73 | 123.69 | 0.8034 | 421.0 | 375.9 | |
| 0.00 | 1.07 | 0.00 | 0.90 | -22.12 | 79.93 | -46.21 | 124.20 | 0.8108 | -307.0 | -308.3 | |
| 1.07 | 12.14 | 0.89 | 10.10 | -21.11 | 80.21 | -45.93 | 123.23 | 0.8036 | 741.8 | 418.4 | |
| 2.94 | 4.28 | 2.43 | 3.54 | -20.80 | 80.19 | -45.95 | 122.89 | 0.8023 | 592.7 | 345.0 | |
| 3.84 | -10.00 | 3.20 | -10.00 | -21.26 | 79.96 | -46.18 | 123.28 | 0.8065 | 423.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.79 | -23.63 | 78.22 | -47.92 | 124.95 | 0.8317 | 459.0 | 354.1 | |
| 0.00 | 1.52 | 0.00 | 1.29 | -21.26 | 78.96 | -47.18 | 122.75 | 0.8150 | 358.0 | 335.8 | |
| 1.16 | 4.64 | 0.98 | 3.91 | -20.38 | 78.99 | -47.15 | 121.79 | 0.8107 | -707.1 | -599.4 | |
| 0.00 | 0.89 | 0.00 | 0.75 | -20.06 | 79.12 | -47.02 | 121.51 | 0.8082 | -489.0 | -422.7 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -19.72 | 79.16 | -46.98 | 121.15 | 0.8064 | -483.0 | -421.0 | |
| 0.00 | 1.07 | 0.00 | 0.99 | -24.29 | 76.78 | -49.37 | 124.93 | 0.8458 | 302.0 | 312.7 | |
| 0.00 | 1.25 | 0.00 | 1.09 | -21.70 | 77.90 | -48.25 | 122.70 | 0.8258 | 415.0 | 369.7 | |
| 3.75 | 7.32 | 3.18 | 6.21 | -19.75 | 78.24 | -47.90 | 120.72 | 0.8144 | -554.7 | -526.0 | |
| 0.00 | 0.80 | 0.00 | 0.72 | -22.05 | 76.79 | -49.35 | 122.54 | 0.8363 | 463.0 | 411.4 | |
| 0.00 | 1.70 | 0.00 | 1.56 | -21.44 | 75.51 | -50.63 | 121.28 | 0.8441 | 324.0 | 328.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
