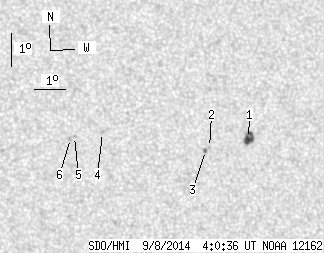

SDO HMI 2014-09-08 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.59 | 16.14 | 4.07 | 8.57 | 9.12 | 147.39 | 21.25 | 276.65 | 0.3615 | -552.8 | -285.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.14 | 9.99 | 3.83 | 5.36 | 9.08 | 148.90 | 22.76 | 276.21 | 0.3859 | -1001.9 | -727.2 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 8.87 | 147.60 | 21.46 | 275.82 | 0.3649 | -714.0 | -617.0 | |
| 0.45 | 1.78 | 0.24 | 0.95 | 8.79 | 147.46 | 21.32 | 275.60 | 0.3626 | -811.6 | -611.8 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 9.48 | 144.15 | 18.01 | 278.35 | 0.3097 | -865.0 | -635.4 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 9.39 | 143.25 | 17.11 | 278.37 | 0.2947 | 718.0 | 628.6 | |
| 0.00 | 1.78 | 0.00 | 0.92 | 9.33 | 143.12 | 16.98 | 278.23 | 0.2924 | 691.0 | 571.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
