SDO HMI 2014-09-08 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 183.13 | 1158.33 | 116.21 | 736.19 | 15.15 | 86.96 | -38.63 | 74.74 | 0.6269 | 312.9 | -65.0 | |
|
previous
or next observation for the same group /

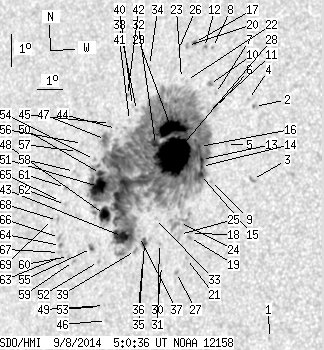

back to the solar disc SDO HMI 2014-09-08 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.58 | 10.34 | 92.21 | -33.38 | 82.18 | 0.5485 | -733.0 | -595.4 | |
| 0.00 | 1.70 | 0.00 | 1.03 | 17.32 | 90.48 | -35.12 | 70.29 | 0.5855 | -714.0 | -680.1 | |
| 0.00 | 2.59 | 0.00 | 1.56 | 15.10 | 90.85 | -34.74 | 73.95 | 0.5747 | -872.0 | -746.4 | |
| 0.00 | 1.25 | 0.00 | 0.76 | 17.52 | 90.20 | -35.39 | 70.05 | 0.5898 | -539.0 | -375.4 | |
| 0.00 | 1.34 | 0.00 | 0.82 | 16.09 | 89.65 | -35.94 | 72.60 | 0.5932 | 457.0 | 452.8 | |
| 0.00 | 4.28 | 0.00 | 2.66 | 17.19 | 88.98 | -36.61 | 70.99 | 0.6048 | 459.0 | 486.2 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 17.61 | 88.88 | -36.71 | 70.33 | 0.6073 | 791.0 | 624.7 | |
| 0.00 | 0.89 | 0.00 | 0.56 | 19.01 | 88.42 | -37.18 | 68.25 | 0.6174 | 707.0 | 595.8 | |
| 0.00 | 1.25 | 0.00 | 0.77 | 14.93 | 89.26 | -36.33 | 74.64 | 0.5958 | 742.0 | 498.0 | |
| 0.00 | 2.50 | 0.00 | 1.56 | 17.87 | 88.58 | -37.01 | 70.01 | 0.6119 | 879.0 | 827.4 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 17.05 | 88.74 | -36.86 | 71.29 | 0.6077 | 696.0 | 650.2 | |
| 0.00 | 1.70 | 0.00 | 1.07 | 18.98 | 88.10 | -37.49 | 68.39 | 0.6213 | 662.0 | 566.8 | |
| 1.43 | 1035.54 | 0.89 | 658.05 | 15.57 | 88.78 | -36.81 | 73.69 | 0.6036 | 1201.5 | -50.7 | |
| 0.27 | -13.00 | 0.17 | -13.00 | 15.36 | 88.83 | -36.77 | 74.03 | 0.6026 | 1058.7 | 999999 | |
| 3.12 | -13.00 | 1.93 | -13.00 | 15.11 | 88.84 | -36.76 | 74.43 | 0.6019 | 926.5 | 999999 | |
| 1.25 | -13.00 | 0.78 | -13.00 | 15.96 | 88.62 | -36.97 | 73.10 | 0.6066 | 1236.1 | 999999 | |
| 0.98 | 1.78 | 0.62 | 1.13 | 19.11 | 87.66 | -37.93 | 68.35 | 0.6272 | 773.9 | 625.4 | |
| 0.00 | 1.87 | 0.00 | 1.16 | 13.30 | 88.79 | -36.80 | 77.45 | 0.5995 | -448.0 | -348.4 | |
| 0.00 | 1.87 | 0.00 | 1.16 | 13.18 | 88.77 | -36.82 | 77.66 | 0.5996 | -788.0 | -677.3 | |
| 0.00 | 2.32 | 0.00 | 1.48 | 19.00 | 87.41 | -38.19 | 68.60 | 0.6301 | 776.0 | 691.0 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 12.54 | 88.76 | -36.83 | 78.73 | 0.5989 | -811.0 | -719.3 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 17.93 | 87.65 | -37.95 | 70.21 | 0.6241 | 691.0 | 613.4 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 17.97 | 87.43 | -38.16 | 70.20 | 0.6269 | 416.0 | 420.8 | |
| 0.00 | 19.28 | 0.00 | 11.98 | 13.60 | 88.31 | -37.29 | 77.03 | 0.6065 | 90.0 | 112.5 | |
| 0.00 | 5.00 | 0.00 | 3.10 | 13.24 | 88.37 | -37.22 | 77.61 | 0.6051 | -318.0 | -231.2 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 18.85 | 87.08 | -38.51 | 68.94 | 0.6337 | 654.0 | 581.0 | |
| 0.00 | 1.61 | 0.00 | 1.00 | 12.09 | 88.45 | -37.14 | 79.52 | 0.6027 | -795.0 | -677.5 | |
| 89.51 | -13.00 | 56.30 | -13.00 | 15.61 | 87.67 | -37.93 | 73.89 | 0.6184 | 1302.1 | 999999 | |
| 27.93 | -13.00 | 17.66 | -13.00 | 16.42 | 87.40 | -38.19 | 72.65 | 0.6235 | 1115.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 12.25 | 87.84 | -37.76 | 79.31 | 0.6112 | -598.0 | -514.8 | |
| 0.00 | 1.25 | 0.00 | 0.78 | 12.91 | 87.64 | -37.95 | 78.26 | 0.6145 | -816.0 | -617.8 | |
| 3.48 | -13.00 | 2.21 | -13.00 | 15.89 | 86.88 | -38.71 | 73.62 | 0.6292 | 603.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 13.65 | 87.35 | -38.24 | 77.10 | 0.6193 | -420.0 | -417.6 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 18.27 | 86.04 | -39.55 | 70.13 | 0.6452 | 587.0 | 437.5 | |
| 2.77 | 6.25 | 1.75 | 3.94 | 12.87 | 87.06 | -38.53 | 78.41 | 0.6222 | -686.5 | -493.5 | |
| 0.00 | 1.16 | 0.00 | 0.73 | 12.29 | 87.08 | -38.51 | 79.34 | 0.6213 | -575.0 | -518.8 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 13.06 | 86.82 | -38.77 | 78.12 | 0.6256 | -331.0 | -304.2 | |
| 0.00 | 1.16 | 0.00 | 0.75 | 16.86 | 85.88 | -39.72 | 72.33 | 0.6441 | 366.0 | 305.6 | |
| 0.00 | 2.32 | 0.00 | 1.47 | 12.63 | 86.74 | -38.85 | 78.83 | 0.6262 | -815.0 | -709.1 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 17.00 | 85.68 | -39.92 | 72.17 | 0.6469 | 433.0 | 347.3 | |
| 0.00 | 1.78 | 0.00 | 1.16 | 16.54 | 85.67 | -39.92 | 72.88 | 0.6460 | 259.0 | 148.6 | |
| 0.00 | 1.25 | 0.00 | 0.81 | 17.29 | 85.39 | -40.20 | 71.79 | 0.6510 | 474.0 | 411.2 | |
| 15.62 | -13.00 | 9.99 | -13.00 | 13.01 | 86.15 | -39.44 | 78.29 | 0.6344 | -994.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 16.25 | 85.20 | -40.39 | 73.41 | 0.6514 | 318.0 | 228.0 | |
| 0.00 | 2.77 | 0.00 | 1.81 | 16.39 | 84.92 | -40.67 | 73.27 | 0.6552 | -453.0 | -449.1 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 10.43 | 85.95 | -39.64 | 82.38 | 0.6353 | -595.0 | -545.5 | |
| 0.00 | 12.94 | 0.00 | 8.46 | 15.89 | 84.84 | -40.76 | 74.05 | 0.6554 | -473.0 | -378.9 | |
| 12.67 | -13.00 | 8.20 | -13.00 | 13.62 | 85.30 | -40.29 | 77.45 | 0.6461 | -904.1 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.40 | 10.88 | 85.80 | -39.79 | 81.68 | 0.6375 | -741.0 | -613.1 | |
| 3.39 | -13.00 | 2.21 | -13.00 | 14.84 | 84.87 | -40.72 | 75.63 | 0.6532 | -762.7 | 999999 | |
| 19.37 | -13.00 | 12.63 | -13.00 | 14.44 | 84.88 | -40.71 | 76.24 | 0.6526 | -1080.5 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.98 | 12.18 | 85.34 | -40.26 | 79.67 | 0.6444 | -592.0 | -359.0 | |
| 0.00 | 1.16 | 0.00 | 0.75 | 10.83 | 85.57 | -40.03 | 81.77 | 0.6405 | -565.0 | -500.4 | |
| 0.00 | 1.78 | 0.00 | 1.17 | 15.24 | 84.53 | -41.06 | 75.07 | 0.6582 | -704.0 | -530.7 | |
| 1.34 | 3.48 | 0.87 | 2.26 | 12.55 | 84.98 | -40.61 | 79.13 | 0.6493 | -586.3 | -419.7 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 15.69 | 83.92 | -41.67 | 74.51 | 0.6665 | -575.0 | -491.2 | |
| 0.00 | 1.43 | 0.00 | 0.95 | 15.43 | 83.77 | -41.82 | 74.92 | 0.6680 | -554.0 | -472.7 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 14.82 | 83.80 | -41.80 | 75.83 | 0.6668 | -581.0 | -451.0 | |
| 0.00 | 1.78 | 0.00 | 1.17 | 12.10 | 84.33 | -41.27 | 79.88 | 0.6574 | -721.0 | -620.4 | |
| 0.00 | 1.43 | 0.00 | 0.94 | 12.24 | 84.10 | -41.50 | 79.69 | 0.6605 | -697.0 | -589.4 | |
| 0.00 | 1.87 | 0.00 | 1.25 | 14.30 | 83.54 | -42.06 | 76.64 | 0.6695 | -556.0 | -457.3 | |
| 0.00 | 1.25 | 0.00 | 0.83 | 13.79 | 83.65 | -41.94 | 77.39 | 0.6674 | -674.0 | -568.4 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 12.21 | 83.81 | -41.78 | 79.75 | 0.6641 | -579.0 | -572.3 | |
| 0.00 | 1.61 | 0.00 | 1.06 | 12.54 | 83.70 | -41.89 | 79.26 | 0.6657 | -794.0 | -628.6 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 13.86 | 83.42 | -42.17 | 77.30 | 0.6704 | -329.0 | -301.7 | |
| 0.00 | 2.86 | 0.00 | 1.89 | 12.78 | 83.61 | -41.98 | 78.91 | 0.6670 | -634.0 | -489.0 | |
| 0.00 | 1.61 | 0.00 | 1.06 | 12.33 | 83.70 | -41.89 | 79.58 | 0.6655 | -610.0 | -565.6 | |
| 0.00 | 1.43 | 0.00 | 0.95 | 13.28 | 83.43 | -42.17 | 78.17 | 0.6698 | -663.0 | -536.8 | |
| 0.00 | 1.43 | 0.00 | 0.95 | 13.30 | 83.21 | -42.38 | 78.18 | 0.6725 | -392.0 | -280.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
