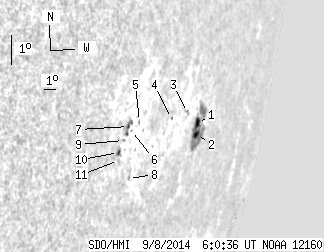

SDO HMI 2014-09-08 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.18 | 55.15 | 16.23 | 96.23 | -9.57 | 196.72 | 71.68 | 257.69 | 0.9584 | 143.8 | -76.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.28 | 38.37 | 7.99 | 72.72 | -9.53 | 198.03 | 72.99 | 257.99 | 0.9653 | 408.0 | -32.0 | |
| 3.12 | -1.00 | 5.88 | -1.00 | -9.89 | 198.13 | 73.08 | 257.64 | 0.9660 | 375.5 | 999999 | |
| 0.00 | 2.14 | 0.00 | 3.69 | -9.03 | 196.74 | 71.70 | 258.26 | 0.9590 | 563.0 | 469.6 | |
| 0.00 | 0.80 | 0.00 | 1.28 | -9.03 | 195.22 | 70.18 | 257.97 | 0.9513 | 337.0 | 333.0 | |
| 0.00 | 0.98 | 0.00 | 1.36 | -8.78 | 192.38 | 67.34 | 257.66 | 0.9351 | -187.0 | -130.3 | |
| 0.00 | 0.27 | 0.00 | 0.36 | -8.99 | 191.83 | 66.78 | 257.32 | 0.9320 | -311.0 | -295.7 | |
| 0.71 | 5.98 | 0.95 | 7.99 | -8.84 | 191.53 | 66.49 | 257.42 | 0.9300 | -558.0 | -464.1 | |
| 0.00 | 1.43 | 0.00 | 1.99 | -10.54 | 192.22 | 67.17 | 255.78 | 0.9363 | -400.0 | -314.4 | |
| 0.00 | 1.25 | 0.00 | 1.66 | -9.24 | 191.30 | 66.25 | 256.94 | 0.9290 | -572.0 | -508.3 | |
| 1.07 | 2.86 | 1.41 | 3.76 | -9.59 | 191.04 | 66.00 | 256.52 | 0.9279 | -592.6 | -514.2 | |
| 0.00 | 1.07 | 0.00 | 1.42 | -9.85 | 191.15 | 66.10 | 256.27 | 0.9289 | -192.0 | -144.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
