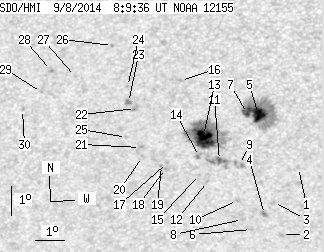

SDO HMI 2014-09-08 08:09:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.78 | 227.99 | 15.48 | 132.60 | -19.73 | 107.14 | -16.72 | 148.92 | 0.5265 | 670.3 | 532.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 08:09:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.14 | -20.78 | 109.70 | -14.17 | 153.86 | 0.5214 | 556.0 | 407.5 | |
| 0.00 | 1.96 | 0.00 | 1.17 | -23.12 | 108.88 | -14.99 | 154.63 | 0.5573 | 325.0 | 351.1 | |
| 0.00 | 3.03 | 0.00 | 1.79 | -22.01 | 108.73 | -15.14 | 153.46 | 0.5439 | 718.0 | 435.6 | |
| 0.00 | 2.95 | 0.00 | 1.75 | -22.44 | 108.38 | -15.49 | 153.31 | 0.5517 | 823.0 | 710.0 | |
| 12.76 | 76.13 | 7.32 | 43.63 | -19.01 | 108.54 | -15.33 | 150.31 | 0.5065 | 1124.4 | 542.5 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -22.98 | 107.87 | -16.00 | 153.05 | 0.5619 | 554.0 | 428.2 | |
| 1.70 | -5.00 | 0.97 | -5.00 | -18.99 | 108.18 | -15.69 | 149.71 | 0.5089 | 792.2 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.96 | -22.64 | 107.61 | -16.26 | 152.37 | 0.5594 | 621.0 | 495.6 | |
| 0.00 | 4.55 | 0.00 | 2.66 | -20.74 | 107.73 | -16.14 | 150.77 | 0.5345 | 415.0 | 615.5 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -21.99 | 107.52 | -16.35 | 151.64 | 0.5517 | 122.0 | 142.9 | |
| 1.52 | 16.15 | 0.89 | 9.48 | -20.63 | 107.07 | -16.80 | 149.68 | 0.5379 | 942.5 | 632.8 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -21.37 | 106.57 | -17.30 | 149.69 | 0.5507 | 541.0 | 384.7 | |
| 10.80 | 88.35 | 6.30 | 51.53 | -19.79 | 106.62 | -17.24 | 148.17 | 0.5309 | 1300.0 | 572.1 | |
| 0.00 | 3.57 | 0.00 | 2.10 | -20.52 | 106.40 | -17.46 | 148.60 | 0.5415 | 640.0 | 550.9 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -21.14 | 106.33 | -17.54 | 149.11 | 0.5497 | 388.0 | 316.6 | |
| 0.00 | 1.78 | 0.00 | 1.03 | -17.97 | 106.05 | -17.81 | 145.30 | 0.5132 | 788.0 | 610.5 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -20.77 | 105.29 | -18.58 | 147.27 | 0.5532 | 661.0 | 493.4 | |
| 0.00 | 1.70 | 0.00 | 1.01 | -20.98 | 105.19 | -18.68 | 147.35 | 0.5564 | 708.0 | 591.9 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -20.88 | 105.07 | -18.80 | 147.08 | 0.5562 | 694.0 | 620.2 | |
| 0.00 | 1.78 | 0.00 | 1.06 | -20.60 | 104.45 | -19.41 | 145.95 | 0.5578 | 643.0 | 498.5 | |
| 0.00 | 1.96 | 0.00 | 1.17 | -20.29 | 104.43 | -19.44 | 145.58 | 0.5544 | 785.0 | 668.8 | |
| 0.00 | 3.39 | 0.00 | 1.99 | -18.97 | 104.42 | -19.44 | 144.11 | 0.5391 | 760.0 | 627.2 | |
| 0.00 | 3.48 | 0.00 | 2.04 | -18.78 | 104.21 | -19.66 | 143.59 | 0.5387 | 898.0 | 733.7 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -18.24 | 104.24 | -19.63 | 143.01 | 0.5322 | 693.0 | 620.9 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -19.97 | 103.99 | -19.88 | 144.64 | 0.5543 | 655.0 | 538.9 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.90 | 103.89 | -19.97 | 140.87 | 0.5200 | -631.0 | -560.6 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -17.99 | 102.51 | -21.36 | 140.36 | 0.5451 | -642.0 | -534.5 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -17.83 | 101.71 | -22.16 | 139.13 | 0.5509 | -830.0 | -747.9 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -18.59 | 101.26 | -22.61 | 139.49 | 0.5632 | -552.0 | -462.1 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -19.20 | 100.51 | -23.36 | 139.31 | 0.5765 | -555.0 | -488.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
