SDO HMI 2014-09-08 08:09:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 219.46 | 1223.75 | 136.35 | 760.43 | 15.02 | 86.87 | -37.00 | 74.59 | 0.6053 | 164.2 | -48.3 | |
|
previous
or next observation for the same group /

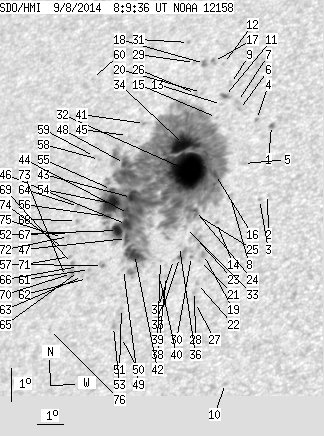

back to the solar disc SDO HMI 2014-09-08 08:09:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 2.50 | 0.43 | 1.49 | 17.25 | 90.59 | -33.27 | 69.74 | 0.5607 | -775.9 | -665.7 | |
| 0.00 | 0.71 | 0.00 | 0.42 | 15.14 | 90.84 | -33.03 | 73.38 | 0.5512 | -587.0 | -607.9 | |
| 0.00 | 1.16 | 0.00 | 0.69 | 14.97 | 90.57 | -33.30 | 73.77 | 0.5545 | 581.0 | 440.5 | |
| 0.00 | 1.52 | 0.00 | 0.91 | 17.39 | 89.99 | -33.88 | 69.71 | 0.5692 | -553.0 | -468.6 | |
| 0.00 | 2.59 | 0.00 | 1.56 | 16.02 | 89.77 | -34.09 | 72.16 | 0.5682 | 173.0 | 221.2 | |
| 0.00 | 1.52 | 0.00 | 0.92 | 17.65 | 89.28 | -34.58 | 69.53 | 0.5795 | 622.0 | 529.7 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 17.89 | 89.15 | -34.71 | 69.18 | 0.5820 | 640.0 | 462.9 | |
| 0.00 | 3.30 | 0.00 | 1.99 | 14.96 | 89.48 | -34.39 | 74.10 | 0.5695 | 215.0 | 309.7 | |
| 0.00 | 2.41 | 0.00 | 1.47 | 18.42 | 88.76 | -35.11 | 68.44 | 0.5889 | 183.0 | 115.3 | |
| 0.00 | 1.70 | 0.00 | 1.01 | 9.33 | 90.11 | -33.76 | 84.03 | 0.5535 | -449.0 | -321.8 | |
| 1.52 | 4.73 | 0.93 | 2.89 | 18.01 | 88.62 | -35.25 | 69.17 | 0.5894 | 887.5 | 703.2 | |
| 0.00 | 1.16 | 0.00 | 0.71 | 19.02 | 88.34 | -35.52 | 67.62 | 0.5963 | 764.0 | 540.7 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 17.76 | 88.56 | -35.31 | 69.61 | 0.5894 | 203.0 | 185.2 | |
| 0.00 | 1.34 | 0.00 | 0.81 | 14.16 | 89.09 | -34.78 | 75.57 | 0.5733 | -513.0 | -364.5 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 17.35 | 88.46 | -35.41 | 70.33 | 0.5895 | 490.0 | 348.4 | |
| 2.86 | 1109.14 | 1.73 | 689.57 | 15.62 | 88.78 | -35.09 | 73.15 | 0.5806 | 1127.3 | -37.8 | |
| 0.00 | 2.50 | 0.00 | 1.55 | 19.05 | 87.94 | -35.93 | 67.72 | 0.6016 | 731.0 | 650.9 | |
| 0.00 | 3.12 | 0.00 | 1.94 | 18.97 | 87.61 | -36.26 | 67.98 | 0.6056 | 835.0 | 717.6 | |
| 0.00 | 2.68 | 0.00 | 1.62 | 13.16 | 88.76 | -35.10 | 77.37 | 0.5760 | -688.0 | -535.6 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 18.07 | 87.71 | -36.16 | 69.39 | 0.6015 | 544.0 | 447.7 | |
| 0.00 | 1.25 | 0.00 | 0.76 | 12.97 | 88.64 | -35.23 | 77.73 | 0.5774 | -569.0 | -497.4 | |
| 0.00 | 1.78 | 0.00 | 1.08 | 12.27 | 88.68 | -35.19 | 78.93 | 0.5760 | -734.0 | -613.6 | |
| 0.00 | 15.26 | 0.00 | 9.27 | 13.63 | 88.42 | -35.45 | 76.64 | 0.5815 | 26.0 | 38.7 | |
| 1.70 | -16.00 | 1.03 | -16.00 | 14.47 | 88.23 | -35.64 | 75.24 | 0.5856 | 579.1 | 999999 | |
| 1.34 | -16.00 | 0.82 | -16.00 | 14.35 | 88.25 | -35.62 | 75.44 | 0.5851 | 553.1 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.05 | 18.02 | 87.48 | -36.39 | 69.55 | 0.6043 | 428.0 | 345.6 | |
| 0.00 | 2.05 | 0.00 | 1.24 | 11.69 | 88.69 | -35.18 | 79.94 | 0.5752 | -671.0 | -477.7 | |
| 0.00 | 1.87 | 0.00 | 1.13 | 12.02 | 88.60 | -35.27 | 79.38 | 0.5768 | -763.0 | -616.7 | |
| 0.00 | 1.70 | 0.00 | 1.06 | 18.97 | 87.21 | -36.66 | 68.12 | 0.6107 | 519.0 | 387.3 | |
| 0.00 | 1.52 | 0.00 | 0.92 | 13.07 | 88.32 | -35.55 | 77.61 | 0.5820 | -554.0 | -449.4 | |
| 0.00 | 1.25 | 0.00 | 0.79 | 19.56 | 86.81 | -37.06 | 67.32 | 0.6177 | 591.0 | 500.5 | |
| 99.33 | -16.00 | 61.13 | -16.00 | 15.66 | 87.69 | -36.18 | 73.37 | 0.5954 | 1168.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 13.93 | 87.98 | -35.89 | 76.20 | 0.5880 | 73.0 | 56.7 | |
| 29.81 | -16.00 | 18.45 | -16.00 | 16.44 | 87.37 | -36.50 | 72.17 | 0.6015 | 1077.8 | 999999 | |
| 1.07 | 10.00 | 0.65 | 6.10 | 13.01 | 87.87 | -36.00 | 77.79 | 0.5881 | -489.4 | -122.7 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 13.34 | 87.82 | -36.05 | 77.24 | 0.5893 | -435.0 | -372.0 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 12.93 | 87.65 | -36.21 | 77.96 | 0.5910 | -649.0 | -566.2 | |
| 0.00 | 1.70 | 0.00 | 1.04 | 12.40 | 87.47 | -36.40 | 78.88 | 0.5928 | -691.0 | -575.4 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 12.87 | 87.16 | -36.70 | 78.15 | 0.5976 | -628.0 | -507.7 | |
| 0.00 | 1.70 | 0.00 | 1.04 | 12.38 | 87.20 | -36.66 | 78.95 | 0.5964 | -489.0 | -376.0 | |
| 0.00 | 0.71 | 0.00 | 0.45 | 16.97 | 85.70 | -38.17 | 71.78 | 0.6246 | 552.0 | 398.1 | |
| 20.62 | -16.00 | 12.88 | -16.00 | 12.97 | 86.13 | -37.74 | 78.12 | 0.6117 | -942.3 | 999999 | |
| 3.93 | -16.00 | 2.47 | -16.00 | 14.69 | 85.68 | -38.18 | 75.42 | 0.6201 | -929.9 | 999999 | |
| 8.03 | -16.00 | 5.06 | -16.00 | 14.19 | 85.66 | -38.20 | 76.21 | 0.6196 | -851.3 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 16.55 | 85.11 | -38.76 | 72.58 | 0.6312 | 34.0 | -27.2 | |
| 6.60 | -16.00 | 4.16 | -16.00 | 13.85 | 85.65 | -38.22 | 76.76 | 0.6193 | -1072.6 | 999999 | |
| 4.19 | -16.00 | 2.64 | -16.00 | 13.43 | 85.73 | -38.14 | 77.43 | 0.6176 | -927.8 | 999999 | |
| 3.21 | -16.00 | 2.04 | -16.00 | 15.69 | 85.19 | -38.68 | 73.91 | 0.6285 | -544.5 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.12 | 12.49 | 85.78 | -38.09 | 78.95 | 0.6159 | -504.0 | -447.2 | |
| 0.00 | 1.16 | 0.00 | 0.72 | 10.44 | 86.03 | -37.84 | 82.29 | 0.6111 | -497.0 | -448.9 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 11.31 | 85.90 | -37.97 | 80.86 | 0.6133 | -629.0 | -524.4 | |
| 8.12 | -16.00 | 5.13 | -16.00 | 13.65 | 85.33 | -38.54 | 77.14 | 0.6232 | -956.7 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.23 | 10.74 | 85.67 | -38.20 | 81.80 | 0.6161 | -646.0 | -548.5 | |
| 20.97 | -16.00 | 13.34 | -16.00 | 14.44 | 84.93 | -38.93 | 75.94 | 0.6296 | -1075.0 | 999999 | |
| 1.70 | -16.00 | 1.08 | -16.00 | 14.87 | 84.84 | -39.02 | 75.29 | 0.6315 | -758.3 | 999999 | |
| 3.30 | -16.00 | 2.10 | -16.00 | 14.04 | 84.85 | -39.01 | 76.59 | 0.6301 | -858.3 | 999999 | |
| 0.45 | 3.39 | 0.28 | 2.15 | 12.55 | 84.94 | -38.93 | 78.96 | 0.6272 | -537.8 | -414.5 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 15.74 | 84.16 | -39.71 | 74.06 | 0.6418 | -733.0 | -655.4 | |
| 0.00 | 1.16 | 0.00 | 0.75 | 15.81 | 83.94 | -39.93 | 73.99 | 0.6448 | -587.0 | -517.7 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 18.17 | 83.25 | -40.62 | 70.55 | 0.6583 | 423.0 | 427.3 | |
| 0.00 | 1.43 | 0.00 | 0.91 | 12.39 | 84.45 | -39.42 | 79.26 | 0.6335 | -611.0 | -511.3 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 12.11 | 84.42 | -39.45 | 79.70 | 0.6337 | -677.0 | -595.7 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 12.15 | 84.21 | -39.66 | 79.65 | 0.6365 | -464.0 | -425.9 | |
| 0.00 | 1.52 | 0.00 | 0.98 | 14.25 | 83.63 | -40.23 | 76.45 | 0.6462 | -545.0 | -502.6 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 12.29 | 84.02 | -39.85 | 79.45 | 0.6391 | -658.0 | -595.8 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 12.44 | 83.99 | -39.87 | 79.22 | 0.6396 | -586.0 | -539.0 | |
| 0.00 | 2.05 | 0.00 | 1.33 | 13.46 | 83.76 | -40.11 | 77.65 | 0.6437 | -517.0 | -489.5 | |
| 0.00 | 0.80 | 0.00 | 0.52 | 13.82 | 83.64 | -40.22 | 77.11 | 0.6456 | -441.0 | -372.8 | |
| 0.00 | 2.23 | 0.00 | 1.44 | 12.51 | 83.74 | -40.13 | 79.13 | 0.6430 | -735.0 | -566.4 | |
| 0.00 | 3.75 | 0.00 | 2.42 | 12.21 | 83.75 | -40.11 | 79.60 | 0.6425 | -627.0 | -571.8 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 12.72 | 83.58 | -40.29 | 78.84 | 0.6452 | -492.0 | -431.3 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 13.31 | 83.42 | -40.45 | 77.93 | 0.6479 | -389.0 | -362.2 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 12.10 | 83.53 | -40.34 | 79.79 | 0.6454 | -431.0 | -412.7 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 12.94 | 83.29 | -40.58 | 78.52 | 0.6492 | -500.0 | -434.9 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 13.27 | 83.18 | -40.68 | 78.03 | 0.6509 | -250.0 | -207.6 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 10.46 | 83.16 | -40.71 | 82.36 | 0.6494 | -440.0 | -364.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
