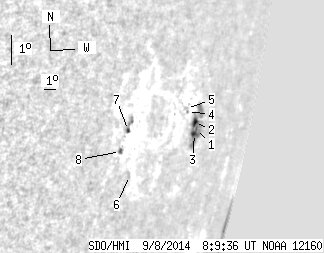

SDO HMI 2014-09-08 08:09:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.59 | 48.46 | 14.17 | 92.41 | -9.63 | 196.99 | 73.12 | 257.89 | 0.9652 | 165.0 | -76.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 08:09:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 34.36 | 0.55 | 71.00 | -9.80 | 198.41 | 74.55 | 258.00 | 0.9721 | -119.7 | -60.6 | |
| 2.77 | -1.00 | 5.59 | -1.00 | -9.56 | 198.04 | 74.17 | 258.17 | 0.9704 | 335.6 | 999999 | |
| 2.59 | -1.00 | 5.29 | -1.00 | -9.93 | 198.27 | 74.40 | 257.83 | 0.9716 | 330.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.68 | -9.09 | 197.00 | 73.13 | 258.46 | 0.9656 | 380.0 | 287.7 | |
| 0.00 | 2.50 | 0.00 | 4.62 | -8.98 | 196.83 | 72.96 | 258.55 | 0.9648 | 479.0 | 461.9 | |
| 0.00 | 1.61 | 0.00 | 2.37 | -10.50 | 192.22 | 68.36 | 256.07 | 0.9430 | -298.0 | -216.8 | |
| 0.98 | 6.69 | 1.38 | 9.40 | -9.01 | 191.50 | 67.63 | 257.48 | 0.9371 | -405.2 | -450.9 | |
| 0.98 | 2.41 | 1.36 | 3.34 | -9.62 | 191.09 | 67.23 | 256.76 | 0.9354 | -533.7 | -431.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
