SDO HMI 2014-09-08 08:09:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.18 | 32.13 | 5.53 | 17.34 | 9.39 | 147.17 | 23.31 | 276.97 | 0.3948 | -133.4 | -1.8 | |
|
previous
or next observation for the same group /

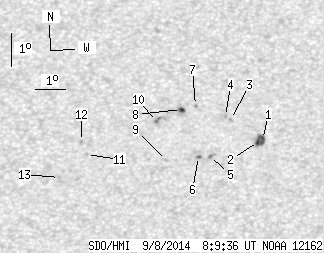

back to the solar disc SDO HMI 2014-09-08 08:09:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.59 | 9.82 | 1.42 | 5.37 | 9.17 | 149.31 | 25.44 | 276.14 | 0.4283 | -843.7 | -583.1 | |
| 4.02 | -1.00 | 2.20 | -1.00 | 9.12 | 149.17 | 25.30 | 276.03 | 0.4261 | -1026.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 9.83 | 148.28 | 24.41 | 277.86 | 0.4128 | -653.0 | -542.3 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 9.93 | 148.12 | 24.25 | 278.13 | 0.4104 | -428.0 | -339.6 | |
| 0.36 | 2.68 | 0.19 | 1.45 | 8.75 | 147.49 | 23.63 | 275.29 | 0.3995 | -754.0 | -638.2 | |
| 0.71 | 2.05 | 0.38 | 1.11 | 8.77 | 147.13 | 23.26 | 275.37 | 0.3937 | -854.4 | -677.2 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 10.31 | 147.14 | 23.28 | 279.29 | 0.3956 | 576.0 | 414.2 | |
| 2.05 | 3.66 | 1.10 | 1.97 | 10.21 | 146.67 | 22.80 | 279.16 | 0.3879 | 809.0 | 517.3 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 8.70 | 146.06 | 22.20 | 275.29 | 0.3766 | -113.0 | -75.4 | |
| 0.45 | 5.35 | 0.24 | 2.86 | 9.89 | 145.81 | 21.95 | 278.52 | 0.3739 | 973.0 | 506.7 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 9.00 | 143.46 | 19.59 | 276.51 | 0.3348 | 462.0 | 342.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 9.40 | 143.32 | 19.46 | 277.74 | 0.3331 | 724.0 | 654.7 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 8.34 | 142.55 | 18.68 | 274.64 | 0.3194 | 797.0 | 655.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
