SDO HMI 2014-09-08 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.78 | 40.69 | 13.74 | 81.00 | -9.59 | 197.22 | 73.83 | 258.07 | 0.9682 | 197.9 | -85.7 | |
|
previous
or next observation for the same group /

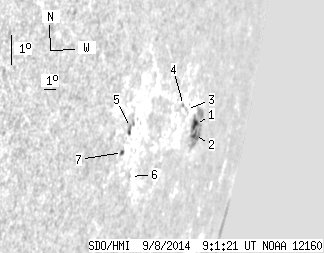

back to the solar disc SDO HMI 2014-09-08 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.02 | 30.43 | 8.42 | 65.09 | -9.58 | 198.20 | 74.81 | 258.26 | 0.9730 | 354.0 | -64.1 | |
| 1.96 | -1.00 | 4.18 | -1.00 | -9.94 | 198.31 | 74.92 | 257.92 | 0.9736 | 286.5 | 999999 | |
| 0.00 | 1.52 | 0.00 | 2.89 | -8.94 | 196.81 | 73.41 | 258.67 | 0.9667 | 492.0 | 425.4 | |
| 0.00 | 1.07 | 0.00 | 1.99 | -8.77 | 196.39 | 73.00 | 258.77 | 0.9647 | 472.0 | 433.9 | |
| 0.00 | 4.82 | 0.00 | 6.91 | -8.85 | 191.49 | 68.09 | 257.74 | 0.9396 | -645.0 | -479.0 | |
| 0.00 | 0.89 | 0.00 | 1.34 | -10.47 | 192.19 | 68.80 | 256.21 | 0.9454 | -367.0 | -338.4 | |
| 0.80 | 1.96 | 1.14 | 2.78 | -9.59 | 191.13 | 67.73 | 256.90 | 0.9384 | -544.0 | -446.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
