SDO HMI 2014-09-08 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 224.30 | 1187.07 | 136.71 | 723.32 | 15.08 | 86.82 | -35.48 | 74.13 | 0.5850 | 75.9 | -30.2 | |
|
previous
or next observation for the same group /

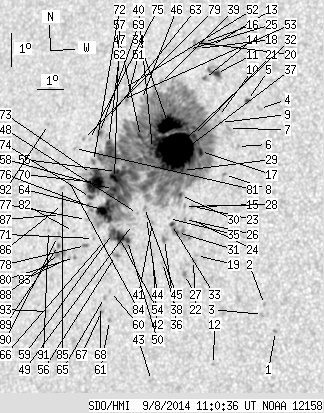

back to the solar disc SDO HMI 2014-09-08 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.82 | 10.46 | 92.21 | -30.09 | 81.59 | 0.5004 | -792.0 | -622.9 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 11.25 | 91.73 | -30.57 | 80.09 | 0.5084 | -794.0 | -642.9 | |
| 0.00 | 1.96 | 0.00 | 1.13 | 10.94 | 91.69 | -30.61 | 80.70 | 0.5086 | -562.0 | -588.5 | |
| 0.00 | 2.41 | 0.00 | 1.41 | 17.18 | 90.65 | -31.66 | 69.20 | 0.5385 | -675.0 | -502.6 | |
| 1.25 | 2.41 | 0.74 | 1.42 | 17.39 | 90.16 | -32.15 | 69.02 | 0.5459 | -598.9 | -457.9 | |
| 0.00 | 1.70 | 0.00 | 1.00 | 15.97 | 90.05 | -32.25 | 71.62 | 0.5427 | 393.0 | 247.2 | |
| 0.00 | 2.23 | 0.00 | 1.32 | 16.50 | 89.62 | -32.69 | 70.83 | 0.5503 | 647.0 | 505.9 | |
| 0.00 | 1.52 | 0.00 | 0.89 | 15.09 | 89.72 | -32.58 | 73.33 | 0.5449 | 581.0 | 529.1 | |
| 0.00 | 1.52 | 0.00 | 0.90 | 16.66 | 89.29 | -33.02 | 70.67 | 0.5554 | 723.0 | 520.0 | |
| 0.00 | 1.16 | 0.00 | 0.69 | 16.84 | 89.18 | -33.13 | 70.39 | 0.5574 | 689.0 | 643.2 | |
| 3.39 | 12.40 | 2.03 | 7.45 | 18.14 | 88.83 | -33.47 | 68.26 | 0.5664 | 846.6 | 507.4 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 9.33 | 90.10 | -32.20 | 83.97 | 0.5308 | -742.0 | -587.9 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 18.99 | 88.45 | -33.85 | 66.98 | 0.5745 | 709.0 | 586.8 | |
| 0.54 | 2.94 | 0.32 | 1.77 | 17.96 | 88.41 | -33.89 | 68.74 | 0.5714 | 783.0 | 551.6 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 14.07 | 89.15 | -33.16 | 75.33 | 0.5505 | -573.0 | -470.4 | |
| 0.00 | 2.41 | 0.00 | 1.46 | 19.06 | 88.13 | -34.18 | 67.00 | 0.5790 | 779.0 | 695.4 | |
| 2.85 | 1027.46 | 1.70 | 626.10 | 15.73 | 88.71 | -33.59 | 72.50 | 0.5606 | 1182.5 | 5.6 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 18.86 | 87.94 | -34.36 | 67.41 | 0.5807 | 849.0 | 710.9 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 12.57 | 89.08 | -33.22 | 78.07 | 0.5487 | -741.0 | -656.0 | |
| 0.00 | 1.61 | 0.00 | 0.98 | 19.03 | 87.78 | -34.52 | 67.18 | 0.5834 | 779.0 | 665.7 | |
| 2.94 | -17.00 | 1.77 | -17.00 | 16.20 | 88.36 | -33.95 | 71.80 | 0.5667 | 1207.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 12.41 | 88.99 | -33.31 | 78.37 | 0.5497 | -844.0 | -727.5 | |
| 0.00 | 1.61 | 0.00 | 0.96 | 14.04 | 88.71 | -33.60 | 75.50 | 0.5567 | 794.0 | 648.5 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 13.65 | 88.73 | -33.57 | 76.20 | 0.5555 | 474.0 | 345.6 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 18.80 | 87.60 | -34.70 | 67.64 | 0.5849 | 690.0 | 563.5 | |
| 0.00 | 1.43 | 0.00 | 0.85 | 13.63 | 88.47 | -33.83 | 76.29 | 0.5591 | 412.0 | 323.1 | |
| 0.00 | 2.85 | 0.00 | 1.69 | 11.97 | 88.72 | -33.58 | 79.22 | 0.5530 | -922.0 | -796.9 | |
| 0.00 | 1.43 | 0.00 | 0.85 | 14.02 | 88.41 | -33.90 | 75.60 | 0.5608 | 602.0 | 426.0 | |
| 0.27 | -17.00 | 0.16 | -17.00 | 15.11 | 88.14 | -34.16 | 73.76 | 0.5668 | 921.0 | 999999 | |
| 1.25 | -17.00 | 0.75 | -17.00 | 14.34 | 88.20 | -34.10 | 75.08 | 0.5643 | 619.5 | 999999 | |
| 0.89 | 18.82 | 0.53 | 11.24 | 13.22 | 88.28 | -34.03 | 77.06 | 0.5611 | -426.3 | -270.2 | |
| 97.96 | -17.00 | 59.14 | -17.00 | 15.72 | 87.72 | -34.58 | 72.82 | 0.5740 | 976.3 | 999999 | |
| 1.07 | -31.00 | 0.64 | -31.00 | 13.45 | 88.01 | -34.29 | 76.71 | 0.5652 | -602.8 | 999999 | |
| 25.96 | -17.00 | 15.77 | -17.00 | 16.47 | 87.35 | -34.96 | 71.66 | 0.5811 | 953.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 13.62 | 87.87 | -34.43 | 76.44 | 0.5675 | 257.0 | 134.0 | |
| 0.00 | 3.30 | 0.00 | 1.98 | 12.97 | 87.83 | -34.48 | 77.58 | 0.5670 | -523.0 | -509.6 | |
| 2.50 | -17.00 | 1.51 | -17.00 | 15.21 | 87.40 | -34.90 | 73.79 | 0.5772 | 600.3 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.96 | 12.27 | 87.86 | -34.45 | 78.81 | 0.5656 | -749.0 | -601.3 | |
| 0.00 | 4.10 | 0.00 | 2.52 | 17.69 | 86.77 | -35.53 | 69.79 | 0.5922 | -78.0 | -4.1 | |
| 0.27 | -17.00 | 0.16 | -17.00 | 15.70 | 86.88 | -35.42 | 73.10 | 0.5853 | 573.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.81 | 13.46 | 87.29 | -35.01 | 76.84 | 0.5752 | -758.0 | -625.1 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 12.49 | 87.45 | -34.86 | 78.49 | 0.5716 | -792.0 | -688.9 | |
| 0.00 | 2.14 | 0.00 | 1.28 | 8.69 | 87.90 | -34.41 | 85.18 | 0.5627 | -225.0 | -275.5 | |
| 0.00 | 1.78 | 0.00 | 1.08 | 13.59 | 87.04 | -35.26 | 76.66 | 0.5789 | -796.0 | -688.5 | |
| 0.00 | 1.78 | 0.00 | 1.08 | 13.89 | 86.91 | -35.39 | 76.17 | 0.5812 | -800.0 | -721.8 | |
| 0.00 | 1.34 | 0.00 | 0.83 | 17.15 | 86.15 | -36.16 | 70.89 | 0.5989 | -180.0 | -151.3 | |
| 3.48 | -17.00 | 2.14 | -17.00 | 16.03 | 86.35 | -35.95 | 72.69 | 0.5933 | 273.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 13.69 | 86.68 | -35.62 | 76.56 | 0.5840 | 489.0 | 320.6 | |
| 0.00 | 3.30 | 0.00 | 2.01 | 13.34 | 86.55 | -35.76 | 77.17 | 0.5853 | -428.0 | -405.0 | |
| 2.05 | -17.00 | 1.25 | -17.00 | 12.85 | 86.44 | -35.86 | 78.04 | 0.5861 | -1014.6 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.55 | 17.05 | 85.58 | -36.72 | 71.23 | 0.6060 | 605.0 | 419.7 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 17.44 | 85.37 | -36.93 | 70.66 | 0.6098 | 358.0 | 380.0 | |
| 0.00 | 2.41 | 0.00 | 1.50 | 17.10 | 85.41 | -36.89 | 71.20 | 0.6084 | 261.0 | 347.6 | |
| 9.46 | -17.00 | 5.79 | -17.00 | 12.92 | 86.12 | -36.18 | 77.97 | 0.5905 | -982.9 | 999999 | |
| 1.96 | -17.00 | 1.21 | -17.00 | 14.90 | 85.64 | -36.66 | 74.74 | 0.6003 | -1137.5 | 999999 | |
| 0.00 | 2.85 | 0.00 | 1.75 | 12.36 | 86.06 | -36.25 | 78.92 | 0.5907 | -754.0 | -683.0 | |
| 4.64 | -17.00 | 2.87 | -17.00 | 14.68 | 85.61 | -36.70 | 75.11 | 0.6004 | -969.9 | 999999 | |
| 3.30 | -17.00 | 2.04 | -17.00 | 14.35 | 85.63 | -36.67 | 75.66 | 0.5994 | -974.1 | 999999 | |
| 4.46 | -17.00 | 2.74 | -17.00 | 13.02 | 85.83 | -36.47 | 77.85 | 0.5946 | -832.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.71 | 11.26 | 86.03 | -36.27 | 80.79 | 0.5900 | -708.0 | -606.4 | |
| 0.00 | 1.61 | 0.00 | 0.98 | 10.39 | 86.12 | -36.19 | 82.27 | 0.5883 | -718.0 | -618.2 | |
| 1.78 | -17.00 | 1.11 | -17.00 | 15.73 | 85.16 | -37.14 | 73.50 | 0.6084 | -555.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 16.48 | 84.96 | -37.35 | 72.32 | 0.6128 | -420.0 | -407.1 | |
| 20.43 | -17.00 | 12.63 | -17.00 | 13.69 | 85.48 | -36.82 | 76.77 | 0.6004 | -1019.0 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.99 | 11.07 | 85.83 | -36.47 | 81.14 | 0.5926 | -717.0 | -630.4 | |
| 0.00 | 1.25 | 0.00 | 0.77 | 12.78 | 85.56 | -36.74 | 78.28 | 0.5980 | -627.0 | -514.2 | |
| 0.00 | 1.25 | 0.00 | 0.77 | 10.64 | 85.78 | -36.53 | 81.87 | 0.5931 | -622.0 | -567.4 | |
| 0.00 | 1.25 | 0.00 | 0.77 | 10.78 | 85.72 | -36.59 | 81.62 | 0.5940 | -676.0 | -576.9 | |
| 1.52 | 6.24 | 0.95 | 3.91 | 16.03 | 84.74 | -37.57 | 73.10 | 0.6146 | -563.3 | -425.1 | |
| 27.30 | -17.00 | 17.02 | -17.00 | 14.51 | 84.90 | -37.41 | 75.54 | 0.6096 | -958.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 12.81 | 85.13 | -37.17 | 78.29 | 0.6039 | -593.0 | -481.6 | |
| 0.00 | 2.77 | 0.00 | 1.73 | 15.14 | 84.69 | -37.61 | 74.56 | 0.6134 | -746.0 | -635.3 | |
| 0.27 | -17.00 | 0.17 | -17.00 | 14.77 | 84.69 | -37.62 | 75.16 | 0.6128 | -539.0 | 999999 | |
| 1.70 | -17.00 | 1.06 | -17.00 | 14.04 | 84.79 | -37.51 | 76.33 | 0.6102 | -839.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 15.79 | 84.39 | -37.91 | 73.57 | 0.6187 | -808.0 | -607.6 | |
| 0.45 | 4.37 | 0.28 | 2.73 | 13.79 | 84.72 | -37.58 | 76.75 | 0.6108 | -567.2 | -498.8 | |
| 0.00 | 1.61 | 0.00 | 1.00 | 13.37 | 84.76 | -37.54 | 77.44 | 0.6096 | -171.0 | -97.7 | |
| 0.00 | 2.41 | 0.00 | 1.50 | 12.58 | 84.86 | -37.44 | 78.72 | 0.6073 | -629.0 | -456.6 | |
| 0.00 | 1.25 | 0.00 | 0.79 | 15.81 | 84.15 | -38.15 | 73.61 | 0.6219 | -790.0 | -637.1 | |
| 0.00 | 1.43 | 0.00 | 0.89 | 12.19 | 84.50 | -37.81 | 79.41 | 0.6118 | -771.0 | -599.8 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 15.48 | 83.86 | -38.44 | 74.20 | 0.6250 | -599.0 | -524.5 | |
| 0.00 | 1.16 | 0.00 | 0.73 | 12.97 | 84.32 | -37.98 | 78.15 | 0.6150 | -758.0 | -576.1 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 12.17 | 84.30 | -38.00 | 79.45 | 0.6145 | -668.0 | -534.0 | |
| 0.00 | 0.71 | 0.00 | 0.45 | 14.49 | 83.83 | -38.47 | 75.77 | 0.6237 | -542.0 | -484.5 | |
| 0.00 | 1.87 | 0.00 | 1.19 | 14.26 | 83.64 | -38.67 | 76.17 | 0.6259 | -562.0 | -465.9 | |
| 0.00 | 2.41 | 0.00 | 1.52 | 13.75 | 83.74 | -38.57 | 76.98 | 0.6238 | -529.0 | -391.0 | |
| 0.00 | 1.78 | 0.00 | 1.13 | 13.44 | 83.72 | -38.59 | 77.47 | 0.6236 | -639.0 | -489.4 | |
| 0.00 | 7.32 | 0.00 | 4.61 | 12.26 | 83.89 | -38.41 | 79.35 | 0.6200 | -595.0 | -589.9 | |
| 0.36 | 1.61 | 0.23 | 1.01 | 12.50 | 83.81 | -38.49 | 78.97 | 0.6214 | -647.0 | -577.8 | |
| 0.00 | 3.12 | 0.00 | 1.97 | 12.77 | 83.72 | -38.58 | 78.55 | 0.6228 | -504.0 | -479.6 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 12.92 | 83.34 | -38.97 | 78.35 | 0.6281 | -586.0 | -506.5 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 16.12 | 82.66 | -39.64 | 73.44 | 0.6417 | -643.0 | -568.9 | |
| 0.00 | 1.34 | 0.00 | 0.84 | 10.48 | 83.70 | -38.60 | 82.24 | 0.6214 | -525.0 | -436.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
