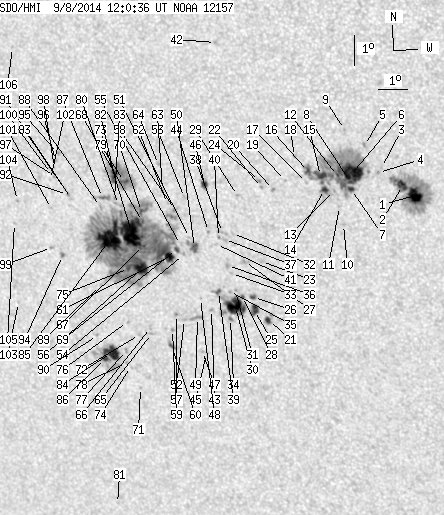

SDO HMI 2014-09-08 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 232.11 | 1050.03 | 137.92 | 623.33 | -13.78 | 95.88 | -25.88 | 129.55 | 0.5493 | -51.3 | -107.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.29 | 106.32 | 7.37 | 58.94 | -12.20 | 103.36 | -18.40 | 136.63 | 0.4511 | 1213.1 | 484.2 | |
| 6.51 | -1.00 | 3.61 | -1.00 | -11.90 | 102.99 | -18.77 | 135.59 | 0.4517 | 1038.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -11.35 | 102.34 | -19.41 | 133.74 | 0.4528 | 853.0 | 711.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -11.52 | 102.23 | -19.52 | 133.84 | 0.4558 | 903.0 | 783.2 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -10.68 | 101.84 | -19.92 | 131.88 | 0.4515 | 679.0 | 600.6 | |
| 24.26 | 162.70 | 13.57 | 91.24 | -11.55 | 101.38 | -20.38 | 132.66 | 0.4658 | 1111.6 | 547.1 | |
| 2.23 | -6.00 | 1.25 | -6.00 | -12.10 | 101.30 | -20.45 | 133.42 | 0.4724 | 801.7 | 999999 | |
| 1.25 | -6.00 | 0.70 | -6.00 | -11.85 | 101.29 | -20.47 | 133.00 | 0.4699 | 805.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -10.20 | 101.22 | -20.54 | 130.19 | 0.4539 | -406.0 | -339.3 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -13.24 | 100.94 | -20.82 | 134.66 | 0.4883 | 778.0 | 639.2 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -12.66 | 100.86 | -20.90 | 133.68 | 0.4832 | 432.0 | 385.4 | |
| 0.89 | -6.00 | 0.50 | -6.00 | -11.67 | 100.87 | -20.88 | 132.15 | 0.4728 | 819.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -12.16 | 100.73 | -21.02 | 132.73 | 0.4793 | 602.0 | 587.6 | |
| 2.23 | -6.00 | 1.26 | -6.00 | -12.14 | 100.40 | -21.35 | 132.26 | 0.4828 | 803.7 | 999999 | |
| 6.33 | -6.00 | 3.57 | -6.00 | -11.70 | 100.31 | -21.45 | 131.43 | 0.4795 | 770.6 | 999999 | |
| 2.50 | -6.00 | 1.41 | -6.00 | -11.59 | 99.92 | -21.84 | 130.74 | 0.4829 | 651.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -11.95 | 99.82 | -21.93 | 131.18 | 0.4875 | 375.0 | 290.1 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -11.13 | 99.49 | -22.26 | 129.46 | 0.4834 | 671.0 | 442.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -11.92 | 99.12 | -22.63 | 130.24 | 0.4952 | 396.0 | 347.5 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -12.22 | 98.69 | -23.06 | 130.18 | 0.5031 | 675.0 | 535.2 | |
| 2.77 | 6.15 | 1.64 | 3.65 | -16.51 | 98.04 | -23.72 | 135.50 | 0.5523 | 640.9 | 575.6 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -12.18 | 98.29 | -23.46 | 129.63 | 0.5073 | 596.0 | 450.5 | |
| 0.00 | 1.87 | 0.00 | 1.10 | -14.58 | 98.04 | -23.72 | 132.87 | 0.5332 | 674.0 | 536.1 | |
| 0.00 | 1.69 | 0.00 | 0.97 | -11.96 | 98.25 | -23.51 | 129.23 | 0.5058 | 811.0 | 674.1 | |
| 5.62 | 7.85 | 3.34 | 4.66 | -16.20 | 97.60 | -24.16 | 134.57 | 0.5538 | 766.0 | 549.7 | |
| 1.61 | 2.94 | 0.95 | 1.74 | -15.77 | 97.62 | -24.14 | 134.02 | 0.5494 | 875.4 | 758.1 | |
| 0.00 | 4.28 | 0.00 | 2.52 | -14.61 | 97.45 | -24.30 | 132.22 | 0.5398 | 747.0 | 584.9 | |
| 0.89 | 43.53 | 0.53 | 25.99 | -15.76 | 97.24 | -24.51 | 133.57 | 0.5532 | 828.3 | 296.6 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -12.48 | 97.45 | -24.30 | 129.09 | 0.5198 | -782.0 | -638.1 | |
| 22.48 | -28.00 | 13.41 | -28.00 | -16.11 | 96.95 | -24.80 | 133.70 | 0.5596 | 764.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -15.58 | 97.02 | -24.73 | 133.06 | 0.5537 | 829.0 | 683.9 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -13.72 | 97.15 | -24.61 | 130.59 | 0.5348 | 678.0 | 554.5 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -15.03 | 96.96 | -24.80 | 132.23 | 0.5492 | 714.0 | 552.7 | |
| 0.00 | 2.05 | 0.00 | 1.23 | -16.51 | 96.72 | -25.03 | 133.98 | 0.5659 | 465.0 | 364.5 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -15.62 | 96.81 | -24.95 | 132.88 | 0.5564 | 789.0 | 671.8 | |
| 0.00 | 2.14 | 0.00 | 1.27 | -14.77 | 96.85 | -24.90 | 131.75 | 0.5479 | 759.0 | 628.2 | |
| 0.00 | 2.50 | 0.00 | 1.47 | -13.93 | 96.85 | -24.91 | 130.55 | 0.5400 | 608.0 | 544.6 | |
| 0.00 | 3.84 | 0.00 | 2.25 | -13.71 | 96.81 | -24.95 | 130.18 | 0.5384 | 682.0 | 583.7 | |
| 1.43 | -28.00 | 0.85 | -28.00 | -15.64 | 96.43 | -25.33 | 132.47 | 0.5607 | 646.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -13.88 | 96.65 | -25.11 | 130.25 | 0.5418 | 630.0 | 596.2 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -14.11 | 96.55 | -25.20 | 130.47 | 0.5450 | 654.0 | 518.1 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -7.66 | 97.11 | -24.65 | 120.74 | 0.4828 | -623.0 | -499.7 | |
| 0.00 | 1.87 | 0.00 | 1.13 | -16.25 | 96.10 | -25.66 | 132.93 | 0.5699 | 558.0 | 333.1 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -13.70 | 96.33 | -25.43 | 129.63 | 0.5438 | 427.0 | 382.6 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -17.73 | 95.70 | -26.06 | 134.41 | 0.5879 | 430.0 | 346.0 | |
| 3.30 | 5.71 | 1.93 | 3.33 | -12.19 | 96.36 | -25.40 | 127.41 | 0.5299 | -965.0 | -781.8 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -17.67 | 95.57 | -26.19 | 134.19 | 0.5887 | -202.0 | -133.9 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -15.91 | 95.76 | -25.99 | 132.10 | 0.5702 | 530.0 | 363.7 | |
| 0.00 | 4.73 | 0.00 | 2.87 | -16.55 | 95.56 | -26.19 | 132.73 | 0.5782 | 487.0 | 370.6 | |
| 4.01 | 9.10 | 2.39 | 5.41 | -14.25 | 95.77 | -25.98 | 129.81 | 0.5549 | 811.2 | 539.9 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -13.93 | 95.64 | -26.11 | 129.22 | 0.5536 | 440.0 | 339.5 | |
| 0.00 | 1.61 | 0.00 | 0.98 | -16.64 | 95.09 | -26.66 | 132.35 | 0.5840 | -287.0 | -241.5 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -12.65 | 95.62 | -26.14 | 127.31 | 0.5425 | -784.0 | -582.2 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -14.50 | 95.36 | -26.40 | 129.72 | 0.5617 | 600.0 | 464.5 | |
| 0.00 | 3.39 | 0.00 | 2.02 | -14.18 | 95.30 | -26.46 | 129.20 | 0.5596 | 382.0 | 237.1 | |
| 1.61 | 491.84 | 0.96 | 298.55 | -14.35 | 95.14 | -26.62 | 129.27 | 0.5629 | 590.9 | -422.1 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -16.49 | 94.83 | -26.92 | 131.88 | 0.5853 | -741.0 | -639.4 | |
| 0.00 | 2.41 | 0.00 | 1.43 | -13.05 | 95.26 | -26.49 | 127.53 | 0.5502 | -805.0 | -739.8 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -17.00 | 94.61 | -27.14 | 132.31 | 0.5922 | 520.0 | 375.9 | |
| 1.61 | 3.92 | 0.99 | 2.42 | -17.53 | 94.49 | -27.27 | 132.88 | 0.5984 | -688.6 | -588.6 | |
| 6.60 | -56.00 | 3.97 | -56.00 | -14.59 | 94.86 | -26.90 | 129.33 | 0.5681 | 602.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -12.87 | 95.00 | -26.75 | 127.00 | 0.5516 | -754.0 | -630.4 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -12.46 | 94.88 | -26.88 | 126.27 | 0.5496 | -828.0 | -741.6 | |
| 0.00 | 1.52 | 0.00 | 0.89 | -11.64 | 94.83 | -26.92 | 124.96 | 0.5433 | 632.0 | 495.6 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -17.18 | 93.83 | -27.92 | 131.75 | 0.6019 | -497.0 | -470.4 | |
| 0.00 | 1.96 | 0.00 | 1.21 | -16.98 | 93.83 | -27.93 | 131.49 | 0.6002 | -390.0 | -401.7 | |
| 0.80 | -56.00 | 0.49 | -56.00 | -14.29 | 93.99 | -27.77 | 128.01 | 0.5752 | -1224.3 | 999999 | |
| 0.27 | -56.00 | 0.16 | -56.00 | -13.51 | 94.05 | -27.70 | 126.97 | 0.5679 | -1194.7 | 999999 | |
| 12.67 | -56.00 | 7.71 | -56.00 | -15.05 | 93.81 | -27.95 | 128.89 | 0.5836 | 695.1 | 999999 | |
| 1.69 | -56.00 | 1.02 | -56.00 | -13.19 | 94.06 | -27.70 | 126.51 | 0.5652 | -1003.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -19.02 | 93.11 | -28.65 | 133.35 | 0.6255 | -566.0 | -482.0 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -17.24 | 93.39 | -28.36 | 131.39 | 0.6070 | -611.0 | -539.4 | |
| 39.60 | -56.00 | 23.96 | -56.00 | -13.86 | 93.62 | -28.14 | 127.04 | 0.5757 | -1117.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -18.33 | 92.87 | -28.88 | 132.27 | 0.6219 | -523.0 | -399.4 | |
| 1.43 | -56.00 | 0.87 | -56.00 | -15.07 | 93.34 | -28.41 | 128.46 | 0.5890 | 200.5 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -16.83 | 93.03 | -28.73 | 130.50 | 0.6073 | 572.0 | 421.7 | |
| 0.00 | 1.87 | 0.00 | 1.18 | -17.80 | 92.82 | -28.93 | 131.55 | 0.6178 | -843.0 | -668.3 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -18.21 | 92.75 | -29.01 | 131.99 | 0.6220 | -581.0 | -526.2 | |
| 3.57 | 49.68 | 2.14 | 29.74 | -12.25 | 93.58 | -28.18 | 124.66 | 0.5632 | -1150.9 | -575.7 | |
| 0.00 | 2.85 | 0.00 | 1.72 | -13.01 | 93.27 | -28.48 | 125.48 | 0.5728 | -821.0 | -755.0 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -23.10 | 91.35 | -30.41 | 136.41 | 0.6776 | -633.0 | -508.6 | |
| 6.42 | -79.00 | 3.85 | -79.00 | -12.08 | 93.24 | -28.51 | 124.09 | 0.5658 | -967.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -12.82 | 93.15 | -28.60 | 125.10 | 0.5727 | -751.0 | -680.6 | |
| 14.72 | 44.42 | 9.31 | 28.19 | -17.91 | 92.26 | -29.50 | 131.14 | 0.6244 | -875.8 | -208.1 | |
| 36.13 | -56.00 | 22.06 | -56.00 | -14.13 | 92.84 | -28.92 | 126.67 | 0.5868 | -896.7 | 999999 | |
| 2.94 | -84.00 | 1.87 | -84.00 | -18.12 | 92.00 | -29.76 | 131.17 | 0.6289 | -675.0 | 999999 | |
| 0.00 | 6.69 | 0.00 | 4.05 | -12.82 | 92.73 | -29.03 | 124.69 | 0.5776 | -730.0 | -645.8 | |
| 0.00 | 2.41 | 0.00 | 1.46 | -13.12 | 92.62 | -29.14 | 125.02 | 0.5812 | -34.0 | -86.9 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -15.70 | 92.24 | -29.51 | 128.26 | 0.6062 | -750.0 | -578.2 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -17.37 | 91.84 | -29.91 | 130.07 | 0.6242 | -677.0 | -637.4 | |
| 0.00 | 2.85 | 0.00 | 1.75 | -12.92 | 91.61 | -30.15 | 123.83 | 0.5915 | -645.0 | -426.4 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -12.80 | 91.48 | -30.27 | 123.55 | 0.5920 | -652.0 | -621.0 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -12.62 | 91.40 | -30.36 | 123.20 | 0.5916 | -594.0 | -428.2 | |
| 0.45 | 2.32 | 0.28 | 1.45 | -14.80 | 91.01 | -30.75 | 125.92 | 0.6126 | -674.4 | -568.0 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -11.50 | 91.33 | -30.43 | 121.51 | 0.5844 | -753.0 | -660.5 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -11.74 | 91.19 | -30.57 | 121.74 | 0.5877 | -737.0 | -591.5 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -12.25 | 91.09 | -30.67 | 122.41 | 0.5926 | -611.0 | -566.6 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -11.96 | 91.13 | -30.63 | 122.02 | 0.5901 | -605.0 | -544.9 | |
| 0.00 | 1.43 | 0.00 | 0.89 | -14.57 | 90.64 | -31.11 | 125.29 | 0.6149 | -541.0 | -486.6 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -12.16 | 90.99 | -30.76 | 122.20 | 0.5931 | -504.0 | -396.4 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -13.30 | 90.84 | -30.92 | 123.69 | 0.6032 | -676.0 | -554.8 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -12.36 | 90.93 | -30.83 | 122.43 | 0.5952 | -376.0 | -422.7 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -16.47 | 89.09 | -32.67 | 126.50 | 0.6461 | -495.0 | -377.5 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -13.12 | 89.62 | -32.13 | 122.43 | 0.6160 | -557.0 | -486.0 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -13.88 | 89.40 | -32.36 | 123.29 | 0.6239 | -400.0 | -292.2 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -8.25 | 90.03 | -31.73 | 115.51 | 0.5789 | -578.0 | -463.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
