group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12158	220.14	1225.73	133.27	742.37	15.16	86.88	-34.88	73.82	0.5770	88.2	-31.6

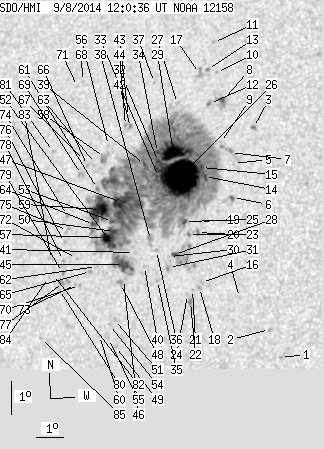

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-09-08 12:00:36 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.89	0.00	0.51	10.48	92.19	-29.56	81.47	0.4926	-766.0	-706.6
2	0.00	1.78	0.00	1.02	11.30	91.71	-30.04	79.89	0.5007	-802.0	-617.8
3	0.62	2.05	0.37	1.20	17.39	90.21	-31.55	68.76	0.5378	-730.4	-565.1
4	0.00	0.89	0.00	0.52	12.20	90.52	-31.23	78.36	0.5195	-751.0	-568.4
5	0.00	0.89	0.00	0.52	16.25	89.68	-32.08	71.05	0.5412	441.0	408.1
6	0.98	3.03	0.57	1.78	15.21	89.82	-31.94	72.89	0.5362	775.5	533.2
7	0.00	9.54	0.00	5.63	16.58	89.50	-32.25	70.52	0.5446	844.0	519.8
8	1.61	9.99	0.96	5.96	18.14	88.89	-32.86	68.00	0.5583	839.2	498.6
9	0.00	1.34	0.00	0.79	16.86	89.08	-32.68	70.19	0.5514	810.0	644.4
10	0.00	0.98	0.00	0.59	18.98	88.48	-33.28	66.73	0.5669	658.0	600.2
11	0.00	1.34	0.00	0.81	19.90	88.15	-33.60	65.34	0.5748	719.0	604.8
12	0.00	2.85	0.00	1.71	18.02	88.42	-33.33	68.41	0.5641	828.0	639.4
13	0.36	1.69	0.22	1.02	19.05	88.12	-33.64	66.77	0.5719	787.8	725.6
14	3.21	1058.96	1.91	641.40	15.78	88.68	-33.08	72.24	0.5536	1188.2	-7.9
15	3.21	-14.00	1.91	-14.00	16.05	88.52	-33.24	71.82	0.5566	1292.3	999999
16	0.00	1.34	0.00	0.79	12.57	89.09	-32.67	77.96	0.5408	-760.0	-657.3
17	0.00	5.44	0.00	3.29	18.91	87.84	-33.91	67.13	0.5750	794.0	636.0
18	0.00	1.43	0.00	0.84	12.41	89.04	-32.72	78.26	0.5413	-891.0	-799.8
19	0.00	0.89	0.00	0.53	14.41	88.73	-33.02	74.69	0.5494	598.0	500.5
20	0.00	3.03	0.00	1.79	14.07	88.71	-33.04	75.30	0.5489	685.0	531.1
21	0.00	0.71	0.00	0.42	12.34	88.79	-32.97	78.45	0.5447	-779.0	-651.0
22	0.62	2.05	0.37	1.21	11.97	88.77	-32.99	79.12	0.5445	-887.4	-759.1
23	0.45	1.96	0.26	1.17	13.99	88.39	-33.37	75.54	0.5533	494.2	341.4
24	0.00	1.16	0.00	0.69	12.17	88.63	-33.13	78.77	0.5468	-786.0	-696.2
25	1.96	-14.00	1.17	-14.00	14.37	88.18	-33.58	74.90	0.5571	481.1	999999
26	97.76	-14.00	58.64	-14.00	15.72	87.78	-33.97	72.63	0.5657	965.1	999999
27	0.00	1.87	0.00	1.14	17.94	87.21	-34.54	69.03	0.5799	513.0	402.4
28	1.52	27.92	0.90	16.57	13.35	87.97	-33.79	76.78	0.5580	-670.5	-167.2
29	26.85	-14.00	16.20	-14.00	16.43	87.38	-34.38	71.53	0.5732	916.5	999999
30	0.00	1.25	0.00	0.75	13.27	87.79	-33.96	76.94	0.5603	-142.0	-354.3
31	0.00	2.85	0.00	1.70	12.94	87.81	-33.95	77.54	0.5595	-482.0	-473.9
32	1.78	-14.00	1.08	-14.00	16.12	86.87	-34.89	72.22	0.5792	499.5	999999
33	1.96	-14.00	1.19	-14.00	15.67	86.96	-34.80	72.97	0.5769	597.2	999999
34	0.27	-14.00	0.16	-14.00	16.39	86.77	-34.98	71.79	0.5812	504.0	999999
35	0.00	1.25	0.00	0.75	12.52	87.46	-34.30	78.35	0.5638	-747.0	-628.9
36	0.00	1.34	0.00	0.80	13.42	87.28	-34.47	76.79	0.5677	-756.0	-620.7
37	0.00	0.89	0.00	0.55	18.52	86.19	-35.57	68.45	0.5953	454.0	391.7
38	0.00	6.15	0.00	3.71	13.74	87.00	-34.75	76.29	0.5722	-420.0	-518.2
39	1.96	-14.00	1.20	-14.00	15.99	86.35	-35.40	72.59	0.5858	337.8	999999
40	0.00	0.98	0.00	0.59	12.91	86.91	-34.85	77.76	0.5721	280.0	158.4
41	0.00	1.16	0.00	0.70	13.31	86.47	-35.29	77.15	0.5788	-847.0	-578.5
42	0.00	1.61	0.00	0.99	17.08	85.58	-36.18	71.01	0.5990	412.0	356.3
43	0.00	1.34	0.00	0.83	17.41	85.42	-36.33	70.52	0.6019	490.0	397.7
44	0.00	1.43	0.00	0.88	17.13	85.37	-36.39	71.00	0.6018	439.0	366.8
45	14.00	-14.00	8.53	-14.00	12.91	86.11	-35.65	77.89	0.5831	-962.1	999999
46	0.00	2.14	0.00	1.30	12.46	86.18	-35.57	78.65	0.5815	-621.0	-539.8
47	16.06	-14.00	9.85	-14.00	14.78	85.70	-36.05	74.80	0.5919	-981.1	999999
48	0.00	3.30	0.00	2.01	12.33	86.09	-35.67	78.89	0.5827	-709.0	-669.5
49	0.00	2.23	0.00	1.35	10.42	86.17	-35.58	82.17	0.5799	-804.0	-597.5
50	1.61	-14.00	0.98	-14.00	13.89	85.60	-36.16	76.33	0.5917	-1171.3	999999
51	0.00	1.96	0.00	1.19	11.23	86.02	-35.73	80.79	0.5825	-682.0	-623.7
52	1.52	-14.00	0.93	-14.00	13.46	85.63	-36.12	77.04	0.5905	-1051.2	999999
53	2.05	-14.00	1.26	-14.00	14.18	85.47	-36.29	75.86	0.5940	-1025.9	999999
54	0.00	1.43	0.00	0.87	11.07	85.86	-35.90	81.08	0.5847	-636.0	-546.9
55	0.00	0.98	0.00	0.60	10.64	85.88	-35.88	81.81	0.5841	-612.0	-568.8
56	0.00	0.62	0.00	0.39	16.47	84.85	-36.91	72.22	0.6070	-724.0	-561.1
57	7.14	-14.00	4.39	-14.00	13.68	85.29	-36.47	76.73	0.5956	-920.6	999999
58	0.00	8.74	0.00	5.44	16.10	84.77	-36.99	72.85	0.6071	-357.0	-378.1
59	30.24	-14.00	18.72	-14.00	14.51	84.94	-36.82	75.42	0.6017	-914.8	999999
60	0.00	1.07	0.00	0.65	10.71	85.53	-36.23	81.72	0.5890	-524.0	-456.7
61	0.62	2.59	0.39	1.61	15.14	84.70	-37.06	74.44	0.6061	-762.4	-608.9
62	0.00	1.87	0.00	1.15	12.78	85.09	-36.66	78.27	0.5969	-585.0	-448.2
63	0.00	0.45	0.00	0.28	15.89	84.46	-37.30	73.27	0.6108	-269.0	-392.6
64	1.78	-14.00	1.11	-14.00	14.04	84.75	-37.00	76.24	0.6033	-752.8	999999
65	0.00	2.23	0.00	1.38	12.61	84.89	-36.87	78.58	0.5995	-654.0	-502.9
66	0.00	0.98	0.00	0.61	15.81	84.16	-37.59	73.48	0.6145	-830.0	-725.7
67	0.00	0.98	0.00	0.62	15.95	84.01	-37.75	73.28	0.6168	-656.0	-562.0
68	0.00	0.89	0.00	0.57	18.34	83.35	-38.40	69.67	0.6311	621.0	474.1
69	0.00	3.57	0.00	2.24	15.52	83.98	-37.77	73.98	0.6163	-646.0	-586.4
70	0.00	1.25	0.00	0.77	12.16	84.54	-37.22	79.38	0.6038	-731.0	-574.9
71	0.00	1.07	0.00	0.68	18.18	83.19	-38.56	69.98	0.6326	516.0	340.3
72	0.00	0.71	0.00	0.44	12.96	84.28	-37.47	78.08	0.6081	-806.0	-639.8
73	0.00	0.80	0.00	0.50	12.18	84.38	-37.38	79.37	0.6060	-549.0	-489.8
74	0.00	1.69	0.00	1.07	14.24	83.69	-38.06	76.11	0.6178	-605.0	-484.3
75	0.00	2.59	0.00	1.62	13.78	83.78	-37.98	76.83	0.6160	-413.0	-449.9
76	0.00	1.96	0.00	1.23	13.41	83.73	-38.02	77.43	0.6161	-616.0	-488.7
77	0.00	5.35	0.00	3.35	12.20	83.91	-37.85	79.38	0.6124	-694.0	-624.6
78	0.00	1.34	0.00	0.84	12.87	83.79	-37.96	78.31	0.6147	-585.0	-482.1
79	0.00	1.61	0.00	1.01	12.50	83.82	-37.94	78.90	0.6139	-742.0	-636.1
80	0.00	1.25	0.00	0.78	11.98	83.78	-37.97	79.76	0.6138	-490.0	-360.3
81	0.00	1.52	0.00	0.97	16.13	82.72	-39.03	73.29	0.6339	-656.0	-527.4
82	0.00	0.45	0.00	0.28	12.42	83.48	-38.28	79.08	0.6184	-508.0	-426.6
83	0.00	1.96	0.00	1.24	12.86	83.32	-38.44	78.38	0.6210	-489.0	-397.2
84	0.00	0.54	0.00	0.34	12.31	83.30	-38.46	79.27	0.6207	-471.0	-370.5
85	0.00	1.34	0.00	0.84	10.45	83.28	-38.48	82.28	0.6198	-578.0	-479.9

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
