SDO HMI 2014-09-08 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.38 | 36.31 | 4.62 | 20.00 | 9.38 | 147.78 | 26.03 | 276.58 | 0.4376 | -68.1 | -239.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

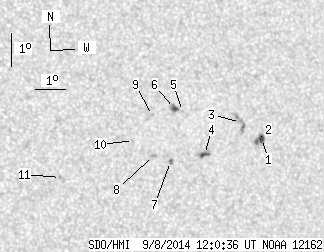

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.03 | 7.05 | 1.69 | 3.94 | 9.19 | 149.54 | 27.78 | 276.00 | 0.4646 | -879.1 | -803.9 | |
| 0.71 | -1.00 | 0.40 | -1.00 | 9.11 | 149.36 | 27.60 | 275.84 | 0.4618 | -1022.2 | 999999 | |
| 0.00 | 10.17 | 0.00 | 5.65 | 9.71 | 148.86 | 27.10 | 277.21 | 0.4545 | -307.0 | -579.7 | |
| 2.23 | 6.78 | 1.22 | 3.72 | 8.82 | 147.55 | 25.80 | 275.31 | 0.4337 | -839.6 | -571.0 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 10.16 | 146.91 | 25.16 | 278.52 | 0.4249 | 676.0 | 499.9 | |
| 1.87 | 4.64 | 1.02 | 2.53 | 10.26 | 146.65 | 24.90 | 278.82 | 0.4209 | 1046.8 | 869.7 | |
| 0.54 | 1.87 | 0.29 | 1.02 | 8.67 | 146.39 | 24.64 | 275.03 | 0.4154 | -830.7 | -709.0 | |
| 0.00 | 2.32 | 0.00 | 1.26 | 8.88 | 145.83 | 24.08 | 275.59 | 0.4068 | 690.0 | 558.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 10.09 | 145.89 | 24.14 | 278.55 | 0.4089 | 580.0 | 482.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 9.37 | 145.20 | 23.45 | 276.88 | 0.3971 | 602.0 | 403.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 8.37 | 142.72 | 20.97 | 274.51 | 0.3567 | 845.0 | 698.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
