SDO HMI 2014-09-08 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.89 | 205.29 | 24.54 | 117.91 | -19.76 | 107.00 | -14.21 | 152.89 | 0.5086 | 626.0 | 426.6 | |
|
previous
or next observation for the same group /

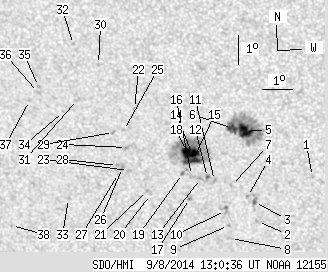

back to the solar disc SDO HMI 2014-09-08 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 0.97 | -20.50 | 110.65 | -10.55 | 159.68 | 0.4961 | 119.0 | 160.2 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -22.09 | 108.70 | -12.50 | 157.62 | 0.5289 | 448.0 | 421.1 | |
| 0.62 | 5.08 | 0.36 | 2.94 | -21.44 | 108.66 | -12.55 | 157.03 | 0.5202 | 714.6 | 633.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -21.24 | 108.45 | -12.76 | 156.52 | 0.5187 | 615.0 | 541.8 | |
| 12.75 | 67.60 | 7.23 | 38.28 | -19.03 | 108.53 | -12.67 | 154.74 | 0.4880 | 1097.5 | 528.8 | |
| 4.99 | -5.00 | 2.83 | -5.00 | -18.94 | 108.15 | -13.06 | 153.99 | 0.4893 | 905.1 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -20.88 | 107.95 | -13.26 | 155.40 | 0.5169 | 692.0 | 520.1 | |
| 0.00 | 2.14 | 0.00 | 1.26 | -22.71 | 107.74 | -13.47 | 156.58 | 0.5427 | 717.0 | 579.4 | |
| 0.00 | 1.52 | 0.00 | 0.89 | -22.26 | 107.71 | -13.49 | 156.19 | 0.5368 | 163.0 | 248.4 | |
| 0.00 | 5.44 | 0.00 | 3.17 | -21.74 | 107.66 | -13.54 | 155.68 | 0.5302 | 700.0 | 377.0 | |
| 0.00 | 2.05 | 0.00 | 1.19 | -20.72 | 107.40 | -13.81 | 154.37 | 0.5183 | 754.0 | 659.5 | |
| 0.45 | 2.14 | 0.26 | 1.24 | -20.63 | 107.17 | -14.03 | 153.93 | 0.5184 | 900.2 | 700.0 | |
| 0.00 | 1.87 | 0.00 | 1.09 | -20.67 | 106.94 | -14.27 | 153.59 | 0.5206 | 701.0 | 576.7 | |
| 9.63 | 77.59 | 5.54 | 44.63 | -19.86 | 106.75 | -14.46 | 152.53 | 0.5111 | 1160.2 | 449.5 | |
| 6.96 | -14.00 | 4.01 | -14.00 | -20.06 | 106.73 | -14.48 | 152.69 | 0.5140 | 867.1 | 999999 | |
| 0.00 | 3.48 | 0.00 | 2.02 | -20.57 | 106.64 | -14.56 | 153.04 | 0.5213 | 236.0 | 377.9 | |
| 0.00 | 1.96 | 0.00 | 1.15 | -21.37 | 106.50 | -14.71 | 153.53 | 0.5326 | 474.0 | 469.1 | |
| 7.49 | -14.00 | 4.31 | -14.00 | -19.76 | 106.56 | -14.65 | 152.13 | 0.5112 | 1143.7 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.98 | -20.52 | 106.35 | -14.86 | 152.52 | 0.5225 | 657.0 | 521.3 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -21.28 | 105.19 | -16.01 | 151.47 | 0.5403 | 662.0 | 564.8 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -21.14 | 105.11 | -16.10 | 151.22 | 0.5392 | 430.0 | 547.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -18.37 | 104.97 | -16.24 | 148.16 | 0.5051 | 456.0 | 526.7 | |
| 0.00 | 1.96 | 0.00 | 1.15 | -20.48 | 104.54 | -16.66 | 149.73 | 0.5349 | 637.0 | 617.3 | |
| 0.00 | 2.41 | 0.00 | 1.40 | -19.70 | 104.56 | -16.64 | 148.96 | 0.5249 | 514.0 | 617.9 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -19.12 | 104.52 | -16.68 | 148.29 | 0.5181 | 574.0 | 393.2 | |
| 0.00 | 2.23 | 0.00 | 1.31 | -20.38 | 104.35 | -16.85 | 149.35 | 0.5351 | 946.0 | 740.0 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -20.59 | 104.19 | -17.01 | 149.32 | 0.5389 | 537.0 | 592.9 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -20.32 | 104.19 | -17.01 | 149.05 | 0.5356 | 704.0 | 575.9 | |
| 0.00 | 1.69 | 0.00 | 0.98 | -19.20 | 104.18 | -17.02 | 147.86 | 0.5218 | 906.0 | 675.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.94 | 103.91 | -17.29 | 144.88 | 0.4962 | -374.0 | -410.5 | |
| 0.00 | 2.32 | 0.00 | 1.34 | -18.14 | 103.09 | -18.11 | 145.05 | 0.5177 | -397.0 | -501.9 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -16.31 | 103.15 | -18.06 | 142.92 | 0.4954 | -676.0 | -541.4 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -21.52 | 102.37 | -18.83 | 147.69 | 0.5640 | -661.0 | -556.4 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -18.56 | 102.58 | -18.63 | 144.78 | 0.5272 | -127.0 | -202.2 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -17.76 | 101.83 | -19.38 | 142.77 | 0.5243 | -487.0 | -482.6 | |
| 0.00 | 1.78 | 0.00 | 1.04 | -17.96 | 101.80 | -19.40 | 142.97 | 0.5268 | -396.0 | -526.2 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -18.24 | 101.47 | -19.74 | 142.84 | 0.5331 | -575.0 | -467.3 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -22.55 | 100.24 | -20.96 | 145.96 | 0.5925 | -367.0 | -370.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
