SDO HMI 2014-09-08 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.87 | 54.59 | 5.19 | 41.30 | -20.62 | 80.07 | -41.13 | 125.46 | 0.7577 | 232.1 | 123.4 | |
|
previous
or next observation for the same group /

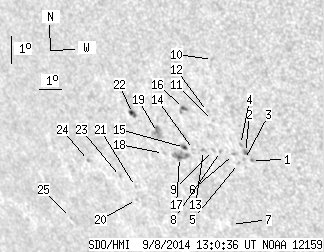

back to the solar disc SDO HMI 2014-09-08 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.97 | -20.93 | 83.02 | -38.19 | 127.74 | 0.7325 | 705.0 | 632.7 | |
| 0.71 | 2.59 | 0.52 | 1.87 | -20.68 | 82.85 | -38.36 | 127.32 | 0.7324 | 773.5 | 559.0 | |
| 0.00 | 1.43 | 0.00 | 1.04 | -20.92 | 82.73 | -38.48 | 127.53 | 0.7351 | 362.0 | 396.6 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -20.42 | 82.72 | -38.49 | 126.93 | 0.7320 | 368.0 | 405.5 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -21.08 | 82.43 | -38.78 | 127.51 | 0.7389 | 593.0 | 412.9 | |
| 0.00 | 0.71 | 0.00 | 0.52 | -20.79 | 82.31 | -38.89 | 127.09 | 0.7381 | 450.0 | 400.2 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -23.26 | 81.40 | -39.81 | 129.26 | 0.7619 | 554.0 | 519.4 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -20.73 | 81.79 | -39.42 | 126.67 | 0.7427 | 160.0 | 193.5 | |
| 0.00 | 1.43 | 0.00 | 1.06 | -20.72 | 81.50 | -39.71 | 126.47 | 0.7453 | 335.0 | 306.9 | |
| 0.00 | 1.61 | 0.00 | 1.14 | -17.61 | 82.35 | -38.85 | 123.35 | 0.7181 | 676.0 | 540.1 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -19.69 | 81.77 | -39.43 | 125.45 | 0.7364 | -305.0 | -349.9 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -19.39 | 81.65 | -39.55 | 125.03 | 0.7358 | -318.0 | -268.2 | |
| 0.00 | 1.61 | 0.00 | 1.20 | -20.76 | 81.06 | -40.14 | 126.23 | 0.7496 | 622.0 | 472.2 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -20.76 | 80.64 | -40.57 | 125.96 | 0.7536 | 268.0 | 334.9 | |
| 1.25 | 2.94 | 0.94 | 2.22 | -20.72 | 80.26 | -40.94 | 125.68 | 0.7568 | 474.1 | 437.4 | |
| 1.34 | 3.83 | 0.99 | 2.84 | -19.38 | 80.65 | -40.56 | 124.37 | 0.7454 | -684.9 | -544.9 | |
| 1.25 | 11.24 | 0.95 | 8.55 | -21.09 | 79.92 | -41.28 | 125.89 | 0.7620 | 554.3 | 459.1 | |
| 0.00 | 1.25 | 0.00 | 0.96 | -21.02 | 79.26 | -41.95 | 125.39 | 0.7677 | 429.0 | 340.1 | |
| 0.00 | 9.45 | 0.00 | 7.23 | -20.31 | 79.24 | -41.97 | 124.57 | 0.7639 | -743.0 | -543.3 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -22.76 | 77.40 | -43.81 | 126.22 | 0.7935 | 534.0 | 443.1 | |
| 0.00 | 1.07 | 0.00 | 0.86 | -22.30 | 77.53 | -43.67 | 125.80 | 0.7899 | 458.0 | 453.9 | |
| 2.32 | 4.19 | 1.79 | 3.24 | -19.75 | 78.33 | -42.87 | 123.39 | 0.7692 | -591.2 | -507.9 | |
| 0.00 | 0.98 | 0.00 | 0.79 | -22.01 | 76.97 | -44.24 | 125.15 | 0.7933 | 506.0 | 458.6 | |
| 0.00 | 1.25 | 0.00 | 1.03 | -21.58 | 75.66 | -45.54 | 123.96 | 0.8024 | 282.0 | 291.0 | |
| 0.00 | 0.54 | 0.00 | 0.47 | -23.71 | 73.86 | -47.35 | 125.32 | 0.8274 | 273.0 | 303.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
