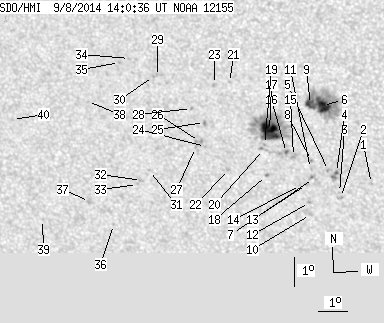

SDO HMI 2014-09-08 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.67 | 202.16 | 25.48 | 115.95 | -19.88 | 106.96 | -13.69 | 153.90 | 0.5067 | 576.3 | 435.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.57 | -21.60 | 109.92 | -10.73 | 160.17 | 0.5125 | 447.0 | 354.3 | |
| 0.00 | 2.41 | 0.00 | 1.40 | -22.11 | 108.85 | -11.80 | 158.76 | 0.5252 | 648.0 | 493.3 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -21.94 | 108.83 | -11.82 | 158.60 | 0.5229 | 536.0 | 410.6 | |
| 0.62 | 4.90 | 0.36 | 2.83 | -21.25 | 108.79 | -11.86 | 158.01 | 0.5137 | 821.0 | 673.8 | |
| 0.00 | 2.05 | 0.00 | 1.18 | -21.19 | 108.53 | -12.12 | 157.53 | 0.5143 | 799.0 | 689.1 | |
| 14.62 | 67.95 | 8.27 | 38.39 | -18.98 | 108.51 | -12.14 | 155.63 | 0.4840 | 1099.5 | 509.1 | |
| 0.00 | 3.30 | 0.00 | 1.91 | -21.48 | 108.01 | -12.65 | 156.90 | 0.5213 | 224.0 | 320.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -20.86 | 108.00 | -12.66 | 156.37 | 0.5129 | 707.0 | 622.7 | |
| 5.97 | -6.00 | 3.38 | -6.00 | -18.95 | 108.12 | -12.53 | 154.92 | 0.4861 | 899.8 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.15 | -22.73 | 107.79 | -12.86 | 157.53 | 0.5395 | 667.0 | 533.7 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -21.13 | 107.94 | -12.72 | 156.51 | 0.5170 | 660.0 | 558.0 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -22.31 | 107.80 | -12.86 | 157.22 | 0.5338 | 367.0 | 333.6 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -21.69 | 107.76 | -12.90 | 156.66 | 0.5257 | 752.0 | 559.4 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -21.73 | 107.55 | -13.10 | 156.37 | 0.5274 | 570.0 | 439.8 | |
| 0.00 | 2.68 | 0.00 | 1.54 | -20.74 | 107.41 | -13.24 | 155.31 | 0.5149 | 714.0 | 643.7 | |
| 0.54 | 4.73 | 0.31 | 2.73 | -20.61 | 107.19 | -13.46 | 154.83 | 0.5145 | 933.0 | 650.9 | |
| 22.92 | 76.15 | 13.16 | 43.69 | -19.87 | 106.69 | -13.96 | 153.36 | 0.5080 | 1055.3 | 484.2 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -21.42 | 106.45 | -14.21 | 154.36 | 0.5301 | 677.0 | 590.7 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -20.36 | 106.48 | -14.17 | 153.46 | 0.5158 | 589.0 | 540.2 | |
| 0.00 | 2.50 | 0.00 | 1.44 | -20.53 | 106.43 | -14.22 | 153.54 | 0.5184 | 422.0 | 523.5 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -18.30 | 105.52 | -15.14 | 149.85 | 0.4957 | 720.0 | 510.0 | |
| 0.00 | 1.52 | 0.00 | 0.89 | -21.26 | 105.19 | -15.47 | 152.27 | 0.5362 | 702.0 | 639.3 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -18.38 | 105.01 | -15.64 | 149.13 | 0.5006 | 769.0 | 681.1 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -20.49 | 104.50 | -16.16 | 150.50 | 0.5314 | 814.0 | 725.6 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -19.68 | 104.55 | -16.10 | 149.76 | 0.5206 | 887.0 | 745.3 | |
| 0.00 | 2.85 | 0.00 | 1.67 | -20.33 | 104.31 | -16.34 | 150.06 | 0.5306 | 769.0 | 720.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -20.54 | 104.16 | -16.50 | 150.03 | 0.5344 | 674.0 | 581.3 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -19.22 | 104.17 | -16.49 | 148.69 | 0.5178 | 885.0 | 728.9 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -18.18 | 103.14 | -17.51 | 145.99 | 0.5132 | -613.0 | -617.2 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -18.19 | 103.01 | -17.65 | 145.79 | 0.5144 | -603.0 | -548.3 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -21.39 | 102.49 | -18.16 | 148.49 | 0.5573 | -721.0 | -524.3 | |
| 0.00 | 2.14 | 0.00 | 1.28 | -21.75 | 102.17 | -18.48 | 148.40 | 0.5641 | -536.0 | -492.4 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -21.89 | 102.02 | -18.64 | 148.33 | 0.5670 | -566.0 | -468.8 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -17.62 | 102.27 | -18.39 | 144.03 | 0.5138 | -572.0 | -557.7 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -17.76 | 101.92 | -18.74 | 143.69 | 0.5187 | -811.0 | -697.5 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -23.33 | 100.97 | -19.68 | 148.36 | 0.5917 | -658.0 | -420.6 | |
| 0.00 | 2.94 | 0.00 | 1.80 | -22.56 | 100.25 | -20.40 | 146.68 | 0.5882 | -559.0 | -351.8 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -19.12 | 100.67 | -19.98 | 143.54 | 0.5453 | -498.0 | -426.0 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -23.27 | 98.48 | -22.17 | 145.22 | 0.6100 | -679.0 | -541.9 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -19.86 | 97.99 | -22.67 | 140.92 | 0.5772 | -535.0 | -491.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
