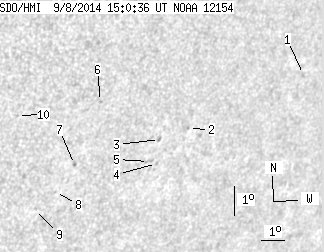

SDO HMI 2014-09-08 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.47 | 0.00 | 9.09 | -17.67 | 160.39 | 40.29 | 237.36 | 0.7329 | 103.8 | 237.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 1.42 | -16.07 | 166.42 | 46.32 | 242.72 | 0.7841 | 144.0 | 88.5 | |
| 0.00 | 1.16 | 0.00 | 0.86 | -17.41 | 161.75 | 41.64 | 238.63 | 0.7450 | 601.0 | 507.1 | |
| 0.00 | 1.78 | 0.00 | 1.30 | -17.67 | 160.60 | 40.49 | 237.62 | 0.7350 | 624.0 | 482.8 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -18.47 | 160.70 | 40.59 | 236.72 | 0.7405 | 530.0 | 458.5 | |
| 0.00 | 2.85 | 0.00 | 2.08 | -18.37 | 160.33 | 40.23 | 236.61 | 0.7364 | 636.0 | 579.2 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -16.19 | 157.82 | 37.72 | 237.64 | 0.6978 | 580.0 | 543.5 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -18.21 | 157.26 | 37.16 | 234.75 | 0.7049 | -673.0 | -532.2 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -19.10 | 156.73 | 36.63 | 233.30 | 0.7055 | -583.0 | -552.3 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -19.62 | 156.07 | 35.96 | 232.19 | 0.7025 | -503.0 | -408.9 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -16.39 | 154.62 | 34.52 | 235.08 | 0.6653 | -318.0 | -375.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
