SDO HMI 2014-09-08 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.81 | 213.43 | 26.12 | 121.97 | -19.75 | 107.01 | -13.09 | 154.74 | 0.5012 | 613.8 | 441.3 | |
|
previous
or next observation for the same group /

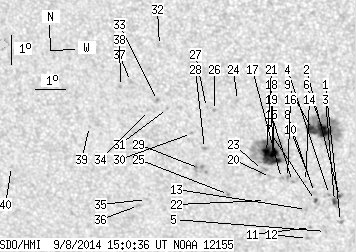

back to the solar disc SDO HMI 2014-09-08 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.14 | 0.00 | 1.24 | -22.09 | 108.84 | -11.27 | 159.63 | 0.5222 | 520.0 | 516.3 | |
| 0.80 | 7.67 | 0.46 | 4.42 | -21.23 | 108.87 | -11.23 | 159.06 | 0.5100 | 904.9 | 684.1 | |
| 1.69 | -2.00 | 0.98 | -2.00 | -21.40 | 108.69 | -11.41 | 158.89 | 0.5134 | 774.9 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -21.17 | 108.55 | -11.56 | 158.46 | 0.5109 | 801.0 | 720.3 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -22.45 | 108.31 | -11.80 | 159.02 | 0.5299 | -592.0 | -450.5 | |
| 13.46 | 72.66 | 7.60 | 40.97 | -18.99 | 108.52 | -11.59 | 156.63 | 0.4808 | 1116.3 | 495.7 | |
| 0.62 | 2.50 | 0.36 | 1.44 | -21.38 | 108.07 | -12.04 | 157.83 | 0.5166 | 694.4 | 307.2 | |
| 0.00 | 2.76 | 0.00 | 1.59 | -21.11 | 108.06 | -12.05 | 157.59 | 0.5129 | 675.0 | 513.0 | |
| 6.24 | -6.00 | 3.53 | -6.00 | -18.97 | 108.16 | -11.94 | 155.97 | 0.4826 | 925.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.87 | 108.01 | -12.09 | 157.32 | 0.5098 | 787.0 | 648.0 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -22.32 | 107.82 | -12.29 | 158.14 | 0.5308 | 629.0 | 488.5 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -22.71 | 107.68 | -12.42 | 158.21 | 0.5368 | 697.0 | 602.3 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -21.70 | 107.74 | -12.36 | 157.54 | 0.5228 | 696.0 | 508.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -20.74 | 107.79 | -12.31 | 156.85 | 0.5093 | 627.0 | 517.8 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -20.75 | 107.36 | -12.75 | 156.14 | 0.5121 | 695.0 | 616.7 | |
| 0.00 | 1.69 | 0.00 | 0.97 | -20.62 | 107.20 | -12.90 | 155.77 | 0.5112 | 982.0 | 833.0 | |
| 0.00 | 1.96 | 0.00 | 1.13 | -20.66 | 107.00 | -13.10 | 155.47 | 0.5130 | 727.0 | 620.4 | |
| 5.97 | 75.87 | 3.43 | 43.43 | -20.05 | 106.82 | -13.28 | 154.65 | 0.5059 | 816.2 | 491.8 | |
| 8.20 | -18.00 | 4.70 | -18.00 | -19.85 | 106.78 | -13.33 | 154.38 | 0.5035 | 1176.2 | 999999 | |
| 0.00 | 3.39 | 0.00 | 1.95 | -20.64 | 106.64 | -13.46 | 154.86 | 0.5150 | 507.0 | 416.1 | |
| 8.83 | -18.00 | 5.06 | -18.00 | -19.79 | 106.58 | -13.52 | 154.00 | 0.5039 | 1073.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -21.43 | 106.40 | -13.71 | 155.16 | 0.5271 | 773.0 | 599.3 | |
| 0.00 | 4.19 | 0.00 | 2.42 | -20.41 | 106.39 | -13.71 | 154.26 | 0.5134 | 543.0 | 526.9 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -18.06 | 105.78 | -14.33 | 150.96 | 0.4866 | 759.0 | 577.6 | |
| 0.00 | 1.69 | 0.00 | 0.99 | -21.27 | 105.18 | -14.93 | 153.10 | 0.5328 | 757.0 | 625.8 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -18.42 | 104.99 | -15.11 | 150.03 | 0.4972 | 850.0 | 625.5 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -18.33 | 104.73 | -15.37 | 149.52 | 0.4979 | 683.0 | 583.2 | |
| 0.00 | 1.78 | 0.00 | 1.03 | -19.72 | 104.53 | -15.57 | 150.63 | 0.5173 | 916.0 | 713.3 | |
| 0.00 | 8.56 | 0.00 | 4.98 | -20.41 | 104.29 | -15.81 | 150.94 | 0.5278 | 629.0 | 698.7 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -19.23 | 104.15 | -15.95 | 149.53 | 0.5138 | 903.0 | 631.9 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -18.41 | 103.43 | -16.67 | 147.54 | 0.5091 | -561.0 | -447.8 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -16.32 | 103.37 | -16.73 | 145.00 | 0.4837 | -649.0 | -491.1 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -18.16 | 103.13 | -16.97 | 146.78 | 0.5084 | -735.0 | -671.6 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -18.50 | 102.79 | -17.31 | 146.66 | 0.5155 | -581.0 | -517.6 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -21.54 | 102.37 | -17.73 | 149.23 | 0.5560 | -739.0 | -556.1 | |
| 0.00 | 2.05 | 0.00 | 1.22 | -21.76 | 102.07 | -18.04 | 149.03 | 0.5609 | -624.0 | -556.5 | |
| 0.00 | 2.23 | 0.00 | 1.28 | -17.56 | 102.29 | -17.81 | 144.81 | 0.5081 | -606.0 | -614.6 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -17.74 | 101.94 | -18.16 | 144.50 | 0.5133 | -670.0 | -642.5 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -19.13 | 100.74 | -19.37 | 144.38 | 0.5401 | -555.0 | -464.6 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -20.62 | 97.85 | -22.26 | 142.29 | 0.5817 | -478.0 | -388.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
