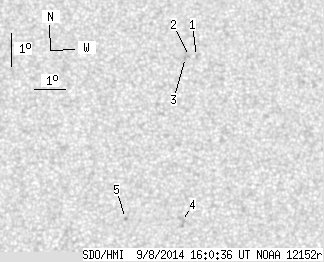

SDO HMI 2014-09-08 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.54 | 0.00 | 4.89 | 13.91 | 132.55 | 13.00 | 298.04 | 0.2516 | -387.4 | -431.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.51 | 17.39 | 133.42 | 13.87 | 308.15 | 0.2921 | -676.0 | -570.4 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 17.39 | 133.19 | 13.64 | 308.60 | 0.2892 | -891.0 | -742.5 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 17.37 | 133.06 | 13.51 | 308.79 | 0.2873 | -1085.0 | -814.2 | |
| 0.00 | 5.35 | 0.00 | 2.73 | 12.38 | 132.61 | 13.06 | 292.79 | 0.2405 | -230.0 | -567.1 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 12.52 | 130.85 | 11.29 | 296.27 | 0.2142 | 945.0 | 736.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
