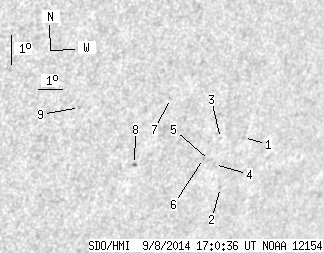

SDO HMI 2014-09-08 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 11.59 | 0.25 | 8.48 | -17.91 | 159.62 | 40.62 | 237.37 | 0.7372 | 261.9 | 296.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 1.08 | -17.73 | 161.72 | 42.72 | 238.86 | 0.7572 | 390.0 | 337.4 | |
| 0.00 | 0.98 | 0.00 | 0.75 | -19.35 | 161.22 | 42.22 | 236.68 | 0.7610 | 564.0 | 432.1 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -17.67 | 160.71 | 41.71 | 238.35 | 0.7471 | 465.0 | 405.3 | |
| 0.00 | 1.87 | 0.00 | 1.40 | -18.53 | 160.71 | 41.71 | 237.33 | 0.7517 | 585.0 | 481.4 | |
| 0.00 | 2.05 | 0.00 | 1.52 | -18.38 | 160.45 | 41.45 | 237.35 | 0.7484 | 711.0 | 568.3 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -18.29 | 160.17 | 41.17 | 237.29 | 0.7451 | 532.0 | 505.6 | |
| 0.00 | 1.60 | 0.00 | 1.13 | -16.14 | 158.23 | 39.23 | 238.68 | 0.7135 | 576.0 | 406.5 | |
| 0.36 | 1.43 | 0.25 | 1.01 | -18.24 | 157.29 | 38.29 | 235.50 | 0.7164 | -654.8 | -569.1 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -16.14 | 154.62 | 35.62 | 236.22 | 0.6754 | -582.0 | -492.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
