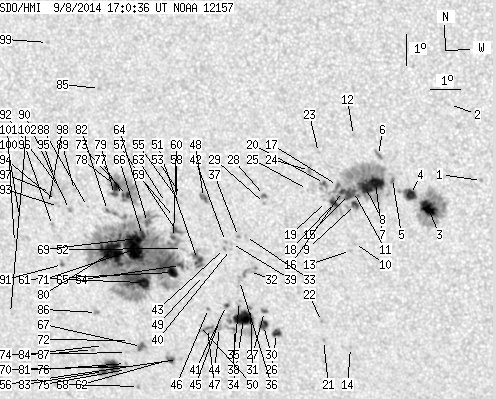

SDO HMI 2014-09-08 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 259.56 | 1112.12 | 150.27 | 644.38 | -13.71 | 96.02 | -22.98 | 132.92 | 0.5169 | -51.9 | -128.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.67 | -11.30 | 105.29 | -13.71 | 143.54 | 0.3927 | 930.0 | 762.8 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -8.92 | 104.39 | -14.61 | 137.76 | 0.3723 | 634.0 | 525.9 | |
| 15.51 | 90.83 | 8.46 | 49.56 | -12.25 | 103.55 | -15.45 | 141.67 | 0.4215 | 1321.9 | 517.4 | |
| 8.56 | -3.00 | 4.67 | -3.00 | -11.82 | 103.00 | -16.00 | 140.03 | 0.4218 | 1141.3 | 999999 | |
| 0.00 | 3.57 | 0.00 | 1.95 | -11.33 | 102.45 | -16.55 | 138.30 | 0.4216 | 991.0 | 836.0 | |
| 0.00 | 4.10 | 0.00 | 2.23 | -10.61 | 102.04 | -16.96 | 136.43 | 0.4176 | 982.0 | 767.0 | |
| 16.58 | 176.66 | 9.08 | 97.19 | -11.48 | 101.89 | -17.11 | 137.59 | 0.4292 | 1224.7 | 480.7 | |
| 12.39 | -7.00 | 6.81 | -7.00 | -11.65 | 101.56 | -17.44 | 137.31 | 0.4347 | 1017.6 | 999999 | |
| 3.39 | 9.80 | 1.87 | 5.42 | -12.21 | 101.20 | -17.80 | 137.59 | 0.4449 | 828.8 | 433.2 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -13.47 | 101.07 | -17.93 | 139.27 | 0.4607 | 782.0 | 674.5 | |
| 1.43 | -7.00 | 0.79 | -7.00 | -11.79 | 101.16 | -17.84 | 136.88 | 0.4405 | 1012.0 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -10.01 | 101.27 | -17.72 | 134.12 | 0.4194 | -688.0 | -570.5 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -13.70 | 100.92 | -18.08 | 139.37 | 0.4649 | 676.0 | 559.2 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -16.88 | 100.63 | -18.37 | 143.16 | 0.5050 | -787.0 | -632.6 | |
| 7.04 | -7.00 | 3.89 | -7.00 | -11.89 | 101.02 | -17.97 | 136.82 | 0.4432 | 931.7 | 999999 | |
| 2.41 | -7.00 | 1.33 | -7.00 | -11.81 | 100.80 | -18.20 | 136.34 | 0.4445 | 920.9 | 999999 | |
| 1.16 | -7.00 | 0.64 | -7.00 | -11.62 | 100.65 | -18.34 | 135.81 | 0.4441 | 795.3 | 999999 | |
| 4.37 | -7.00 | 2.42 | -7.00 | -12.17 | 100.52 | -18.48 | 136.46 | 0.4517 | 823.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -12.15 | 100.26 | -18.74 | 136.02 | 0.4542 | 275.0 | 316.7 | |
| 0.98 | -7.00 | 0.54 | -7.00 | -11.58 | 100.23 | -18.76 | 135.08 | 0.4482 | 795.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -16.68 | 99.75 | -19.25 | 141.63 | 0.5108 | -822.0 | -712.2 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -16.06 | 99.75 | -19.25 | 140.82 | 0.5036 | -791.0 | -653.6 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -10.60 | 100.11 | -18.89 | 133.28 | 0.4390 | -708.0 | -414.6 | |
| 0.00 | 3.30 | 0.00 | 1.83 | -11.18 | 99.77 | -19.23 | 133.74 | 0.4490 | 919.0 | 710.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -11.79 | 99.66 | -19.34 | 134.56 | 0.4568 | 524.0 | 470.0 | |
| 4.28 | 6.60 | 2.48 | 3.83 | -16.52 | 98.19 | -20.81 | 139.24 | 0.5237 | 849.1 | 590.0 | |
| 1.16 | 2.50 | 0.67 | 1.44 | -15.81 | 97.86 | -21.13 | 137.87 | 0.5192 | 941.9 | 747.4 | |
| 0.80 | 3.30 | 0.45 | 1.86 | -12.05 | 98.23 | -20.77 | 132.91 | 0.4754 | 763.1 | 580.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -12.30 | 98.21 | -20.79 | 133.28 | 0.4783 | 661.0 | 506.0 | |
| 5.44 | 7.40 | 3.16 | 4.30 | -16.28 | 97.78 | -21.22 | 138.37 | 0.5251 | 822.7 | 504.7 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -15.74 | 97.40 | -21.60 | 137.15 | 0.5230 | 1031.0 | 952.5 | |
| 0.00 | 8.20 | 0.00 | 4.71 | -14.53 | 97.50 | -21.50 | 135.61 | 0.5092 | 281.0 | 539.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -13.40 | 97.48 | -21.52 | 133.95 | 0.4976 | 733.0 | 558.9 | |
| 19.79 | 47.42 | 11.54 | 27.67 | -16.08 | 97.13 | -21.87 | 137.25 | 0.5294 | 990.0 | 232.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -15.53 | 97.05 | -21.94 | 136.41 | 0.5243 | 897.0 | 723.4 | |
| 0.00 | 3.65 | 0.00 | 2.11 | -14.84 | 97.13 | -21.87 | 135.56 | 0.5163 | 829.0 | 704.7 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -13.41 | 97.24 | -21.76 | 133.65 | 0.5003 | 887.0 | 729.6 | |
| 0.53 | 4.81 | 0.31 | 2.82 | -16.46 | 96.77 | -22.22 | 137.29 | 0.5369 | 507.5 | 415.4 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -13.65 | 96.99 | -22.01 | 133.66 | 0.5055 | 738.0 | 624.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -13.84 | 96.93 | -22.07 | 133.88 | 0.5081 | 683.0 | 587.8 | |
| 1.25 | 2.58 | 0.73 | 1.51 | -15.68 | 96.60 | -22.40 | 136.03 | 0.5306 | 708.9 | 639.6 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -13.59 | 96.79 | -22.21 | 133.33 | 0.5071 | 648.0 | 600.8 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -13.82 | 96.73 | -22.27 | 133.59 | 0.5100 | 725.0 | 646.9 | |
| 0.00 | 2.94 | 0.00 | 1.73 | -16.42 | 96.27 | -22.73 | 136.60 | 0.5415 | -127.0 | 23.3 | |
| 0.00 | 1.69 | 0.00 | 0.99 | -16.19 | 96.30 | -22.70 | 136.33 | 0.5389 | 568.0 | 384.5 | |
| 0.00 | 1.52 | 0.00 | 0.89 | -15.81 | 95.97 | -23.03 | 135.41 | 0.5383 | 555.0 | 419.8 | |
| 1.60 | 9.45 | 0.95 | 5.58 | -16.47 | 95.85 | -23.15 | 136.15 | 0.5463 | 671.1 | 160.7 | |
| 2.58 | 6.33 | 1.48 | 3.61 | -12.21 | 96.19 | -22.81 | 130.47 | 0.5002 | -1065.7 | -793.3 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -14.73 | 95.92 | -23.07 | 133.88 | 0.5279 | 497.0 | 353.5 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -16.39 | 95.59 | -23.41 | 135.72 | 0.5481 | 396.0 | 282.6 | |
| 5.44 | 15.69 | 3.16 | 9.11 | -14.22 | 95.78 | -23.22 | 132.97 | 0.5244 | 820.4 | 578.2 | |
| 0.00 | 1.96 | 0.00 | 1.14 | -13.89 | 95.31 | -23.69 | 131.92 | 0.5263 | -216.0 | -236.8 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -12.18 | 95.45 | -23.55 | 129.53 | 0.5084 | -857.0 | -769.0 | |
| 2.50 | 515.72 | 1.46 | 305.05 | -14.45 | 95.17 | -23.82 | 132.56 | 0.5332 | 558.9 | -414.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -12.41 | 95.39 | -23.61 | 129.81 | 0.5112 | -803.0 | -707.0 | |
| 0.00 | 3.03 | 0.00 | 1.82 | -17.56 | 94.67 | -24.33 | 136.14 | 0.5691 | -721.0 | -553.4 | |
| 2.76 | -54.00 | 1.60 | -54.00 | -13.32 | 95.16 | -23.83 | 130.91 | 0.5224 | -976.5 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -12.32 | 95.27 | -23.73 | 129.52 | 0.5118 | -673.0 | -526.4 | |
| 0.00 | 2.58 | 0.00 | 1.50 | -12.90 | 95.14 | -23.86 | 130.26 | 0.5187 | -803.0 | -646.7 | |
| 1.34 | -54.00 | 0.78 | -54.00 | -13.55 | 95.04 | -23.96 | 131.10 | 0.5260 | -1045.2 | 999999 | |
| 7.84 | -54.00 | 4.60 | -54.00 | -14.69 | 94.87 | -24.13 | 132.55 | 0.5388 | 710.4 | 999999 | |
| 2.85 | 4.81 | 1.72 | 2.90 | -17.57 | 94.42 | -24.58 | 135.87 | 0.5717 | -943.1 | -814.0 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -12.43 | 94.88 | -24.12 | 129.25 | 0.5173 | -499.0 | -592.9 | |
| 2.41 | -54.00 | 1.41 | -54.00 | -13.11 | 94.20 | -24.80 | 129.48 | 0.5314 | -1054.5 | 999999 | |
| 9.98 | -54.00 | 5.93 | -54.00 | -15.07 | 93.83 | -25.17 | 131.88 | 0.5537 | 858.4 | 999999 | |
| 4.28 | -54.00 | 2.51 | -54.00 | -13.54 | 93.98 | -25.02 | 129.87 | 0.5378 | -1199.9 | 999999 | |
| 3.12 | 7.58 | 1.89 | 4.59 | -17.19 | 93.46 | -25.54 | 134.30 | 0.5776 | -880.0 | -673.9 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -18.54 | 93.14 | -25.86 | 135.66 | 0.5938 | -716.0 | -627.5 | |
| 7.04 | -54.00 | 4.14 | -54.00 | -13.65 | 93.79 | -25.20 | 129.82 | 0.5409 | -1287.3 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -17.88 | 93.11 | -25.89 | 134.79 | 0.5877 | -698.0 | -611.6 | |
| 33.34 | -54.00 | 19.68 | -54.00 | -14.02 | 93.61 | -25.39 | 130.14 | 0.5462 | -1236.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -17.02 | 93.07 | -25.93 | 133.64 | 0.5800 | 365.0 | 243.8 | |
| 2.14 | 57.49 | 1.25 | 33.54 | -12.28 | 93.60 | -25.40 | 127.56 | 0.5307 | -1192.9 | -597.7 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -17.43 | 92.90 | -26.10 | 133.98 | 0.5856 | -694.0 | -606.7 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -17.99 | 92.81 | -26.19 | 134.61 | 0.5918 | -311.0 | -294.2 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -17.80 | 92.80 | -26.19 | 134.35 | 0.5900 | -802.0 | -634.8 | |
| 1.07 | -73.00 | 0.62 | -73.00 | -12.29 | 93.47 | -25.53 | 127.42 | 0.5324 | -1026.2 | 999999 | |
| 4.99 | -73.00 | 2.92 | -73.00 | -12.01 | 93.25 | -25.74 | 126.78 | 0.5325 | -1106.2 | 999999 | |
| 2.58 | -73.00 | 1.51 | -73.00 | -12.27 | 93.16 | -25.84 | 127.07 | 0.5359 | -862.0 | 999999 | |
| 38.95 | -54.00 | 23.17 | -54.00 | -14.12 | 92.87 | -26.12 | 129.49 | 0.5554 | -1003.2 | 999999 | |
| 10.43 | 28.97 | 6.42 | 17.88 | -17.92 | 92.32 | -26.68 | 134.00 | 0.5960 | -962.1 | -488.2 | |
| 0.62 | 9.89 | 0.37 | 5.82 | -12.80 | 92.86 | -26.14 | 127.55 | 0.5440 | -779.1 | -747.5 | |
| 3.92 | -81.00 | 2.43 | -81.00 | -18.11 | 91.97 | -27.03 | 133.87 | 0.6013 | -749.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.87 | -17.24 | 92.11 | -26.88 | 132.91 | 0.5918 | -763.0 | -640.9 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -8.93 | 92.96 | -26.04 | 121.51 | 0.5107 | -760.0 | -611.5 | |
| 0.00 | 2.50 | 0.00 | 1.52 | -16.16 | 92.03 | -26.96 | 131.40 | 0.5828 | -961.0 | -786.4 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -17.40 | 91.70 | -27.30 | 132.67 | 0.5975 | -741.0 | -672.6 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -12.71 | 92.18 | -26.82 | 126.70 | 0.5511 | -617.0 | -447.7 | |
| 0.00 | 2.05 | 0.00 | 1.22 | -12.22 | 91.78 | -27.22 | 125.57 | 0.5517 | -138.0 | -117.3 | |
| 0.00 | 2.23 | 0.00 | 1.33 | -12.85 | 91.53 | -27.47 | 126.25 | 0.5597 | -897.0 | -758.9 | |
| 0.71 | 3.03 | 0.43 | 1.84 | -14.65 | 91.05 | -27.95 | 128.35 | 0.5803 | -782.0 | -567.5 | |
| 0.00 | 6.24 | 0.00 | 3.72 | -12.19 | 91.30 | -27.70 | 125.03 | 0.5571 | -483.0 | -501.1 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -12.77 | 91.16 | -27.84 | 125.77 | 0.5635 | -647.0 | -526.1 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -12.62 | 91.11 | -27.89 | 125.48 | 0.5628 | -413.0 | -434.8 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -11.82 | 91.13 | -27.87 | 124.31 | 0.5561 | -622.0 | -566.7 | |
| 0.00 | 2.58 | 0.00 | 1.56 | -13.40 | 90.87 | -28.13 | 126.40 | 0.5720 | -719.0 | -537.9 | |
| 0.00 | 2.76 | 0.00 | 1.65 | -12.34 | 90.93 | -28.07 | 124.90 | 0.5626 | -634.0 | -567.0 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -12.70 | 90.82 | -28.18 | 125.32 | 0.5669 | -506.0 | -421.3 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -7.58 | 91.28 | -27.72 | 117.65 | 0.5226 | -803.0 | -566.8 | |
| 0.00 | 2.23 | 0.00 | 1.36 | -13.18 | 89.73 | -29.27 | 125.00 | 0.5834 | -545.0 | -422.8 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -14.04 | 89.43 | -29.57 | 125.94 | 0.5935 | -493.0 | -468.5 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -16.39 | 88.91 | -30.09 | 128.64 | 0.6180 | -590.0 | -444.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
