SDO HMI 2014-09-08 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 233.15 | 1349.00 | 136.72 | 791.31 | 15.21 | 87.04 | -31.96 | 72.86 | 0.5368 | 130.7 | 12.0 | |
|
previous
or next observation for the same group /

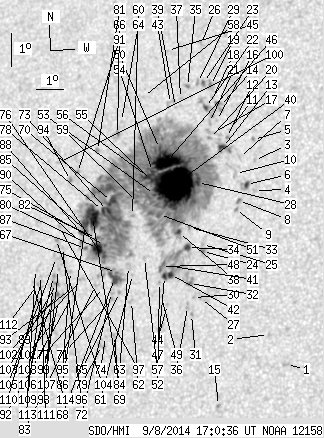

back to the solar disc SDO HMI 2014-09-08 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.21 | 0.00 | 1.77 | 10.56 | 92.47 | -26.53 | 80.82 | 0.4466 | -762.0 | -561.7 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 11.43 | 91.77 | -27.23 | 79.05 | 0.4587 | -781.0 | -656.7 | |
| 0.00 | 1.60 | 0.00 | 0.91 | 16.68 | 90.59 | -28.41 | 68.62 | 0.4915 | -775.0 | -615.7 | |
| 0.00 | 2.05 | 0.00 | 1.16 | 15.77 | 90.73 | -28.27 | 70.36 | 0.4859 | -565.0 | -420.5 | |
| 0.00 | 1.60 | 0.00 | 0.91 | 17.32 | 90.44 | -28.55 | 67.44 | 0.4961 | -847.0 | -692.9 | |
| 2.14 | 6.77 | 1.21 | 3.85 | 15.93 | 90.42 | -28.58 | 70.18 | 0.4910 | -787.8 | -487.9 | |
| 0.00 | 1.78 | 0.00 | 1.02 | 16.74 | 90.04 | -28.96 | 68.78 | 0.4995 | 181.0 | 223.4 | |
| 0.00 | 2.32 | 0.00 | 1.32 | 15.43 | 90.21 | -28.79 | 71.27 | 0.4922 | 954.0 | 883.4 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 15.15 | 90.14 | -28.86 | 71.86 | 0.4922 | 780.0 | 621.9 | |
| 0.00 | 3.21 | 0.00 | 1.83 | 16.24 | 89.97 | -29.03 | 69.77 | 0.4985 | -142.0 | 132.6 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 17.57 | 89.53 | -29.47 | 67.44 | 0.5099 | -441.0 | -294.5 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 17.32 | 89.47 | -29.53 | 67.95 | 0.5097 | -518.0 | -449.1 | |
| 3.57 | 1110.14 | 2.05 | 651.93 | 17.01 | 89.37 | -29.62 | 68.59 | 0.5098 | 989.5 | 39.4 | |
| 0.00 | 5.26 | 0.00 | 3.05 | 18.25 | 89.04 | -29.96 | 66.42 | 0.5195 | 578.0 | 559.6 | |
| 0.00 | 1.78 | 0.00 | 1.01 | 9.19 | 90.24 | -28.76 | 84.07 | 0.4794 | -812.0 | -667.0 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 17.82 | 89.01 | -29.99 | 67.24 | 0.5181 | 358.0 | 293.9 | |
| 0.00 | 6.42 | 0.00 | 3.71 | 17.45 | 88.97 | -30.03 | 67.96 | 0.5171 | 296.0 | 357.1 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 18.51 | 88.73 | -30.27 | 66.11 | 0.5248 | -289.0 | -224.8 | |
| 0.00 | 4.10 | 0.00 | 2.39 | 18.88 | 88.59 | -30.41 | 65.52 | 0.5284 | 931.0 | 658.4 | |
| 0.00 | 1.78 | 0.00 | 1.03 | 17.25 | 88.86 | -30.14 | 68.37 | 0.5179 | 909.0 | 744.4 | |
| 0.00 | 1.78 | 0.00 | 1.03 | 17.74 | 88.77 | -30.23 | 67.51 | 0.5211 | 872.0 | 764.2 | |
| 1.69 | 10.96 | 0.98 | 6.37 | 18.19 | 88.54 | -30.46 | 66.80 | 0.5261 | 1002.4 | 735.3 | |
| 0.89 | 2.67 | 0.52 | 1.56 | 18.95 | 88.31 | -30.69 | 65.53 | 0.5324 | 902.5 | 813.0 | |
| 0.62 | 2.32 | 0.36 | 1.33 | 13.81 | 89.15 | -29.85 | 74.88 | 0.5026 | -952.6 | -803.4 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 14.02 | 89.12 | -29.88 | 74.48 | 0.5036 | -844.0 | -622.4 | |
| 0.00 | 2.05 | 0.00 | 1.21 | 20.15 | 87.98 | -31.01 | 63.59 | 0.5422 | 608.0 | 556.4 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 12.38 | 89.27 | -29.73 | 77.68 | 0.4978 | -860.0 | -708.5 | |
| 2.85 | -13.00 | 1.65 | -13.00 | 15.89 | 88.65 | -30.34 | 71.04 | 0.5158 | 1308.7 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.57 | 18.94 | 88.09 | -30.91 | 65.67 | 0.5353 | 912.0 | 666.9 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 12.40 | 89.02 | -29.98 | 77.71 | 0.5015 | -924.0 | -794.8 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 11.88 | 89.01 | -29.99 | 78.74 | 0.5007 | -919.0 | -812.1 | |
| 0.89 | 9.45 | 0.51 | 5.42 | 12.81 | 88.82 | -30.18 | 76.94 | 0.5052 | -911.3 | -316.9 | |
| 0.00 | 2.14 | 0.00 | 1.23 | 14.51 | 88.58 | -30.42 | 73.71 | 0.5127 | 578.0 | 525.4 | |
| 3.12 | 60.88 | 1.80 | 35.16 | 13.90 | 88.60 | -30.40 | 74.89 | 0.5108 | 837.3 | 4.8 | |
| 0.00 | 2.32 | 0.00 | 1.36 | 18.79 | 87.75 | -31.25 | 66.11 | 0.5393 | 849.0 | 715.4 | |
| 0.00 | 2.58 | 0.00 | 1.48 | 12.11 | 88.84 | -30.16 | 78.32 | 0.5036 | -880.0 | -806.8 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 18.41 | 87.56 | -31.43 | 66.88 | 0.5401 | 464.0 | 386.9 | |
| 2.41 | -13.00 | 1.39 | -13.00 | 14.33 | 88.21 | -30.79 | 74.17 | 0.5175 | 611.5 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.42 | 18.15 | 87.43 | -31.57 | 67.41 | 0.5409 | 684.0 | 630.0 | |
| 95.64 | -13.00 | 55.66 | -13.00 | 15.78 | 87.83 | -31.17 | 71.58 | 0.5270 | 1242.3 | 999999 | |
| 0.71 | -34.00 | 0.41 | -34.00 | 13.29 | 88.14 | -30.85 | 76.19 | 0.5160 | -339.2 | 999999 | |
| 3.48 | -34.00 | 2.01 | -34.00 | 13.04 | 88.11 | -30.89 | 76.68 | 0.5161 | -707.8 | 999999 | |
| 0.00 | 5.08 | 0.00 | 3.00 | 18.23 | 87.23 | -31.77 | 67.36 | 0.5440 | 435.0 | 526.1 | |
| 0.00 | 1.52 | 0.00 | 0.87 | 12.13 | 88.12 | -30.88 | 78.44 | 0.5142 | -788.0 | -567.4 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 19.85 | 86.76 | -32.23 | 64.76 | 0.5568 | 621.0 | 491.2 | |
| 32.62 | -13.00 | 19.10 | -13.00 | 16.46 | 87.42 | -31.58 | 70.48 | 0.5350 | 1109.4 | 999999 | |
| 2.85 | -34.00 | 1.65 | -34.00 | 12.97 | 87.90 | -31.10 | 76.87 | 0.5189 | -625.8 | 999999 | |
| 2.58 | -34.00 | 1.50 | -34.00 | 13.26 | 87.75 | -31.25 | 76.34 | 0.5217 | -515.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 12.36 | 87.87 | -31.13 | 78.05 | 0.5182 | -810.0 | -680.5 | |
| 0.27 | -13.00 | 0.16 | -13.00 | 16.84 | 87.09 | -31.91 | 69.93 | 0.5408 | 776.7 | 999999 | |
| 2.94 | -13.00 | 1.72 | -13.00 | 14.83 | 87.44 | -31.56 | 73.48 | 0.5298 | -243.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 12.78 | 87.74 | -31.25 | 77.28 | 0.5208 | -888.0 | -771.6 | |
| 0.27 | -13.00 | 0.16 | -13.00 | 15.43 | 87.15 | -31.84 | 72.47 | 0.5355 | 719.0 | 999999 | |
| 1.87 | -13.00 | 1.10 | -13.00 | 16.12 | 86.96 | -32.04 | 71.27 | 0.5402 | 696.2 | 999999 | |
| 0.27 | -13.00 | 0.16 | -13.00 | 15.85 | 86.97 | -32.03 | 71.77 | 0.5392 | 749.0 | 999999 | |
| 2.76 | -13.00 | 1.63 | -13.00 | 15.96 | 86.80 | -32.20 | 71.63 | 0.5419 | 713.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.78 | 13.47 | 87.10 | -31.90 | 76.13 | 0.5314 | -635.0 | -491.9 | |
| 0.00 | 0.89 | 0.00 | 0.53 | 18.38 | 86.18 | -32.82 | 67.57 | 0.5586 | 593.0 | 436.1 | |
| 1.16 | -13.00 | 0.68 | -13.00 | 15.17 | 86.53 | -32.47 | 73.15 | 0.5435 | 283.5 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.16 | 14.74 | 86.46 | -32.54 | 73.96 | 0.5434 | -390.0 | -336.7 | |
| 0.00 | 1.16 | 0.00 | 0.68 | 12.96 | 86.73 | -32.26 | 77.17 | 0.5357 | -463.0 | -432.9 | |
| 0.00 | 2.41 | 0.00 | 1.41 | 12.14 | 86.81 | -32.19 | 78.68 | 0.5332 | -651.0 | -550.3 | |
| 0.00 | 4.46 | 0.00 | 2.62 | 13.19 | 86.55 | -32.45 | 76.78 | 0.5387 | -246.0 | -327.2 | |
| 0.00 | 1.16 | 0.00 | 0.69 | 17.57 | 85.51 | -33.49 | 69.26 | 0.5646 | 503.0 | 352.2 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 12.38 | 86.34 | -32.66 | 78.32 | 0.5404 | -886.0 | -755.1 | |
| 0.00 | 3.83 | 0.00 | 2.30 | 17.16 | 85.45 | -33.55 | 69.99 | 0.5642 | 739.0 | 549.7 | |
| 0.53 | -13.00 | 0.32 | -13.00 | 12.98 | 86.14 | -32.86 | 77.26 | 0.5441 | -1096.2 | 999999 | |
| 8.20 | -13.00 | 4.84 | -13.00 | 12.79 | 86.10 | -32.90 | 77.61 | 0.5445 | -1021.5 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.94 | 11.07 | 86.33 | -32.67 | 80.74 | 0.5389 | -860.0 | -731.7 | |
| 7.04 | -13.00 | 4.19 | -13.00 | 15.11 | 85.61 | -33.39 | 73.54 | 0.5561 | -934.4 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.05 | 12.15 | 86.08 | -32.92 | 78.79 | 0.5438 | -681.0 | -555.0 | |
| 0.00 | 1.96 | 0.00 | 1.16 | 12.36 | 86.05 | -32.95 | 78.41 | 0.5445 | -586.0 | -606.5 | |
| 3.03 | -13.00 | 1.80 | -13.00 | 14.83 | 85.51 | -33.49 | 74.07 | 0.5569 | -1269.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 11.02 | 86.00 | -33.00 | 80.88 | 0.5435 | -725.0 | -619.4 | |
| 1.60 | -13.00 | 0.95 | -13.00 | 13.76 | 85.57 | -33.42 | 75.96 | 0.5536 | -1187.3 | 999999 | |
| 2.05 | -13.00 | 1.22 | -13.00 | 13.43 | 85.59 | -33.41 | 76.56 | 0.5528 | -992.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 12.49 | 85.73 | -33.27 | 78.22 | 0.5492 | -368.0 | -352.2 | |
| 2.05 | -13.00 | 1.22 | -13.00 | 14.82 | 85.32 | -33.68 | 74.14 | 0.5594 | -1166.7 | 999999 | |
| 0.00 | 3.65 | 0.00 | 2.16 | 10.74 | 85.89 | -33.11 | 81.41 | 0.5448 | -486.0 | -597.6 | |
| 9.36 | -13.00 | 5.57 | -13.00 | 13.66 | 85.33 | -33.67 | 76.21 | 0.5568 | -1105.6 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.29 | 16.62 | 84.79 | -34.21 | 71.15 | 0.5714 | -929.0 | -790.4 | |
| 1.07 | -13.00 | 0.64 | -13.00 | 13.96 | 85.24 | -33.75 | 75.70 | 0.5586 | -945.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 12.53 | 85.43 | -33.57 | 78.21 | 0.5536 | -608.0 | -522.3 | |
| 22.19 | -13.00 | 13.29 | -13.00 | 14.61 | 84.98 | -34.02 | 74.60 | 0.5636 | -1041.9 | 999999 | |
| 0.27 | -13.00 | 0.16 | -13.00 | 14.14 | 84.84 | -34.16 | 75.46 | 0.5647 | -825.0 | 999999 | |
| 5.53 | -13.00 | 3.32 | -13.00 | 14.35 | 84.76 | -34.24 | 75.11 | 0.5661 | -899.7 | 999999 | |
| 0.71 | -13.00 | 0.43 | -13.00 | 13.63 | 84.89 | -34.11 | 76.36 | 0.5630 | -598.2 | 999999 | |
| 1.96 | -13.00 | 1.18 | -13.00 | 14.10 | 84.66 | -34.34 | 75.58 | 0.5671 | -730.3 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.60 | 12.68 | 84.88 | -34.11 | 78.04 | 0.5615 | -693.0 | -614.5 | |
| 0.00 | 4.19 | 0.00 | 2.51 | 13.77 | 84.71 | -34.29 | 76.15 | 0.5657 | -484.0 | -441.1 | |
| 0.00 | 1.60 | 0.00 | 0.97 | 15.90 | 84.17 | -34.83 | 72.58 | 0.5778 | -878.0 | -774.4 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 12.17 | 84.62 | -34.38 | 78.98 | 0.5645 | -734.0 | -540.0 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 12.42 | 84.59 | -34.41 | 78.56 | 0.5653 | -723.0 | -562.7 | |
| 0.45 | 2.23 | 0.27 | 1.35 | 15.64 | 83.95 | -35.04 | 73.09 | 0.5801 | -713.6 | -615.1 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 12.89 | 84.44 | -34.56 | 77.74 | 0.5680 | -751.0 | -623.8 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 13.60 | 84.02 | -34.98 | 76.60 | 0.5750 | -586.0 | -508.4 | |
| 0.00 | 1.43 | 0.00 | 0.86 | 14.22 | 83.80 | -35.20 | 75.56 | 0.5792 | -704.0 | -566.8 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 12.92 | 83.98 | -35.02 | 77.78 | 0.5745 | -778.0 | -715.3 | |
| 0.00 | 1.87 | 0.00 | 1.13 | 11.99 | 84.12 | -34.88 | 79.38 | 0.5712 | -707.0 | -547.6 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 16.16 | 83.39 | -35.61 | 72.38 | 0.5890 | -618.0 | -462.9 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 11.54 | 84.19 | -34.81 | 80.17 | 0.5698 | -535.0 | -390.1 | |
| 0.98 | 5.62 | 0.59 | 3.38 | 12.17 | 84.06 | -34.94 | 79.08 | 0.5723 | -709.5 | -592.6 | |
| 0.53 | 1.43 | 0.32 | 0.86 | 12.49 | 83.97 | -35.03 | 78.52 | 0.5740 | -877.5 | -729.9 | |
| 0.00 | 1.43 | 0.00 | 0.86 | 13.82 | 83.75 | -35.24 | 76.26 | 0.5790 | -690.0 | -589.8 | |
| 0.00 | 4.19 | 0.00 | 2.54 | 13.28 | 83.85 | -35.15 | 77.18 | 0.5769 | -551.0 | -492.9 | |
| 0.00 | 1.69 | 0.00 | 1.02 | 12.70 | 83.83 | -35.17 | 78.19 | 0.5763 | -702.0 | -612.6 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 12.33 | 83.84 | -35.15 | 78.82 | 0.5755 | -526.0 | -478.7 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 11.85 | 83.88 | -35.12 | 79.66 | 0.5745 | -562.0 | -480.4 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 12.34 | 83.46 | -35.53 | 78.87 | 0.5808 | -223.0 | -351.2 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 12.51 | 83.40 | -35.60 | 78.57 | 0.5820 | -456.0 | -421.8 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 12.69 | 83.33 | -35.67 | 78.28 | 0.5831 | -451.0 | -393.2 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 12.41 | 83.26 | -35.74 | 78.77 | 0.5837 | -526.0 | -397.1 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 12.86 | 83.11 | -35.89 | 78.03 | 0.5864 | -316.0 | -273.6 | |
| 0.00 | 0.80 | 0.00 | 0.49 | 12.49 | 83.06 | -35.94 | 78.66 | 0.5866 | -417.0 | -341.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
