SDO HMI 2014-09-08 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.18 | 76.47 | 6.63 | 56.02 | -20.65 | 79.97 | -39.03 | 126.89 | 0.7381 | 255.1 | 106.0 | |
|
previous
or next observation for the same group /

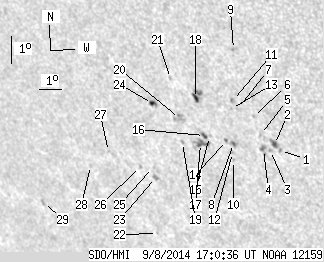

back to the solar disc SDO HMI 2014-09-08 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 1.12 | -20.93 | 83.26 | -35.74 | 129.52 | 0.7095 | 787.0 | 637.6 | |
| 1.96 | 4.99 | 1.37 | 3.50 | -20.74 | 83.07 | -35.93 | 129.16 | 0.7099 | 862.7 | 667.8 | |
| 0.00 | 1.78 | 0.00 | 1.26 | -20.96 | 82.85 | -36.15 | 129.25 | 0.7136 | 690.0 | 551.7 | |
| 0.00 | 5.08 | 0.00 | 3.59 | -20.95 | 82.57 | -36.43 | 129.03 | 0.7161 | 733.0 | 531.7 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -20.44 | 82.60 | -36.40 | 128.45 | 0.7124 | 573.0 | 514.2 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -19.84 | 82.48 | -36.52 | 127.66 | 0.7094 | 583.0 | 482.2 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -19.62 | 81.90 | -37.10 | 126.98 | 0.7136 | -350.0 | -329.9 | |
| 0.71 | 3.39 | 0.51 | 2.43 | -20.84 | 81.39 | -37.61 | 128.04 | 0.7265 | 739.6 | 673.1 | |
| 0.00 | 1.69 | 0.00 | 1.17 | -17.63 | 82.25 | -36.75 | 124.82 | 0.6969 | 737.0 | 586.3 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -21.43 | 81.21 | -37.79 | 128.60 | 0.7321 | 504.0 | 434.5 | |
| 0.00 | 2.41 | 0.00 | 1.70 | -19.36 | 81.77 | -37.23 | 126.58 | 0.7131 | -533.0 | -442.8 | |
| 0.00 | 0.80 | 0.00 | 0.58 | -21.16 | 81.25 | -37.75 | 128.31 | 0.7299 | 680.0 | 482.8 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -19.64 | 81.65 | -37.35 | 126.82 | 0.7161 | -459.0 | -414.8 | |
| 0.45 | 1.43 | 0.32 | 1.03 | -20.76 | 81.12 | -37.87 | 127.76 | 0.7285 | 604.2 | 512.5 | |
| 0.00 | 1.52 | 0.00 | 1.10 | -20.68 | 80.45 | -38.55 | 127.20 | 0.7343 | 533.0 | 414.4 | |
| 1.52 | 2.67 | 1.11 | 1.95 | -20.66 | 80.25 | -38.75 | 127.05 | 0.7361 | 622.9 | 481.6 | |
| 0.00 | 9.54 | 0.00 | 7.00 | -20.96 | 79.99 | -39.01 | 127.21 | 0.7404 | 641.0 | 445.9 | |
| 2.67 | 9.54 | 1.93 | 6.85 | -19.42 | 80.24 | -38.76 | 125.59 | 0.7283 | -636.2 | -656.3 | |
| 0.00 | 1.69 | 0.00 | 1.26 | -20.99 | 79.22 | -39.78 | 126.73 | 0.7476 | 450.0 | 329.7 | |
| 0.00 | 7.75 | 0.00 | 5.70 | -20.16 | 79.36 | -39.64 | 125.87 | 0.7414 | -609.0 | -600.0 | |
| 0.00 | 1.16 | 0.00 | 0.84 | -18.82 | 79.38 | -39.62 | 124.32 | 0.7331 | -439.0 | -384.0 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -24.32 | 76.92 | -42.08 | 128.96 | 0.7877 | 487.0 | 416.0 | |
| 0.00 | 3.30 | 0.00 | 2.55 | -22.32 | 77.61 | -41.39 | 127.20 | 0.7702 | 610.0 | 511.2 | |
| 1.87 | 4.55 | 1.39 | 3.38 | -19.75 | 78.35 | -40.65 | 124.74 | 0.7484 | -647.4 | -605.0 | |
| 0.00 | 0.53 | 0.00 | 0.41 | -21.98 | 77.60 | -41.40 | 126.81 | 0.7683 | 543.0 | 559.2 | |
| 0.00 | 1.34 | 0.00 | 1.04 | -21.99 | 77.07 | -41.93 | 126.50 | 0.7731 | 614.0 | 538.0 | |
| 0.00 | 0.89 | 0.00 | 0.70 | -21.60 | 75.80 | -43.20 | 125.29 | 0.7821 | 517.0 | 383.3 | |
| 0.00 | 1.43 | 0.00 | 1.16 | -22.17 | 74.76 | -44.24 | 125.33 | 0.7942 | 127.0 | 174.5 | |
| 0.00 | 2.32 | 0.00 | 2.03 | -23.72 | 71.87 | -47.13 | 125.44 | 0.8258 | -527.0 | -470.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
