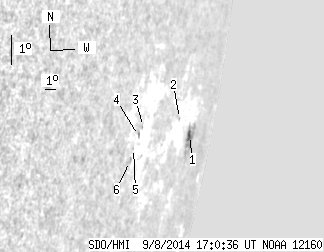

SDO HMI 2014-09-08 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.12 | 25.40 | 9.79 | 73.38 | -9.69 | 197.46 | 78.46 | 258.75 | 0.9846 | 27.4 | -63.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.12 | 19.07 | 9.79 | 61.39 | -9.78 | 198.48 | 79.48 | 258.83 | 0.9883 | 157.5 | -35.3 | |
| 0.00 | 1.07 | 0.00 | 2.70 | -8.97 | 196.26 | 77.26 | 259.29 | 0.9814 | 347.0 | 263.4 | |
| 0.00 | 0.71 | 0.00 | 1.30 | -8.66 | 191.74 | 72.74 | 258.83 | 0.9635 | -443.0 | -409.5 | |
| 0.00 | 1.25 | 0.00 | 2.23 | -8.89 | 191.33 | 72.33 | 258.52 | 0.9618 | -358.0 | -380.7 | |
| 0.00 | 0.27 | 0.00 | 0.47 | -9.25 | 191.01 | 72.01 | 258.09 | 0.9606 | -419.0 | -391.0 | |
| 0.00 | 3.03 | 0.00 | 5.29 | -9.63 | 190.80 | 71.80 | 257.66 | 0.9600 | -263.0 | -261.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
