SDO HMI 2014-09-08 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.03 | 22.99 | 7.54 | 14.32 | -13.07 | 149.94 | 31.49 | 237.09 | 0.6087 | 440.1 | -59.4 | |
|
previous
or next observation for the same group /

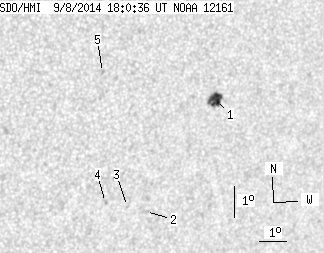

back to the solar disc SDO HMI 2014-09-08 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.03 | 15.69 | 7.54 | 9.83 | -12.41 | 150.90 | 32.45 | 238.81 | 0.6148 | 895.6 | 604.3 | |
| 0.00 | 2.58 | 0.00 | 1.62 | -15.89 | 148.87 | 30.43 | 232.32 | 0.6177 | -36.0 | -189.0 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -15.68 | 148.18 | 29.74 | 231.97 | 0.6085 | -333.0 | -400.2 | |
| 0.00 | 1.69 | 0.00 | 1.04 | -15.49 | 147.36 | 28.92 | 231.44 | 0.5981 | -701.0 | -590.9 | |
| 0.00 | 2.05 | 0.00 | 1.22 | -11.27 | 146.71 | 28.26 | 236.89 | 0.5566 | -604.0 | -507.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
