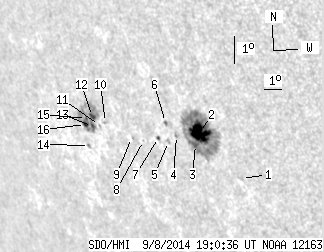

SDO HMI 2014-09-08 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.08 | 175.38 | 33.26 | 162.91 | -16.43 | 64.62 | -53.28 | 114.70 | 0.8472 | 267.9 | 57.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.23 | 0.00 | 1.93 | -17.60 | 68.16 | -49.73 | 117.45 | 0.8217 | 193.0 | 197.5 | |
| 23.17 | 117.37 | 20.51 | 103.89 | -16.26 | 66.56 | -51.33 | 115.25 | 0.8308 | 830.0 | 226.1 | |
| 3.74 | -2.00 | 3.35 | -2.00 | -16.69 | 66.20 | -51.69 | 115.58 | 0.8355 | -189.5 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.79 | -16.49 | 65.30 | -52.60 | 114.99 | 0.8425 | 414.0 | 401.8 | |
| 0.00 | 1.87 | 0.00 | 1.74 | -16.74 | 64.78 | -53.12 | 115.07 | 0.8477 | 367.0 | 290.2 | |
| 0.53 | 1.69 | 0.49 | 1.56 | -16.11 | 64.87 | -53.03 | 114.40 | 0.8449 | 372.2 | 312.2 | |
| 0.71 | 1.69 | 0.67 | 1.59 | -16.66 | 64.28 | -53.62 | 114.79 | 0.8516 | 125.1 | 153.7 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -16.85 | 63.38 | -54.51 | 114.66 | 0.8595 | 119.0 | 178.0 | |
| 0.00 | 0.71 | 0.00 | 0.70 | -16.83 | 62.73 | -55.16 | 114.39 | 0.8646 | -544.0 | -493.1 | |
| 0.00 | 1.07 | 0.00 | 1.08 | -16.48 | 61.42 | -56.47 | 113.54 | 0.8739 | -693.0 | -627.8 | |
| 0.00 | 1.16 | 0.00 | 1.19 | -16.62 | 61.01 | -56.88 | 113.55 | 0.8775 | -599.0 | -512.9 | |
| 2.94 | 43.67 | 3.03 | 45.38 | -16.36 | 60.72 | -57.17 | 113.17 | 0.8790 | -732.0 | -285.3 | |
| 2.14 | -12.00 | 2.22 | -12.00 | -16.70 | 60.56 | -57.33 | 113.49 | 0.8811 | -639.3 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.80 | -17.38 | 60.05 | -57.84 | 114.04 | 0.8866 | -303.0 | -319.0 | |
| 0.62 | -12.00 | 0.65 | -12.00 | -16.47 | 60.32 | -57.58 | 113.15 | 0.8823 | -348.1 | 999999 | |
| 2.23 | -12.00 | 2.34 | -12.00 | -16.68 | 60.16 | -57.74 | 113.33 | 0.8840 | -340.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
