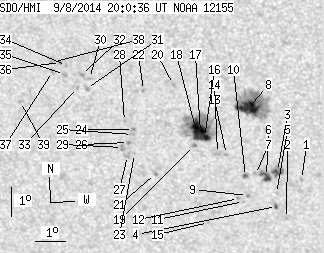

SDO HMI 2014-09-08 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.66 | 206.94 | 27.47 | 117.04 | -19.74 | 107.02 | -10.32 | 159.57 | 0.4853 | 618.9 | 456.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.44 | 109.97 | -7.37 | 166.01 | 0.4958 | 714.0 | 584.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -22.80 | 109.40 | -7.94 | 165.71 | 0.5177 | 768.0 | 585.5 | |
| 0.00 | 9.09 | 0.00 | 5.18 | -21.18 | 109.20 | -8.14 | 164.47 | 0.4949 | 1011.0 | 826.5 | |
| 0.62 | 1.78 | 0.36 | 1.03 | -22.39 | 109.10 | -8.24 | 164.96 | 0.5129 | -553.0 | -465.5 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -21.94 | 109.12 | -8.22 | 164.76 | 0.5063 | 610.0 | 516.3 | |
| 4.46 | 7.58 | 2.54 | 4.33 | -21.36 | 108.83 | -8.51 | 163.90 | 0.4990 | 879.2 | 681.0 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -21.30 | 108.47 | -8.87 | 163.23 | 0.4997 | 228.0 | 332.8 | |
| 19.34 | 68.44 | 10.82 | 38.25 | -19.02 | 108.38 | -8.96 | 161.54 | 0.4670 | 1084.0 | 578.0 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -22.03 | 108.16 | -9.18 | 163.13 | 0.5115 | 666.0 | 597.2 | |
| 0.80 | 2.41 | 0.46 | 1.38 | -21.37 | 108.14 | -9.20 | 162.68 | 0.5022 | 843.9 | 685.2 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -22.24 | 108.02 | -9.32 | 163.01 | 0.5152 | 292.0 | 372.5 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -22.14 | 107.86 | -9.48 | 162.68 | 0.5144 | 808.0 | 597.9 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -20.63 | 107.57 | -9.77 | 161.17 | 0.4943 | 754.0 | 663.9 | |
| 0.00 | 2.85 | 0.00 | 1.62 | -20.60 | 107.27 | -10.07 | 160.63 | 0.4953 | 839.0 | 716.9 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -23.00 | 106.80 | -10.54 | 161.45 | 0.5314 | 684.0 | 601.4 | |
| 5.97 | 66.04 | 3.39 | 37.38 | -20.06 | 106.88 | -10.46 | 159.54 | 0.4897 | 874.1 | 557.0 | |
| 8.02 | -16.00 | 4.55 | -16.00 | -19.90 | 106.77 | -10.57 | 159.20 | 0.4880 | 1197.8 | 999999 | |
| 9.45 | -16.00 | 5.35 | -16.00 | -19.73 | 106.61 | -10.73 | 158.80 | 0.4864 | 1218.4 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.07 | -20.34 | 106.54 | -10.80 | 159.14 | 0.4955 | 708.0 | 605.6 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.30 | 106.00 | -11.34 | 156.47 | 0.4698 | 859.0 | 709.4 | |
| 0.00 | 2.23 | 0.00 | 1.29 | -21.34 | 105.17 | -12.17 | 157.58 | 0.5169 | 840.0 | 681.2 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -18.53 | 105.00 | -12.34 | 154.88 | 0.4792 | 996.0 | 766.9 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.67 | 104.53 | -12.81 | 155.98 | 0.5115 | 741.0 | 582.4 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -19.85 | 104.57 | -12.77 | 155.34 | 0.5002 | 1019.0 | 897.6 | |
| 0.00 | 1.69 | 0.00 | 0.97 | -20.02 | 104.52 | -12.82 | 155.41 | 0.5028 | 752.0 | 706.6 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -20.30 | 104.37 | -12.97 | 155.39 | 0.5075 | 964.0 | 845.6 | |
| 0.00 | 3.83 | 0.00 | 2.21 | -20.75 | 104.30 | -13.04 | 155.65 | 0.5140 | 629.0 | 594.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -19.59 | 104.30 | -13.04 | 154.64 | 0.4983 | 821.0 | 558.1 | |
| 0.00 | 3.21 | 0.00 | 1.85 | -20.48 | 104.15 | -13.19 | 155.19 | 0.5112 | 750.0 | 710.6 | |
| 0.00 | 1.69 | 0.00 | 0.96 | -18.18 | 103.27 | -14.07 | 151.52 | 0.4864 | -785.0 | -640.2 | |
| 0.00 | 2.32 | 0.00 | 1.32 | -18.51 | 103.14 | -14.20 | 151.65 | 0.4918 | -670.0 | -517.8 | |
| 0.00 | 2.23 | 0.00 | 1.26 | -18.05 | 103.02 | -14.32 | 150.96 | 0.4866 | -869.0 | -742.4 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -18.49 | 102.85 | -14.49 | 151.13 | 0.4936 | -708.0 | -620.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -17.76 | 102.55 | -14.79 | 149.87 | 0.4863 | -747.0 | -639.0 | |
| 0.00 | 2.76 | 0.00 | 1.57 | -18.07 | 102.46 | -14.88 | 150.04 | 0.4910 | -789.0 | -662.5 | |
| 0.00 | 1.60 | 0.00 | 0.91 | -17.67 | 102.36 | -14.98 | 149.45 | 0.4866 | -921.0 | -801.9 | |
| 0.00 | 2.23 | 0.00 | 1.27 | -17.98 | 102.07 | -15.27 | 149.31 | 0.4928 | -621.0 | -611.4 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -17.68 | 102.06 | -15.28 | 148.97 | 0.4890 | -981.0 | -882.3 | |
| 0.00 | 2.05 | 0.00 | 1.18 | -19.03 | 100.91 | -16.43 | 148.59 | 0.5151 | -689.0 | -604.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
