SDO HMI 2014-09-08 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 243.68 | 1081.63 | 139.20 | 619.64 | -13.81 | 95.98 | -21.36 | 135.22 | 0.5007 | -65.9 | -137.2 | |
|
previous
or next observation for the same group /

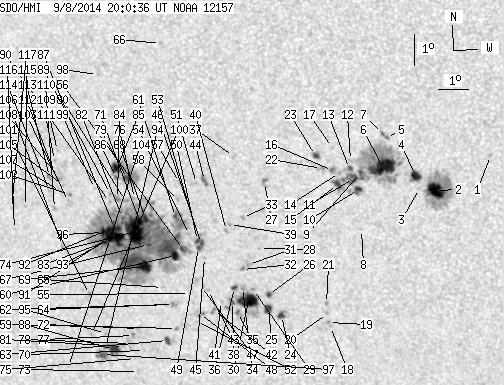

back to the solar disc SDO HMI 2014-09-08 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 0.90 | -11.08 | 105.44 | -11.90 | 147.02 | 0.3734 | 954.0 | 769.6 | |
| 17.20 | 78.69 | 9.31 | 42.59 | -12.25 | 103.64 | -13.70 | 144.99 | 0.4050 | 1362.3 | 471.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -12.20 | 103.14 | -14.20 | 143.93 | 0.4091 | 563.0 | 474.7 | |
| 6.51 | 10.69 | 3.52 | 5.79 | -11.79 | 103.03 | -14.31 | 143.12 | 0.4048 | 1181.1 | 716.4 | |
| 0.45 | 4.10 | 0.24 | 2.21 | -10.61 | 102.17 | -15.17 | 139.62 | 0.3986 | 1020.6 | 709.6 | |
| 29.50 | 162.56 | 16.02 | 88.51 | -11.53 | 101.99 | -15.35 | 140.78 | 0.4118 | 1166.1 | 575.3 | |
| 0.36 | -5.00 | 0.19 | -5.00 | -10.48 | 102.05 | -15.29 | 139.19 | 0.3984 | 765.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -13.58 | 101.19 | -16.15 | 142.38 | 0.4448 | 519.0 | 435.1 | |
| 1.43 | -6.00 | 0.78 | -6.00 | -11.75 | 101.28 | -16.06 | 139.82 | 0.4217 | 996.6 | 999999 | |
| 3.48 | -6.00 | 1.90 | -6.00 | -12.30 | 101.18 | -16.16 | 140.49 | 0.4293 | 916.8 | 999999 | |
| 5.35 | -6.00 | 2.93 | -6.00 | -11.95 | 101.04 | -16.30 | 139.72 | 0.4265 | 974.2 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.88 | -11.38 | 100.98 | -16.36 | 138.71 | 0.4203 | 530.0 | 407.0 | |
| 1.43 | -6.00 | 0.78 | -6.00 | -11.64 | 100.93 | -16.41 | 139.04 | 0.4238 | 841.9 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.88 | -11.78 | 100.60 | -16.74 | 138.69 | 0.4289 | 753.0 | 542.9 | |
| 4.19 | -6.00 | 2.30 | -6.00 | -12.16 | 100.51 | -16.83 | 139.13 | 0.4344 | 852.8 | 999999 | |
| 0.00 | 3.74 | 0.00 | 2.05 | -11.72 | 100.38 | -16.96 | 138.22 | 0.4306 | 822.0 | 669.8 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -10.99 | 100.42 | -16.92 | 137.12 | 0.4216 | 737.0 | 607.9 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.80 | 99.90 | -17.44 | 144.49 | 0.4959 | -803.0 | -687.3 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -16.67 | 99.85 | -17.49 | 144.25 | 0.4948 | -904.0 | -758.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.37 | 99.85 | -17.49 | 143.87 | 0.4912 | -815.0 | -705.4 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -16.04 | 99.84 | -17.50 | 143.46 | 0.4872 | -861.0 | -683.8 | |
| 0.00 | 3.65 | 0.00 | 2.01 | -11.67 | 100.03 | -17.31 | 137.56 | 0.4337 | 786.0 | 537.1 | |
| 2.23 | 4.01 | 1.22 | 2.20 | -11.26 | 99.86 | -17.48 | 136.63 | 0.4308 | 911.4 | 676.9 | |
| 2.85 | 5.97 | 1.64 | 3.43 | -16.50 | 98.31 | -19.03 | 141.72 | 0.5067 | 887.8 | 654.6 | |
| 4.46 | 6.68 | 2.56 | 3.84 | -16.29 | 97.90 | -19.44 | 140.85 | 0.5081 | 918.0 | 563.6 | |
| 1.78 | 3.21 | 1.02 | 1.84 | -15.83 | 97.94 | -19.40 | 140.32 | 0.5024 | 913.2 | 730.4 | |
| 0.00 | 4.46 | 0.00 | 2.48 | -12.19 | 98.14 | -19.20 | 135.40 | 0.4598 | 603.0 | 669.2 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -14.33 | 97.79 | -19.55 | 138.06 | 0.4871 | 780.0 | 694.4 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -15.68 | 97.46 | -19.88 | 139.43 | 0.5055 | 995.0 | 881.1 | |
| 18.98 | 44.11 | 10.93 | 25.43 | -16.05 | 97.25 | -20.09 | 139.63 | 0.5116 | 1085.8 | 284.3 | |
| 0.00 | 3.74 | 0.00 | 2.13 | -14.87 | 97.37 | -19.97 | 138.21 | 0.4973 | 793.0 | 613.0 | |
| 0.00 | 2.14 | 0.00 | 1.22 | -15.04 | 97.16 | -20.18 | 138.14 | 0.5014 | 900.0 | 745.1 | |
| 0.00 | 1.96 | 0.00 | 1.11 | -13.35 | 97.32 | -20.02 | 135.96 | 0.4812 | 964.0 | 681.6 | |
| 0.00 | 2.41 | 0.00 | 1.38 | -15.63 | 97.10 | -20.24 | 138.86 | 0.5085 | 845.0 | 802.1 | |
| 0.80 | 5.88 | 0.46 | 3.41 | -16.47 | 96.84 | -20.50 | 139.60 | 0.5203 | 682.8 | 374.3 | |
| 1.78 | 3.39 | 1.03 | 1.95 | -15.65 | 96.83 | -20.51 | 138.50 | 0.5113 | 802.5 | 602.1 | |
| 0.00 | 1.96 | 0.00 | 1.09 | -11.40 | 97.18 | -20.16 | 132.75 | 0.4620 | -442.0 | -361.0 | |
| 1.43 | -30.00 | 0.82 | -30.00 | -16.11 | 96.71 | -20.63 | 138.96 | 0.5176 | 670.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -13.60 | 96.86 | -20.48 | 135.68 | 0.4886 | 803.0 | 735.5 | |
| 0.00 | 2.14 | 0.00 | 1.22 | -13.80 | 96.75 | -20.59 | 135.81 | 0.4920 | 599.0 | 540.2 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -16.13 | 96.34 | -21.00 | 138.47 | 0.5214 | 614.0 | 417.9 | |
| 0.00 | 2.76 | 0.00 | 1.61 | -16.44 | 96.03 | -21.31 | 138.47 | 0.5278 | 831.0 | 639.5 | |
| 0.00 | 1.52 | 0.00 | 0.88 | -15.79 | 95.94 | -21.40 | 137.48 | 0.5217 | 813.0 | 553.6 | |
| 1.78 | 5.08 | 1.01 | 2.87 | -12.22 | 96.16 | -21.18 | 132.62 | 0.4819 | -1073.6 | -862.1 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -14.71 | 95.92 | -21.42 | 135.98 | 0.5104 | 449.0 | 494.8 | |
| 1.87 | 13.10 | 1.07 | 7.52 | -14.26 | 95.87 | -21.47 | 135.27 | 0.5062 | 972.2 | 591.1 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -15.67 | 95.71 | -21.63 | 137.03 | 0.5226 | 517.0 | 542.1 | |
| 0.00 | 7.04 | 0.00 | 4.12 | -16.56 | 95.54 | -21.80 | 137.99 | 0.5339 | 44.0 | 156.1 | |
| 1.07 | -46.00 | 0.61 | -46.00 | -14.39 | 95.75 | -21.59 | 135.31 | 0.5088 | 788.6 | 999999 | |
| 1.60 | -46.00 | 0.92 | -46.00 | -14.17 | 95.74 | -21.60 | 134.98 | 0.5066 | 692.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -12.33 | 95.88 | -21.46 | 132.42 | 0.4861 | -876.0 | -723.9 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -16.83 | 95.41 | -21.93 | 138.16 | 0.5381 | -204.0 | -166.4 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -13.65 | 95.69 | -21.65 | 134.17 | 0.5017 | 252.0 | 187.5 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -13.98 | 95.49 | -21.85 | 134.38 | 0.5073 | -93.0 | -47.1 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -15.92 | 95.28 | -22.06 | 136.80 | 0.5297 | 579.0 | 496.2 | |
| 3.56 | 530.63 | 2.06 | 309.55 | -14.48 | 95.24 | -22.10 | 134.77 | 0.5152 | 654.6 | -412.5 | |
| 0.00 | 1.96 | 0.00 | 1.11 | -12.32 | 95.32 | -22.02 | 131.67 | 0.4924 | -814.0 | -692.7 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -12.90 | 95.23 | -22.11 | 132.44 | 0.4992 | -827.0 | -700.3 | |
| 0.00 | 1.87 | 0.00 | 1.11 | -17.10 | 94.69 | -22.65 | 137.60 | 0.5479 | -732.0 | -606.0 | |
| 5.35 | -56.00 | 3.10 | -56.00 | -14.69 | 94.95 | -22.39 | 134.69 | 0.5204 | 839.3 | 999999 | |
| 1.25 | -56.00 | 0.72 | -56.00 | -13.42 | 95.08 | -22.26 | 133.03 | 0.5061 | -1034.9 | 999999 | |
| 0.00 | 3.83 | 0.00 | 2.25 | -16.31 | 94.69 | -22.65 | 136.56 | 0.5397 | -542.0 | -352.3 | |
| 2.85 | 5.88 | 1.70 | 3.50 | -17.51 | 94.33 | -23.01 | 137.67 | 0.5558 | -919.8 | -660.4 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -16.32 | 94.41 | -22.93 | 136.24 | 0.5426 | -565.0 | -382.8 | |
| 0.00 | 1.69 | 0.00 | 0.99 | -15.76 | 94.38 | -22.96 | 135.45 | 0.5373 | 732.0 | 577.2 | |
| 0.00 | 2.14 | 0.00 | 1.19 | -7.94 | 95.01 | -22.33 | 123.89 | 0.4551 | -703.0 | -563.9 | |
| 1.78 | -56.00 | 1.04 | -56.00 | -14.38 | 94.07 | -23.27 | 133.14 | 0.5266 | -1139.0 | 999999 | |
| 4.72 | -56.00 | 2.73 | -56.00 | -13.54 | 94.06 | -23.28 | 131.91 | 0.5185 | -1230.1 | 999999 | |
| 12.21 | -56.00 | 7.15 | -56.00 | -15.11 | 93.85 | -23.49 | 133.89 | 0.5362 | 860.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -17.89 | 93.48 | -23.86 | 137.12 | 0.5680 | -777.0 | -610.6 | |
| 5.53 | -56.00 | 3.20 | -56.00 | -13.61 | 93.84 | -23.50 | 131.77 | 0.5216 | -1335.7 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.22 | -17.17 | 93.37 | -23.97 | 136.08 | 0.5617 | -930.0 | -675.7 | |
| 0.00 | 1.96 | 0.00 | 1.19 | -18.61 | 93.16 | -24.18 | 137.64 | 0.5783 | -710.0 | -622.4 | |
| 33.96 | -56.00 | 19.77 | -56.00 | -13.98 | 93.67 | -23.67 | 132.09 | 0.5270 | -1276.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -18.18 | 93.12 | -24.22 | 137.06 | 0.5743 | -585.0 | -639.7 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -12.91 | 93.75 | -23.59 | 130.61 | 0.5159 | -887.0 | -794.8 | |
| 0.00 | 2.23 | 0.00 | 1.34 | -17.41 | 93.17 | -24.18 | 136.15 | 0.5662 | -960.0 | -866.4 | |
| 0.00 | 6.15 | 0.00 | 3.70 | -17.68 | 93.02 | -24.32 | 136.32 | 0.5703 | -595.0 | -667.3 | |
| 4.55 | 45.27 | 2.62 | 26.06 | -12.28 | 93.58 | -23.77 | 129.44 | 0.5119 | -1153.2 | -666.0 | |
| 0.00 | 2.76 | 0.00 | 1.60 | -12.99 | 93.44 | -23.90 | 130.35 | 0.5202 | -822.0 | -811.7 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -17.80 | 92.76 | -24.58 | 136.17 | 0.5740 | -570.0 | -460.8 | |
| 1.07 | -56.00 | 0.62 | -56.00 | -13.55 | 93.27 | -24.07 | 130.99 | 0.5273 | -921.4 | 999999 | |
| 15.33 | -56.00 | 8.98 | -56.00 | -14.21 | 93.03 | -24.31 | 131.65 | 0.5362 | -1145.2 | 999999 | |
| 0.00 | 3.21 | 0.00 | 1.86 | -12.94 | 93.17 | -24.17 | 129.97 | 0.5227 | -868.0 | -742.2 | |
| 6.59 | -79.00 | 3.80 | -79.00 | -11.98 | 93.23 | -24.11 | 128.57 | 0.5131 | -1092.8 | 999999 | |
| 0.71 | -79.00 | 0.41 | -79.00 | -12.27 | 93.20 | -24.14 | 128.98 | 0.5161 | -883.2 | 999999 | |
| 5.61 | -56.00 | 3.28 | -56.00 | -13.89 | 92.96 | -24.38 | 131.12 | 0.5339 | -1081.6 | 999999 | |
| 8.11 | 13.64 | 4.92 | 8.27 | -17.92 | 92.39 | -24.95 | 135.90 | 0.5789 | -990.2 | -661.4 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -12.79 | 92.95 | -24.39 | 129.48 | 0.5239 | -743.0 | -613.2 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -13.05 | 92.89 | -24.46 | 129.80 | 0.5270 | -674.0 | -556.5 | |
| 4.99 | -56.00 | 2.93 | -56.00 | -14.22 | 92.72 | -24.62 | 131.32 | 0.5398 | -1079.3 | 999999 | |
| 2.67 | -56.00 | 1.57 | -56.00 | -13.96 | 92.75 | -24.59 | 130.98 | 0.5370 | -1041.8 | 999999 | |
| 2.50 | -56.00 | 1.47 | -56.00 | -14.36 | 92.60 | -24.74 | 131.37 | 0.5424 | -842.6 | 999999 | |
| 0.71 | -88.00 | 0.43 | -88.00 | -17.87 | 92.12 | -25.22 | 135.52 | 0.5810 | -851.2 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.02 | -17.40 | 92.19 | -25.15 | 135.01 | 0.5758 | -833.0 | -704.8 | |
| 4.55 | -56.00 | 2.67 | -56.00 | -14.07 | 92.57 | -24.77 | 130.92 | 0.5401 | -988.3 | 999999 | |
| 4.55 | 10.34 | 2.77 | 6.31 | -18.11 | 91.98 | -25.36 | 135.67 | 0.5848 | -816.7 | -443.4 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -9.02 | 92.84 | -24.50 | 123.31 | 0.4919 | -786.0 | -637.9 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -12.66 | 92.42 | -24.93 | 128.68 | 0.5288 | -640.0 | -429.3 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -17.46 | 91.69 | -25.65 | 134.53 | 0.5814 | -743.0 | -686.0 | |
| 0.00 | 1.87 | 0.00 | 1.12 | -16.13 | 91.82 | -25.52 | 132.93 | 0.5675 | -841.0 | -730.4 | |
| 0.00 | 1.69 | 0.00 | 1.00 | -12.90 | 91.53 | -25.81 | 128.06 | 0.5411 | -1000.0 | -848.5 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -13.13 | 91.47 | -25.87 | 128.34 | 0.5438 | -787.0 | -586.4 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -18.58 | 90.69 | -26.65 | 134.86 | 0.6020 | -547.0 | -458.4 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -12.63 | 91.36 | -25.98 | 127.46 | 0.5407 | -793.0 | -635.6 | |
| 0.00 | 2.14 | 0.00 | 1.28 | -14.57 | 91.09 | -26.25 | 130.00 | 0.5610 | -783.0 | -642.7 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -12.82 | 91.23 | -26.11 | 127.62 | 0.5439 | -791.0 | -569.9 | |
| 0.00 | 3.83 | 0.00 | 2.25 | -12.38 | 91.25 | -26.09 | 126.97 | 0.5398 | -515.0 | -750.1 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -11.51 | 91.27 | -26.07 | 125.67 | 0.5322 | -652.0 | -517.4 | |
| 0.00 | 3.21 | 0.00 | 1.90 | -13.39 | 90.96 | -26.38 | 128.16 | 0.5519 | -825.0 | -473.9 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -11.84 | 91.13 | -26.21 | 126.03 | 0.5366 | -726.0 | -560.8 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -12.22 | 91.09 | -26.25 | 126.57 | 0.5404 | -589.0 | -499.2 | |
| 0.00 | 2.85 | 0.00 | 1.68 | -12.36 | 90.90 | -26.44 | 126.59 | 0.5437 | -529.0 | -544.9 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -12.81 | 90.85 | -26.49 | 127.21 | 0.5482 | -489.0 | -426.7 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -13.38 | 89.95 | -27.39 | 127.11 | 0.5634 | -521.0 | -452.5 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -14.15 | 89.46 | -27.88 | 127.72 | 0.5755 | -665.0 | -534.8 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -13.48 | 89.44 | -27.90 | 126.74 | 0.5700 | -497.0 | -339.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
