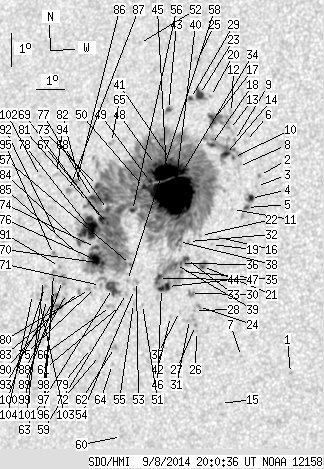

SDO HMI 2014-09-08 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 267.84 | 1470.68 | 154.23 | 848.17 | 15.27 | 87.13 | -30.21 | 72.13 | 0.5124 | 258.6 | -6.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.73 | 10.60 | 92.55 | -24.79 | 80.39 | 0.4198 | -862.0 | -695.9 | |
| 0.00 | 1.43 | 0.00 | 0.80 | 16.54 | 90.79 | -26.55 | 67.88 | 0.4644 | -840.0 | -689.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 16.20 | 90.74 | -26.60 | 68.62 | 0.4637 | -502.0 | -354.1 | |
| 2.94 | 7.66 | 1.64 | 4.28 | 15.83 | 90.58 | -26.76 | 69.49 | 0.4644 | -942.9 | -558.9 | |
| 1.25 | 5.70 | 0.70 | 3.19 | 15.54 | 90.48 | -26.86 | 70.13 | 0.4647 | 635.6 | 479.7 | |
| 0.00 | 1.60 | 0.00 | 0.90 | 17.55 | 90.14 | -27.20 | 66.21 | 0.4782 | -718.0 | -501.3 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 11.02 | 90.84 | -26.50 | 79.80 | 0.4469 | -697.0 | -600.5 | |
| 0.00 | 5.17 | 0.00 | 2.91 | 16.78 | 90.02 | -27.32 | 67.85 | 0.4765 | 231.0 | 286.9 | |
| 0.00 | 1.52 | 0.00 | 0.86 | 17.56 | 89.75 | -27.59 | 66.43 | 0.4837 | -599.0 | -451.2 | |
| 0.62 | 41.44 | 0.35 | 23.49 | 17.04 | 89.80 | -27.54 | 67.44 | 0.4807 | 993.1 | 469.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 15.46 | 90.00 | -27.34 | 70.56 | 0.4714 | -560.0 | -463.9 | |
| 0.00 | 2.85 | 0.00 | 1.62 | 18.41 | 89.50 | -27.84 | 64.92 | 0.4913 | -406.0 | -312.8 | |
| 0.00 | 3.65 | 0.00 | 2.07 | 17.89 | 89.51 | -27.83 | 65.93 | 0.4885 | -248.0 | -212.0 | |
| 4.28 | -10.00 | 2.42 | -10.00 | 17.12 | 89.50 | -27.84 | 67.46 | 0.4852 | 964.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 9.57 | 90.25 | -27.09 | 83.14 | 0.4542 | -757.0 | -495.8 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 14.58 | 89.63 | -27.71 | 72.54 | 0.4737 | -823.0 | -620.1 | |
| 7.40 | 20.85 | 4.22 | 11.88 | 18.16 | 88.89 | -28.45 | 65.77 | 0.4984 | 973.1 | 424.3 | |
| 2.05 | -10.00 | 1.17 | -10.00 | 17.39 | 88.95 | -28.39 | 67.22 | 0.4941 | 970.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 14.35 | 89.41 | -27.93 | 73.10 | 0.4762 | -549.0 | -419.4 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 18.86 | 88.65 | -28.69 | 64.58 | 0.5049 | 736.0 | 612.2 | |
| 1.52 | 6.06 | 0.85 | 3.41 | 13.67 | 89.18 | -28.16 | 74.61 | 0.4775 | -1039.1 | -852.7 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 14.60 | 88.99 | -28.35 | 72.76 | 0.4831 | 704.0 | 485.5 | |
| 5.26 | 8.73 | 3.02 | 5.02 | 18.90 | 88.25 | -29.09 | 64.76 | 0.5106 | 1039.7 | 685.1 | |
| 0.00 | 2.14 | 0.00 | 1.20 | 12.45 | 89.19 | -28.15 | 77.14 | 0.4744 | -978.0 | -862.8 | |
| 0.00 | 1.96 | 0.00 | 1.14 | 19.97 | 87.96 | -29.38 | 62.96 | 0.5197 | 742.0 | 728.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 11.69 | 89.21 | -28.13 | 78.73 | 0.4727 | -786.0 | -610.1 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 11.87 | 89.15 | -28.19 | 78.37 | 0.4739 | -1030.0 | -883.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 12.32 | 89.07 | -28.27 | 77.44 | 0.4760 | -975.0 | -804.2 | |
| 1.25 | 3.48 | 0.72 | 2.00 | 18.76 | 87.94 | -29.40 | 65.19 | 0.5141 | 871.1 | 555.6 | |
| 0.00 | 3.83 | 0.00 | 2.16 | 12.83 | 88.87 | -28.47 | 76.45 | 0.4801 | -844.0 | -754.4 | |
| 0.00 | 5.70 | 0.00 | 3.21 | 12.04 | 88.92 | -28.42 | 78.07 | 0.4776 | -799.0 | -762.0 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 14.40 | 88.59 | -28.75 | 73.34 | 0.4883 | 742.0 | 594.3 | |
| 2.05 | 76.11 | 1.16 | 43.29 | 13.85 | 88.59 | -28.75 | 74.45 | 0.4867 | 921.7 | 30.2 | |
| 4.01 | 1161.69 | 2.30 | 671.04 | 16.51 | 88.05 | -29.29 | 69.40 | 0.5031 | 1363.3 | 31.8 | |
| 0.45 | -33.00 | 0.25 | -33.00 | 13.48 | 88.47 | -28.87 | 75.25 | 0.4876 | 742.2 | 999999 | |
| 0.89 | -33.00 | 0.51 | -33.00 | 13.71 | 88.40 | -28.94 | 74.79 | 0.4892 | 738.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 12.26 | 88.55 | -28.79 | 77.71 | 0.4837 | -783.0 | -628.4 | |
| 1.52 | -34.00 | 0.86 | -34.00 | 14.38 | 88.24 | -29.10 | 73.51 | 0.4934 | 759.9 | 999999 | |
| 0.98 | -33.00 | 0.56 | -33.00 | 13.67 | 88.23 | -29.11 | 74.93 | 0.4916 | 366.5 | 999999 | |
| 110.15 | -34.00 | 63.06 | -34.00 | 15.76 | 87.88 | -29.46 | 70.92 | 0.5028 | 1470.1 | 999999 | |
| 1.07 | -34.00 | 0.62 | -34.00 | 16.85 | 87.56 | -29.78 | 68.98 | 0.5113 | 963.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 12.09 | 88.25 | -29.09 | 78.13 | 0.4878 | -780.0 | -689.1 | |
| 1.43 | 2.76 | 0.83 | 1.60 | 18.37 | 87.21 | -30.13 | 66.31 | 0.5223 | 760.1 | 618.5 | |
| 3.74 | -33.00 | 2.13 | -33.00 | 12.99 | 88.03 | -29.31 | 76.36 | 0.4928 | -803.1 | 999999 | |
| 33.24 | -34.00 | 19.13 | -34.00 | 16.48 | 87.48 | -29.86 | 69.73 | 0.5110 | 1212.5 | 999999 | |
| 2.85 | -33.00 | 1.62 | -33.00 | 12.92 | 87.83 | -29.51 | 76.57 | 0.4957 | -919.7 | 999999 | |
| 3.48 | -33.00 | 1.98 | -33.00 | 13.22 | 87.68 | -29.66 | 76.02 | 0.4985 | -635.7 | 999999 | |
| 1.60 | -34.00 | 0.93 | -34.00 | 16.67 | 87.04 | -30.30 | 69.57 | 0.5178 | 898.1 | 999999 | |
| 1.60 | -34.00 | 0.93 | -34.00 | 16.14 | 86.95 | -30.39 | 70.60 | 0.5172 | 736.1 | 999999 | |
| 1.96 | -34.00 | 1.13 | -34.00 | 15.94 | 86.77 | -30.57 | 71.05 | 0.5192 | 740.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 12.40 | 87.21 | -30.13 | 77.77 | 0.5036 | -805.0 | -669.7 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 20.33 | 85.72 | -31.62 | 63.62 | 0.5510 | 527.0 | 428.7 | |
| 0.00 | 2.23 | 0.00 | 1.28 | 13.08 | 86.91 | -30.43 | 76.50 | 0.5094 | -145.0 | -198.4 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 12.83 | 86.87 | -30.47 | 77.00 | 0.5095 | 432.0 | 339.9 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 12.41 | 86.89 | -30.45 | 77.82 | 0.5084 | -771.0 | -603.1 | |
| 2.14 | -34.00 | 1.24 | -34.00 | 15.22 | 86.45 | -30.89 | 72.54 | 0.5214 | 402.5 | 999999 | |
| 0.45 | -34.00 | 0.26 | -34.00 | 13.58 | 86.62 | -30.72 | 75.61 | 0.5146 | 647.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 13.09 | 86.58 | -30.76 | 76.57 | 0.5141 | -648.0 | -515.2 | |
| 0.00 | 1.52 | 0.00 | 0.87 | 12.69 | 86.60 | -30.74 | 77.33 | 0.5131 | -797.0 | -670.0 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 8.37 | 86.89 | -30.45 | 85.81 | 0.5047 | -646.0 | -519.5 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 12.32 | 86.43 | -30.91 | 78.10 | 0.5149 | -685.0 | -539.1 | |
| 0.00 | 2.85 | 0.00 | 1.64 | 11.04 | 86.38 | -30.96 | 80.60 | 0.5139 | -901.0 | -727.3 | |
| 9.36 | -34.00 | 5.42 | -34.00 | 12.81 | 86.08 | -31.26 | 77.23 | 0.5209 | -1028.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 10.52 | 86.36 | -30.98 | 81.61 | 0.5136 | -727.0 | -539.8 | |
| 0.00 | 3.48 | 0.00 | 2.05 | 17.24 | 85.31 | -32.03 | 69.27 | 0.5437 | 685.0 | 498.3 | |
| 0.00 | 4.10 | 0.00 | 2.37 | 12.26 | 86.08 | -31.26 | 78.27 | 0.5199 | -616.0 | -576.3 | |
| 1.43 | -34.00 | 0.83 | -34.00 | 14.77 | 85.60 | -31.74 | 73.67 | 0.5321 | -1207.5 | 999999 | |
| 1.43 | -34.00 | 0.83 | -34.00 | 15.19 | 85.53 | -31.81 | 72.91 | 0.5342 | -1232.5 | 999999 | |
| 4.28 | -34.00 | 2.51 | -34.00 | 14.88 | 85.40 | -31.94 | 73.53 | 0.5352 | -1317.2 | 999999 | |
| 1.43 | -34.00 | 0.83 | -34.00 | 13.54 | 85.61 | -31.73 | 75.95 | 0.5291 | -1249.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.78 | 12.87 | 85.63 | -31.71 | 77.21 | 0.5275 | -760.0 | -624.3 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 10.76 | 85.87 | -31.47 | 81.20 | 0.5211 | -670.0 | -475.8 | |
| 2.58 | -34.00 | 1.52 | -34.00 | 15.90 | 85.04 | -32.30 | 71.79 | 0.5431 | -767.0 | 999999 | |
| 2.41 | -34.00 | 1.41 | -34.00 | 14.01 | 85.28 | -32.06 | 75.17 | 0.5348 | -1072.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 12.80 | 85.46 | -31.88 | 77.38 | 0.5298 | -679.0 | -618.8 | |
| 9.54 | -34.00 | 5.58 | -34.00 | 13.65 | 85.30 | -32.04 | 75.84 | 0.5337 | -1131.2 | 999999 | |
| 1.96 | -34.00 | 1.16 | -34.00 | 15.52 | 84.92 | -32.42 | 72.51 | 0.5437 | -1086.2 | 999999 | |
| 29.59 | -34.00 | 17.39 | -34.00 | 14.57 | 85.01 | -32.33 | 74.21 | 0.5400 | -1026.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 10.95 | 85.52 | -31.82 | 80.88 | 0.5264 | -546.0 | -447.3 | |
| 0.00 | 5.53 | 0.00 | 3.23 | 12.73 | 85.25 | -32.09 | 77.57 | 0.5327 | -759.0 | -565.5 | |
| 0.98 | -34.00 | 0.58 | -34.00 | 15.36 | 84.80 | -32.54 | 72.85 | 0.5449 | -940.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 15.85 | 84.41 | -32.93 | 72.08 | 0.5516 | -816.0 | -681.6 | |
| 0.00 | 2.23 | 0.00 | 1.31 | 12.64 | 84.90 | -32.44 | 77.80 | 0.5376 | -808.0 | -662.2 | |
| 1.43 | -34.00 | 0.84 | -34.00 | 14.12 | 84.64 | -32.70 | 75.14 | 0.5442 | -683.6 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 13.76 | 84.70 | -32.65 | 75.79 | 0.5426 | -538.0 | -485.3 | |
| 0.62 | 1.78 | 0.37 | 1.06 | 15.97 | 84.24 | -33.10 | 71.94 | 0.5543 | -929.0 | -796.5 | |
| 0.00 | 3.65 | 0.00 | 2.18 | 15.67 | 84.00 | -33.34 | 72.54 | 0.5569 | -768.0 | -622.1 | |
| 0.00 | 1.25 | 0.00 | 0.74 | 12.55 | 84.43 | -32.91 | 78.06 | 0.5441 | -803.0 | -642.6 | |
| 0.00 | 7.58 | 0.00 | 4.48 | 12.94 | 84.23 | -33.11 | 77.40 | 0.5477 | -771.0 | -756.3 | |
| 0.00 | 9.45 | 0.00 | 5.58 | 12.17 | 84.23 | -33.11 | 78.79 | 0.5465 | -882.0 | -660.8 | |
| 0.00 | 1.25 | 0.00 | 0.74 | 13.35 | 84.05 | -33.29 | 76.69 | 0.5509 | -715.0 | -609.7 | |
| 0.00 | 1.25 | 0.00 | 0.74 | 14.25 | 83.83 | -33.51 | 75.12 | 0.5557 | -691.0 | -524.1 | |
| 0.62 | 3.65 | 0.37 | 2.16 | 12.47 | 84.07 | -33.27 | 78.28 | 0.5491 | -894.1 | -642.4 | |
| 0.00 | 1.25 | 0.00 | 0.75 | 16.16 | 83.45 | -33.89 | 71.87 | 0.5657 | -629.0 | -478.6 | |
| 0.00 | 2.67 | 0.00 | 1.59 | 13.70 | 83.78 | -33.56 | 76.12 | 0.5554 | -577.0 | -583.2 | |
| 0.00 | 3.56 | 0.00 | 2.12 | 13.12 | 83.87 | -33.47 | 77.13 | 0.5531 | -559.0 | -567.5 | |
| 0.00 | 2.23 | 0.00 | 1.32 | 12.64 | 83.94 | -33.40 | 77.99 | 0.5513 | -719.0 | -636.2 | |
| 0.00 | 1.25 | 0.00 | 0.74 | 11.85 | 83.98 | -33.36 | 79.42 | 0.5497 | -498.0 | -389.0 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 12.32 | 83.72 | -33.62 | 78.61 | 0.5539 | -436.0 | -367.1 | |
| 0.00 | 2.41 | 0.00 | 1.43 | 12.68 | 83.60 | -33.74 | 77.99 | 0.5562 | -506.0 | -474.4 | |
| 0.00 | 2.76 | 0.00 | 1.65 | 12.89 | 83.53 | -33.81 | 77.63 | 0.5575 | -383.0 | -309.2 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 16.03 | 82.87 | -34.47 | 72.28 | 0.5733 | -629.0 | -511.9 | |
| 0.00 | 3.12 | 0.00 | 1.86 | 12.36 | 83.42 | -33.92 | 78.59 | 0.5582 | -311.0 | -439.5 | |
| 0.00 | 1.60 | 0.00 | 0.96 | 12.44 | 83.19 | -34.16 | 78.49 | 0.5617 | -334.0 | -315.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
