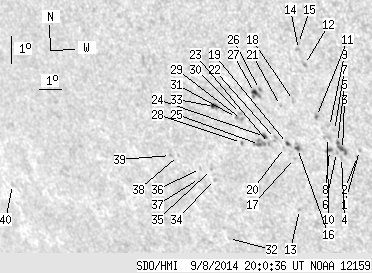

SDO HMI 2014-09-08 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.57 | 77.88 | 9.57 | 55.26 | -20.56 | 80.52 | -36.82 | 128.36 | 0.7167 | 236.5 | 217.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.67 | -20.85 | 83.94 | -33.40 | 131.28 | 0.6868 | 659.0 | 455.5 | |
| 0.00 | 1.25 | 0.00 | 0.85 | -21.06 | 83.81 | -33.53 | 131.42 | 0.6897 | 457.0 | 398.5 | |
| 2.50 | 6.68 | 1.71 | 4.58 | -20.86 | 83.28 | -34.06 | 130.75 | 0.6932 | 888.5 | 649.9 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -21.15 | 83.16 | -34.18 | 130.99 | 0.6964 | 481.0 | 434.7 | |
| 0.45 | -3.00 | 0.31 | -3.00 | -20.64 | 83.14 | -34.20 | 130.38 | 0.6928 | 605.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -20.99 | 83.01 | -34.33 | 130.68 | 0.6967 | 781.0 | 631.5 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -20.23 | 83.13 | -34.21 | 129.89 | 0.6899 | -528.0 | -488.8 | |
| 0.98 | 3.03 | 0.68 | 2.09 | -20.94 | 82.75 | -34.59 | 130.42 | 0.6988 | 731.7 | 591.0 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -20.11 | 82.96 | -34.38 | 129.62 | 0.6906 | -279.0 | -243.8 | |
| 0.00 | 3.12 | 0.00 | 2.14 | -20.49 | 82.79 | -34.55 | 129.93 | 0.6952 | 721.0 | 559.6 | |
| 0.00 | 1.96 | 0.00 | 1.34 | -19.80 | 82.53 | -34.81 | 128.92 | 0.6926 | 732.0 | 603.2 | |
| 0.00 | 1.78 | 0.00 | 1.20 | -18.07 | 82.48 | -34.86 | 126.78 | 0.6807 | 524.0 | 441.4 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -23.11 | 80.91 | -36.43 | 131.47 | 0.7313 | 648.0 | 513.9 | |
| 0.00 | 2.23 | 0.00 | 1.50 | -17.58 | 82.36 | -34.98 | 126.08 | 0.6785 | 749.0 | 600.0 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -17.38 | 82.41 | -34.93 | 125.87 | 0.6766 | 716.0 | 517.7 | |
| 1.34 | 4.46 | 0.94 | 3.13 | -20.97 | 81.47 | -35.87 | 129.47 | 0.7111 | 810.2 | 638.3 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -21.33 | 81.25 | -36.09 | 129.71 | 0.7157 | 569.0 | 498.8 | |
| 0.00 | 2.58 | 0.00 | 1.78 | -19.33 | 81.75 | -35.59 | 127.75 | 0.6969 | -592.0 | -470.3 | |
| 0.80 | 2.41 | 0.57 | 1.70 | -20.83 | 81.11 | -36.23 | 129.03 | 0.7135 | 566.8 | 418.8 | |
| 0.00 | 1.60 | 0.00 | 1.13 | -20.98 | 80.95 | -36.39 | 129.08 | 0.7161 | 362.0 | 409.9 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -19.54 | 81.18 | -36.16 | 127.57 | 0.7039 | -770.0 | -624.1 | |
| 0.00 | 2.94 | 0.00 | 2.08 | -20.69 | 80.66 | -36.68 | 128.55 | 0.7168 | 691.0 | 458.0 | |
| 0.00 | 1.52 | 0.00 | 1.08 | -20.89 | 80.37 | -36.97 | 128.56 | 0.7209 | 534.0 | 494.8 | |
| 1.43 | 2.50 | 1.02 | 1.78 | -20.66 | 80.23 | -37.11 | 128.19 | 0.7207 | 625.6 | 515.8 | |
| 1.16 | 7.40 | 0.83 | 5.30 | -20.95 | 79.94 | -37.40 | 128.33 | 0.7254 | 563.0 | 460.8 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -19.06 | 80.47 | -36.87 | 126.48 | 0.7077 | -898.0 | -751.5 | |
| 2.05 | 6.06 | 1.44 | 4.25 | -19.18 | 80.24 | -37.10 | 126.46 | 0.7107 | -818.7 | -687.6 | |
| 0.36 | 1.34 | 0.26 | 0.97 | -20.95 | 79.20 | -38.14 | 127.80 | 0.7322 | 491.8 | 390.2 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -20.15 | 79.44 | -37.90 | 127.04 | 0.7248 | -518.0 | -495.1 | |
| 0.00 | 1.60 | 0.00 | 1.15 | -19.94 | 79.46 | -37.88 | 126.81 | 0.7233 | -844.0 | -698.5 | |
| 0.00 | 1.25 | 0.00 | 0.90 | -20.10 | 79.25 | -38.09 | 126.85 | 0.7263 | -880.0 | -760.1 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -24.40 | 77.47 | -39.87 | 130.47 | 0.7697 | 554.0 | 454.1 | |
| 2.50 | 3.92 | 1.81 | 2.84 | -19.79 | 78.43 | -38.91 | 125.94 | 0.7322 | -747.2 | -653.8 | |
| 0.00 | 1.43 | 0.00 | 1.07 | -22.34 | 77.62 | -39.72 | 128.31 | 0.7555 | 651.0 | 515.2 | |
| 0.00 | 0.53 | 0.00 | 0.40 | -22.00 | 77.61 | -39.73 | 127.92 | 0.7535 | 651.0 | 539.8 | |
| 0.00 | 1.07 | 0.00 | 0.81 | -22.01 | 77.14 | -40.20 | 127.61 | 0.7578 | 579.0 | 528.4 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -22.36 | 76.97 | -40.37 | 127.90 | 0.7615 | 372.0 | 351.6 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -21.63 | 76.32 | -41.02 | 126.67 | 0.7629 | 450.0 | 377.4 | |
| 0.00 | 0.98 | 0.00 | 0.75 | -21.66 | 75.96 | -41.38 | 126.48 | 0.7663 | 548.0 | 424.5 | |
| 0.00 | 1.60 | 0.00 | 1.47 | -23.43 | 67.81 | -49.53 | 123.94 | 0.8434 | -375.0 | -322.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
