SDO HMI 2014-09-08 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.33 | 15.60 | 0.68 | 8.06 | 13.63 | 131.92 | 15.13 | 293.85 | 0.2820 | -116.0 | -64.6 | |
|
previous
or next observation for the same group /

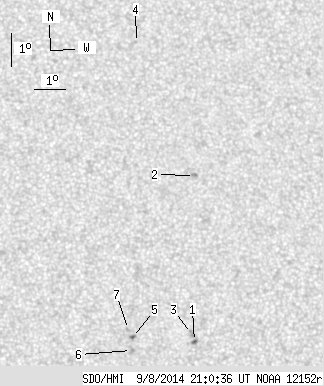

back to the solar disc SDO HMI 2014-09-08 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.80 | 1.87 | 0.41 | 0.97 | 12.27 | 132.90 | 16.12 | 288.77 | 0.2878 | -1115.1 | -928.2 | |
| 0.00 | 2.50 | 0.00 | 1.31 | 17.31 | 133.30 | 16.52 | 303.50 | 0.3269 | -919.0 | -791.1 | |
| 0.00 | 2.85 | 0.00 | 1.47 | 12.51 | 132.82 | 16.04 | 289.67 | 0.2877 | -608.0 | -590.5 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 21.48 | 131.79 | 15.01 | 316.03 | 0.3485 | -716.0 | -528.8 | |
| 0.53 | 1.52 | 0.27 | 0.78 | 12.45 | 130.93 | 14.14 | 291.57 | 0.2577 | 951.7 | 823.2 | |
| 0.00 | 4.19 | 0.00 | 2.15 | 12.06 | 130.88 | 14.09 | 290.17 | 0.2548 | 941.0 | 555.0 | |
| 0.00 | 1.87 | 0.00 | 0.96 | 12.70 | 130.82 | 14.03 | 292.62 | 0.2573 | 775.0 | 586.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
