SDO HMI 2014-09-08 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.41 | 217.31 | 29.55 | 122.73 | -19.83 | 107.11 | -9.68 | 160.80 | 0.4832 | 653.5 | 441.7 | |
|
previous
or next observation for the same group /

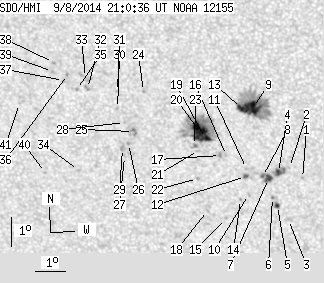

back to the solar disc SDO HMI 2014-09-08 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.39 | 109.98 | -6.81 | 167.02 | 0.4932 | 664.0 | 558.5 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -21.02 | 109.57 | -7.21 | 166.08 | 0.4891 | 770.0 | 721.0 | |
| 0.00 | 3.12 | 0.00 | 1.80 | -22.82 | 109.45 | -7.34 | 166.75 | 0.5160 | 789.0 | 415.3 | |
| 2.58 | 19.52 | 1.47 | 11.11 | -21.20 | 109.21 | -7.58 | 165.49 | 0.4931 | 967.1 | 690.3 | |
| 1.52 | 2.67 | 0.87 | 1.54 | -22.34 | 109.11 | -7.68 | 165.93 | 0.5101 | -491.2 | -382.2 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -22.07 | 108.96 | -7.83 | 165.52 | 0.5067 | 642.0 | 539.3 | |
| 3.30 | -4.00 | 1.88 | -4.00 | -21.41 | 108.87 | -7.92 | 165.00 | 0.4975 | 835.3 | 999999 | |
| 0.62 | -4.00 | 0.36 | -4.00 | -21.34 | 108.67 | -8.11 | 164.61 | 0.4973 | 905.0 | 999999 | |
| 16.76 | 68.27 | 9.36 | 38.10 | -19.00 | 108.48 | -8.31 | 162.79 | 0.4637 | 1149.3 | 540.6 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -21.98 | 108.18 | -8.61 | 164.09 | 0.5085 | 669.0 | 537.5 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -21.08 | 108.17 | -8.62 | 163.54 | 0.4955 | 629.0 | 577.5 | |
| 0.98 | 2.32 | 0.56 | 1.32 | -21.36 | 108.12 | -8.67 | 163.62 | 0.4997 | 886.6 | 731.9 | |
| 4.01 | -9.00 | 2.24 | -9.00 | -19.04 | 108.12 | -8.67 | 162.12 | 0.4660 | 898.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -22.15 | 107.90 | -8.89 | 163.71 | 0.5122 | 723.0 | 579.3 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -22.83 | 107.39 | -9.39 | 163.24 | 0.5239 | 695.0 | 525.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.65 | 107.54 | -9.25 | 162.13 | 0.4921 | 748.0 | 659.8 | |
| 0.00 | 1.87 | 0.00 | 1.06 | -20.65 | 107.34 | -9.45 | 161.78 | 0.4930 | 1040.0 | 861.4 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -22.56 | 106.78 | -10.01 | 162.05 | 0.5229 | 758.0 | 588.4 | |
| 5.17 | 72.73 | 2.93 | 41.10 | -20.08 | 106.89 | -9.90 | 160.56 | 0.4871 | 849.5 | 545.4 | |
| 17.47 | -19.00 | 9.88 | -19.00 | -19.81 | 106.71 | -10.08 | 160.04 | 0.4842 | 1197.7 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.17 | -20.50 | 106.63 | -10.16 | 160.40 | 0.4943 | 442.0 | 384.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.46 | 106.53 | -10.26 | 160.90 | 0.5085 | 613.0 | 509.3 | |
| 0.00 | 2.67 | 0.00 | 1.52 | -20.33 | 106.51 | -10.27 | 160.06 | 0.4925 | 715.0 | 548.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -18.54 | 104.97 | -11.81 | 155.84 | 0.4761 | 901.0 | 755.2 | |
| 0.00 | 4.37 | 0.00 | 2.49 | -19.90 | 104.54 | -12.24 | 156.28 | 0.4976 | 915.0 | 849.4 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -20.31 | 104.35 | -12.44 | 156.29 | 0.5045 | 913.0 | 832.6 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -20.76 | 104.18 | -12.61 | 156.38 | 0.5116 | 686.0 | 540.4 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -19.60 | 104.27 | -12.51 | 155.55 | 0.4952 | 879.0 | 680.0 | |
| 0.00 | 3.48 | 0.00 | 2.00 | -20.49 | 104.13 | -12.65 | 156.08 | 0.5082 | 751.0 | 695.4 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -19.14 | 104.08 | -12.71 | 154.80 | 0.4900 | 796.0 | 526.9 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.56 | 104.13 | -12.66 | 154.34 | 0.4819 | 710.0 | 596.6 | |
| 0.00 | 2.41 | 0.00 | 1.36 | -18.49 | 103.15 | -13.64 | 152.58 | 0.4876 | -538.0 | -528.7 | |
| 0.00 | 5.79 | 0.00 | 3.27 | -18.12 | 103.11 | -13.67 | 152.15 | 0.4829 | -644.0 | -644.9 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -21.29 | 102.60 | -14.19 | 154.28 | 0.5285 | -689.0 | -451.1 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -18.54 | 102.79 | -14.00 | 152.01 | 0.4907 | -622.0 | -510.6 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -18.04 | 102.53 | -14.26 | 151.07 | 0.4860 | -877.0 | -749.0 | |
| 0.00 | 1.78 | 0.00 | 1.01 | -18.25 | 102.38 | -14.40 | 151.03 | 0.4898 | -536.0 | -523.8 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -17.66 | 102.11 | -14.68 | 149.94 | 0.4841 | -893.0 | -822.9 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -17.96 | 102.05 | -14.74 | 150.17 | 0.4885 | -823.0 | -721.3 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -21.40 | 101.48 | -15.31 | 152.65 | 0.5372 | -708.0 | -579.6 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -19.07 | 100.85 | -15.93 | 149.41 | 0.5119 | -622.0 | -552.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
