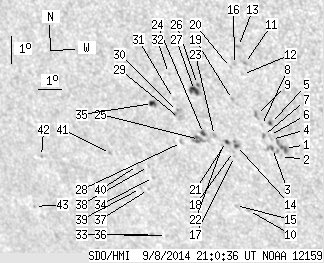

SDO HMI 2014-09-08 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.09 | 85.11 | 9.83 | 59.97 | -20.58 | 80.45 | -36.34 | 128.71 | 0.7125 | 180.0 | 222.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-08 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.78 | 8.20 | 1.21 | 5.58 | -20.91 | 83.38 | -33.41 | 131.34 | 0.6874 | 893.7 | 632.8 | |
| 0.00 | 1.25 | 0.00 | 0.85 | -21.20 | 83.15 | -33.64 | 131.49 | 0.6918 | 462.0 | 430.4 | |
| 0.45 | 3.39 | 0.30 | 2.32 | -20.95 | 82.90 | -33.89 | 131.00 | 0.6922 | 749.6 | 533.7 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -20.64 | 82.94 | -33.85 | 130.67 | 0.6895 | 595.0 | 465.7 | |
| 0.71 | 1.78 | 0.48 | 1.21 | -20.09 | 83.04 | -33.75 | 130.10 | 0.6844 | -658.4 | -509.0 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -20.51 | 82.90 | -33.89 | 130.48 | 0.6889 | 740.0 | 745.3 | |
| 0.00 | 1.78 | 0.00 | 1.22 | -20.53 | 82.66 | -34.13 | 130.31 | 0.6913 | 600.0 | 506.8 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -20.19 | 82.67 | -34.12 | 129.92 | 0.6887 | 496.0 | 409.1 | |
| 0.00 | 2.76 | 0.00 | 1.88 | -19.82 | 82.56 | -34.22 | 129.40 | 0.6870 | 758.0 | 595.7 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -23.20 | 81.31 | -35.48 | 132.30 | 0.7235 | 575.0 | 477.9 | |
| 0.00 | 1.78 | 0.00 | 1.19 | -18.12 | 82.50 | -34.29 | 127.29 | 0.6753 | 742.0 | 545.8 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -18.50 | 82.34 | -34.45 | 127.63 | 0.6796 | 518.0 | 370.5 | |
| 0.00 | 1.69 | 0.00 | 1.13 | -17.57 | 82.40 | -34.39 | 126.52 | 0.6724 | 772.0 | 645.9 | |
| 0.98 | 3.12 | 0.68 | 2.17 | -20.95 | 81.48 | -35.31 | 129.88 | 0.7057 | 832.4 | 662.5 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -23.07 | 80.82 | -35.96 | 131.78 | 0.7269 | 388.0 | 399.5 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -18.18 | 82.10 | -34.69 | 127.06 | 0.6798 | 405.0 | 321.9 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -21.34 | 81.29 | -35.49 | 130.19 | 0.7102 | 474.0 | 458.8 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -21.17 | 81.30 | -35.49 | 130.00 | 0.7089 | 474.0 | 492.3 | |
| 0.00 | 1.52 | 0.00 | 1.04 | -19.38 | 81.74 | -35.05 | 128.23 | 0.6920 | -789.0 | -588.0 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -18.30 | 81.92 | -34.87 | 127.06 | 0.6824 | 394.0 | 323.0 | |
| 1.25 | 2.50 | 0.87 | 1.75 | -20.85 | 81.11 | -35.67 | 129.48 | 0.7084 | 610.4 | 484.9 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -21.00 | 80.91 | -35.88 | 129.50 | 0.7114 | 320.0 | 346.4 | |
| 0.00 | 2.05 | 0.00 | 1.44 | -20.68 | 80.68 | -36.11 | 128.95 | 0.7113 | 547.0 | 414.9 | |
| 1.43 | 2.94 | 1.01 | 2.08 | -20.64 | 80.25 | -36.54 | 128.60 | 0.7152 | 715.8 | 469.6 | |
| 0.00 | 8.73 | 0.00 | 6.20 | -20.86 | 80.02 | -36.76 | 128.69 | 0.7188 | 713.0 | 496.4 | |
| 0.36 | 1.25 | 0.25 | 0.86 | -18.98 | 80.46 | -36.33 | 126.78 | 0.7018 | -813.0 | -651.8 | |
| 4.55 | 7.04 | 3.17 | 4.90 | -19.19 | 80.28 | -36.51 | 126.91 | 0.7050 | -842.7 | -618.5 | |
| 0.00 | 2.05 | 0.00 | 1.47 | -21.03 | 79.24 | -37.54 | 128.32 | 0.7272 | 381.0 | 353.7 | |
| 0.00 | 2.41 | 0.00 | 1.71 | -20.20 | 79.40 | -37.38 | 127.47 | 0.7203 | -474.0 | -478.6 | |
| 0.00 | 4.63 | 0.00 | 3.29 | -19.97 | 79.39 | -37.40 | 127.19 | 0.7188 | -796.0 | -674.4 | |
| 0.00 | 1.34 | 0.00 | 0.95 | -19.53 | 79.35 | -37.44 | 126.65 | 0.7164 | -360.0 | -358.9 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -18.70 | 79.37 | -37.42 | 125.66 | 0.7107 | -604.0 | -577.8 | |
| 0.00 | 1.34 | 0.00 | 1.02 | -24.38 | 77.49 | -39.30 | 130.84 | 0.7648 | 589.0 | 456.1 | |
| 0.00 | 1.16 | 0.00 | 0.87 | -22.36 | 77.66 | -39.13 | 128.72 | 0.7504 | 656.0 | 515.0 | |
| 2.58 | 4.01 | 1.86 | 2.88 | -19.78 | 78.42 | -38.36 | 126.29 | 0.7269 | -717.2 | -625.8 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -24.40 | 76.88 | -39.91 | 130.45 | 0.7700 | 527.0 | 447.8 | |
| 0.00 | 0.98 | 0.00 | 0.74 | -22.80 | 77.29 | -39.49 | 128.97 | 0.7564 | 546.0 | 473.2 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -21.99 | 77.57 | -39.22 | 128.25 | 0.7488 | 583.0 | 530.6 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -22.80 | 76.95 | -39.83 | 128.74 | 0.7594 | 345.0 | 224.2 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -21.99 | 77.10 | -39.68 | 127.94 | 0.7531 | 661.0 | 528.3 | |
| 0.00 | 1.34 | 0.00 | 1.02 | -21.67 | 76.06 | -40.73 | 126.90 | 0.7605 | 422.0 | 332.2 | |
| 0.00 | 1.16 | 0.00 | 0.93 | -22.06 | 72.87 | -43.92 | 125.40 | 0.7909 | -527.0 | -430.5 | |
| 0.00 | 0.80 | 0.00 | 0.67 | -23.89 | 71.78 | -45.01 | 126.78 | 0.8095 | -583.0 | -547.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
